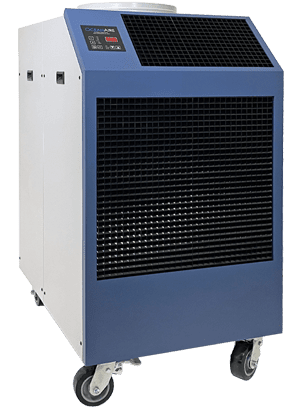

Oceanaire 2OAC6012 Series: 5-Ton Deluxe Spot Cooler
$11,000.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OAC6012 Series 5-Ton Portable Spot Cooler delivers 60,100 BTU/hr of cooling for manufacturing facilities, warehouses, server rooms, and commercial applications. Available in three electrical configurations, each model includes a 5 HP scroll compressor and built-in condensate pump.
Key Specifications:
- Cooling: 60,100 BTU/hr (5 Tons)
- Electrical: 208–230V Single-Phase, 208–230V Three-Phase, or 460V Three-Phase
- Airflow: 1,950 CFM
- Compressor: 5 HP Scroll
- Condensate Pump: Built-In, 20′ Lift
Select Your Model:
- 2OAC6012: 208–230V / 1-Phase / NEMA 6-50P
- 2OAC6032: 208–230V / 3-Phase / NEMA L15-30P
- 2OAC6034: 460V / 3-Phase / NEMA L16-20P
Browse Portable HVAC Accessories
Nationwide shipping available. Contact us for pricing and availability.

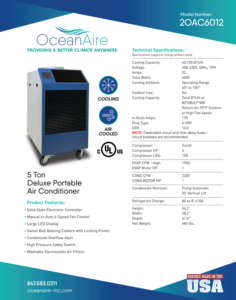

Resources and Downloads
The OceanAire 2OAC6012 Series 5-Ton Portable Air Conditioner delivers 60,100 BTU/hr of cooling for commercial, industrial, and temporary HVAC applications. Designed for high-capacity spot cooling, this deluxe air-cooled portable air conditioner is ideal for manufacturing facilities, warehouses, server rooms, equipment rooms, commercial buildings, and emergency cooling projects.
Available in 208–230V single-phase, 208–230V three-phase, and 460V three-phase configurations, the 2OAC 5-ton series provides electrical flexibility for facilities with different power requirements.
Each configuration features a 5 HP scroll compressor, 1,950 CFM of conditioned airflow, electronic temperature controls, washable electrostatic filters, and a built-in automatic condensate pump with up to 20 feet of vertical lift.
The air-cooled design eliminates the need for condenser water connections. Optional ducting accessories help direct warm condenser discharge away from the conditioned area.
Key Features of the OceanAire 2OAC6012 Series
- 60,100 BTU/hr Cooling Capacity: Provides approximately 5 tons of cooling for commercial and industrial applications.
- Three Electrical Configurations: Available in 208–230V single-phase, 208–230V three-phase, and 460V three-phase versions.
- 5 HP Scroll Compressor: Provides commercial-grade refrigeration performance.
- 1,950 CFM Evaporator Airflow: Delivers conditioned airflow for targeted spot cooling.
- 2,200 CFM Condenser Airflow: Supports the air-cooled refrigeration system.
- Built-In Condensate Pump: Automatically removes condensation with up to 20 feet of vertical lift.
- Electronic Temperature Controls: Solid-state controller with a large LED display.
- Six-Speed Fan Control: Automatic and manual airflow adjustments.
- Air-Cooled Operation: Requires no condenser water hookup.
- Optional Condenser Exhaust Ducting: Supports compatible ceiling kits, discharge adapters, and return-air plenums.
- Portable Construction: Heavy-duty swivel casters with locking front wheels.
- Washable Electrostatic Filters: Removable filters simplify routine cleaning.
- Safety Features: High-pressure protection, condensate overflow alert, and three-phase monitoring on applicable models.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The OceanAire 2OAC6012 Series is not approved for outdoor operation.
Available Models and Electrical Configurations
The OceanAire 5-ton deluxe spot cooler series includes three configurations designed for different electrical installations.
OceanAire 2OAC6012 — 208–230V Single Phase
The 2OAC6012 is designed for facilities with compatible 208–230V single-phase electrical service.
This version is particularly useful for commercial buildings requiring approximately 5 tons of cooling without three-phase power.
Electrical Specifications:
- Power: 208–230V / 60Hz / Single Phase
- Rated current: 32 amps
- Inrush current: 178 amps
- Plug: NEMA 6-50P
- Net weight: 485 lbs
A compatible NEMA 6-50 receptacle and properly rated electrical circuit are required.
OceanAire 2OAC6032 — 208–230V Three Phase
The 2OAC6032 provides the same published 60,100 BTU/hr cooling capacity in a three-phase electrical configuration.
It is designed for commercial and industrial facilities equipped with compatible 208–230V three-phase electrical service.
Electrical Specifications:
- Power: 208–230V / 60Hz / Three Phase
- Rated current: 20.4 amps
- Inrush current: 162 amps
- Plug: NEMA L15-30P
- Net weight: 485 lbs
This configuration uses a locking NEMA electrical connection rather than a standard hardwired connection.
OceanAire 2OAC6034 — 460V Three Phase
The 2OAC6034 is designed for facilities equipped with 460V three-phase electrical service.
It provides 5-ton cooling capacity for manufacturing facilities, industrial equipment rooms, and other commercial applications requiring higher-voltage equipment.
Electrical Specifications:
- Power: 460V / 60Hz / Three Phase
- Rated current: 14.8 amps
- Inrush current: 87 amps
- Plug: NEMA L16-20P
- Net weight: 520 lbs
The 460V model uses a locking NEMA L16-20P plug and requires compatible electrical service.
Common Applications for the OceanAire 5-Ton Spot Cooler Series
Server Rooms and Data Centers
Server rooms, networking equipment, and telecommunications facilities generate heat during continuous operation.
The OceanAire 2OAC6012 Series provides temporary or supplemental cooling for appropriate IT environments.
With 60,100 BTU/hr of cooling capacity and 1,950 CFM of conditioned airflow, these units can support equipment cooling during:
- Permanent HVAC maintenance
- Emergency cooling failures
- Server-room expansions
- Equipment replacement
- IT infrastructure upgrades
Because the units are air-cooled, warm condenser air must be routed away from the conditioned space.
Proper cooling-load calculations, electrical service, airflow distribution, and condensate management should be evaluated before installation.
For more information, read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Warehouses and Manufacturing Facilities
Manufacturing facilities and warehouses often generate concentrated heat around production equipment and industrial workstations.
The OceanAire 5-ton series can provide localized cooling for:
- Manufacturing equipment
- Industrial workstations
- Packaging and assembly areas
- Equipment maintenance rooms
- Production facilities
- Warehouse operations
Optional directional nozzle kits allow conditioned airflow to be aimed toward specific cooling locations.
Commercial Buildings and Institutional Facilities
Commercial buildings, retail facilities, offices, and institutional properties may require additional cooling during peak demand or HVAC maintenance.
The OceanAire 2OAC series provides portable cooling for suitable indoor applications without requiring a permanent air conditioning system installation.
Its available single-phase and three-phase configurations allow customers to select equipment based on the facility’s electrical service.
Emergency and Temporary HVAC Applications
Unexpected air conditioning failures can interrupt operations and expose sensitive equipment to elevated temperatures.
The OceanAire 5-ton series can provide supplemental or temporary cooling during planned maintenance, renovations, equipment replacement, and emergency HVAC projects.
Its portable construction allows equipment to be repositioned as project requirements change.
Explore Commercial Climate Control Solutions
OceanAire 2OAC6012 Series Technical Specifications
| Specification | 2OAC6012 | 2OAC6032 | 2OAC6034 |
|---|---|---|---|
| Cooling Capacity | 60,100 BTU/hr | 60,100 BTU/hr | 60,100 BTU/hr |
| Nominal Capacity | 5 Tons | 5 Tons | 5 Tons |
| Electrical | 208–230V / 1-Phase | 208–230V / 3-Phase | 460V / 3-Phase |
| Rated Current | 32A | 20.4A | 14.8A |
| Inrush Current | 178A | 162A | 87A |
| Plug Type | NEMA 6-50P | NEMA L15-30P | NEMA L16-20P |
| Total Power | 6,000W | 6,000W | 6,000W |
| EER | 10.0 | 10.0 | 10.0 |
| Compressor | Scroll | Scroll | Scroll |
| Compressor HP | 5 HP | 5 HP | 5 HP |
| Compressor LRA | 158A | 137A | 60A |
| Evaporator Airflow | 1,950 CFM | 1,950 CFM | 1,950 CFM |
| Condenser Airflow | 2,200 CFM | 2,200 CFM | 2,200 CFM |
| Evaporator Motor | 1 HP | 1 HP | 1 HP |
| Condenser Motor | 1 HP | 1 HP | 1 HP |
| Refrigerant — Referenced Configuration | R-410A | R-410A | R-410A |
| Refrigerant Charge | 80 oz | 80 oz | 80 oz |
| Condensate Pump | Built-In | Built-In | Built-In |
| Pump Vertical Lift | 20 ft | 20 ft | 20 ft |
| Cooling Ambient Range | 65°F–105°F | 65°F–105°F | 65°F–105°F |
| Width | 28.2″ | 28.2″ | 28.2″ |
| Depth | 41″ | 41″ | 41″ |
| Height | 54.2″ | 54.2″ | 54.2″ |
| Net Weight | 485 lbs | 485 lbs | 520 lbs |
| Outdoor Use | Not Approved | Not Approved | Not Approved |
Specifications are based on OceanAire’s published R-410A model configurations and may change. Confirm the refrigerant, electrical specifications, and equipment configuration for current production units.
Electrical Installation Requirements
The 2OAC6012 Series is available in three electrical configurations.
Each version requires a compatible receptacle, properly rated circuit, and appropriate electrical protection.
Electrical Connection Comparison
| Model | Plug | Matching Receptacle |
|---|---|---|
| 2OAC6012 | NEMA 6-50P | NEMA 6-50R |
| 2OAC6032 | NEMA L15-30P | NEMA L15-30R |
| 2OAC6034 | NEMA L16-20P | NEMA L16-20R |
The single-phase model requires a 50-amp-style NEMA receptacle, while the three-phase models use locking plug configurations.
OceanAire recommends a dedicated electrical circuit with appropriate time-delay fuses or circuit breakers.
Electrical requirements must be confirmed against the unit nameplate and the manufacturer’s installation instructions.
The three electrical configurations are not interchangeable. Select the model that matches your available voltage and phase.
Condenser Exhaust and Airflow Requirements
The OceanAire 2OAC6012 Series uses an air-cooled condenser.
During operation, the refrigeration system removes heat from the conditioned space and rejects it through a separate condenser airflow stream.
For effective cooling, condenser heat must be discharged away from the area receiving conditioned air.
Unlike water-cooled air conditioners, these units do not require a condenser water supply or return connection.
However, they still require an appropriate condenser air discharge arrangement.
Condenser Exhaust Ducting
Optional ceiling kits, duct adapters, and return-air plenums are available to support different installation requirements.
The receiving area must be suitable for the discharged condenser heat and airflow.
Duct length, fittings, temperature ratings, and static pressure restrictions must remain within the manufacturer’s requirements.
Conditioned Air Distribution
The 2OAC 5-ton series provides up to 1,950 CFM of evaporator airflow.
Optional directional nozzle kits can be used to concentrate conditioned air toward equipment, workstations, and other localized cooling areas.
Built-In Condensate Pump
All three 5-ton configurations include an automatic internal condensate pump.
The pump provides up to 20 feet of vertical lift and includes a condensate overflow alert.
This reduces the need for manual collection and disposal of condensate during extended cooling operations.
Collected condensate must be routed to an appropriate drainage location.
A separate external condensate pump is generally unnecessary for standard installations within the built-in pump’s capabilities.
Optional Accessories for the OceanAire 2OAC6012 Series
OceanAire offers model-specific accessories to support condenser exhaust routing, directional air distribution, and ducted return-air installations.
OceanAire 16-Inch Ceiling Panel Kit — CK-16
The CK-16 ceiling panel kit supports installations requiring condenser discharge through a compatible suspended ceiling arrangement.
This accessory is useful for server rooms, commercial buildings, and equipment spaces where an appropriate overhead condenser exhaust path is available.
Manufacturer Part Number: CK-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Dual 8-Inch Nozzle Kit — 2NK-3
The optional 2NK-3 nozzle kit provides two 8-inch directional air outlets for spot cooling.
This accessory allows conditioned air to be directed toward machinery, workstations, and equipment requiring additional cooling.
Manufacturer Part Number: 2NK-3
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — DEP-16
The DEP-16 return-air plenum supports installations requiring return air to be ducted back to the evaporator.
This can provide additional flexibility when the cooling equipment is positioned away from the area being conditioned.
Manufacturer Part Number: DEP-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-16
The 2DDA-16 discharge duct adapter supports compatible extended duct arrangements.
The appropriate connection, duct length, and airflow requirements should be confirmed before ordering.
Manufacturer Part Number: 2DDA-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — DCP-5
The DCP-5 condenser return-air plenum supports installations requiring ducted air to the condenser inlet.
This can be useful for specialized temporary cooling installations where condenser airflow must be controlled.
Manufacturer Part Number: DCP-5
Contact Climate Control Solutions for pricing and availability.
16-Inch × 25-Foot Flexible Ducting
Climate Control Solutions supplies 16-inch flexible ducting for compatible commercial HVAC applications.
The correct OceanAire adapter, temperature rating, permitted length, and connection arrangement must be confirmed before ordering.
Browse Portable HVAC Accessories
Why Choose the OceanAire 2OAC6012 Series?
The OceanAire 2OAC6012 Series combines 60,100 BTU/hr cooling capacity with three electrical configurations, allowing customers to select a model for their facility’s available electrical service.
All three versions feature a 5 HP scroll compressor, 1,950 CFM of conditioned airflow, a built-in automatic condensate pump, and electronic temperature controls.
Its heavy-duty casters, washable filters, and compatible ducting accessories provide flexibility for temporary and supplemental commercial cooling.
Compare Other Commercial Portable Air Conditioners
Climate Control Solutions offers additional portable cooling equipment for different capacities and applications.
- OceanAire 2OAC3612 Series – 3-Ton Deluxe Spot Cooler — Smaller-capacity cooling option with multiple electrical configurations.
- OceanAire 2OACH6012 Series – 5-Ton Portable Heat Pumps — Heating and cooling alternatives.
- OceanAire OWC6012 – 5-Ton Water-Cooled Portable AC — Water-cooled alternative for locations where conventional condenser exhaust ducting is impractical.
Browse All Portable Air-Cooled Units
Frequently Asked Questions About the OceanAire 2OAC6012 Series
How much cooling capacity does the OceanAire 2OAC6012 Series provide?
All three models deliver 60,100 BTU/hr of nominal cooling capacity, approximately 5 tons.
What is the difference between 2OAC6012, 2OAC6032, and 2OAC6034?
The primary difference is the electrical configuration.
The 2OAC6012 uses 208–230V single-phase power, the 2OAC6032 uses 208–230V three-phase power, and the 2OAC6034 uses 460V three-phase power.
The models also have different current ratings, plug types, and, in the case of the 460V model, equipment weight.
Are the three-phase models hardwired?
No. OceanAire’s published configurations use locking NEMA plugs.
The 2OAC6032 uses a NEMA L15-30P plug, and the 2OAC6034 uses a NEMA L16-20P plug.
Does the 2OAC6012 Series provide heating?
No. The 2OAC Series is cooling-only.
For both heating and cooling, OceanAire offers the separate 2OACH portable heat pump series.
Does the 2OAC6012 Series include a condensate pump?
Yes. All three 5-ton configurations include a built-in automatic condensate pump with up to 20 feet of vertical lift.
Does this unit require a water connection?
No. The 2OAC6012 Series uses an air-cooled condenser and does not require a condenser water supply.
Does the unit require exhaust ducting?
The condenser requires an appropriate way to reject heat away from the conditioned area. Depending on the installation, compatible exhaust ducting or a ceiling kit may be needed.
Can these units cool a server room?
Yes. They can provide temporary or supplemental cooling for properly sized server rooms with appropriate electrical service, condenser heat rejection, and condensate drainage.
Are these units approved for outdoor operation?
No. OceanAire specifies that the 2OAC6012, 2OAC6032, and 2OAC6034 are not approved for outdoor use.
What refrigerant does the 2OAC6012 Series use?
The referenced manufacturer specifications list R-410A. Confirm the refrigerant on the current production unit, because newer OceanAire R-454B documentation is also available.
What warranty does the OceanAire 2OAC6012 Series include?
OceanAire provides a 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OAC6012 Series from Climate Control Solutions
Climate Control Solutions supplies OceanAire commercial portable air conditioners, industrial spot coolers, and temporary cooling equipment nationwide.
Whether you need the 208–230V single-phase model, 208–230V three-phase configuration, or 460V three-phase version, our team can help confirm the appropriate electrical requirements, accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, model availability, and bulk-order quotes.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Related products
Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
