Oceanaire OPACH6012AH – 5-Ton Vertical Heat Pump with Auxiliary Electric Heat (230V, Single Phase)
$19,999.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire OPACH6012AH 5-Ton Outdoor Portable Heat Pump delivers 60,300 BTU/hr of cooling and 37,600 BTU/hr of heat-pump heating, with supplemental electric heat for commercial, industrial, and temporary HVAC applications.
Key Specifications:
- Cooling: 60,300 BTU/hr (5 Tons)
- Heating: 37,600 BTU/hr + Auxiliary Electric Heat
- Electrical: 208–230V / Single Phase
- Airflow: 1,700 CFM
- Duct Connections: One 12″ Supply / Two 12″ Return
- Condensate: Gravity Drain
- Installation: Outdoor-Rated
Nationwide shipping available. Contact us for pricing and availability.
Resources and Downloads
The OceanAire OPACH6012AH 5-Ton Outdoor Portable Heat Pump with Auxiliary Electric Heat delivers 60,300 BTU/hr of cooling and 37,600 BTU/hr of heat-pump heating for commercial, industrial, and temporary HVAC applications. Designed for outdoor installation, this air-cooled portable heat pump provides year-round temperature control for warehouses, manufacturing facilities, construction projects, temporary buildings, and event structures.
Operating on 208–230V / 60Hz single-phase electrical power, the OPACH6012AH features a 5 HP scroll compressor, a high-static evaporator blower, automatic heat-pump-to-auxiliary-heat changeover, and dedicated supply and return-air duct connections.
The unit’s rugged steel frame includes heavy-duty swivel casters, forklift pockets, and a transport handle, making it suitable for temporary HVAC installations and commercial equipment fleets.
Whether you need emergency cooling during an HVAC failure, temporary heating during construction, or supplemental temperature control for a commercial facility, the OceanAire OPACH6012AH provides heating and cooling in a transportable outdoor-rated system.
Key Features of the OceanAire OPACH6012AH
- 60,300 BTU/hr Cooling Capacity: Delivers approximately 5 tons of cooling for commercial and industrial applications.
- 37,600 BTU/hr Heat-Pump Heating: Provides heating through a refrigeration-based heat pump system.
- Auxiliary Electric Heat: Includes supplemental electric heating for lower-temperature operation.
- Automatic Heating Changeover: Switches from heat-pump heating to auxiliary electric heat when operating conditions require it.
- 208–230V Single-Phase Operation: Designed for facilities with compatible single-phase electrical service.
- Outdoor-Rated Construction: Suitable for properly installed outdoor temporary HVAC applications.
- 5 HP Scroll Compressor: Features integrated compressor protection and high- and low-pressure safety cutouts.
- High-Static Airflow: Published static capability of up to 0.7 inches external static pressure.
- 1,700 CFM Supply Airflow: Centrifugal evaporator blower delivers conditioned air through a dedicated supply connection.
- Factory Duct Collars: One 12-inch supply connection and two 12-inch return connections.
- Gravity Condensate Drain: Includes a P-trap and 3/4-inch male garden-hose drain fitting.
- 24VAC Thermostat: Provides temperature control for heating and cooling operation.
- Heavy-Duty Steel Frame: Constructed with 2-inch square steel framing.
- 8-Inch Swivel Casters: Supports relocation on suitable surfaces.
- Forklift Pockets: Designed for handling with appropriate industrial equipment.
- Stackable Storage Design: Wheel pockets support manufacturer-approved yard storage configurations.
- Pleated Air Filter: Includes a 14″ × 25″ × 1″ return-air filter.
- Made in the USA: Manufactured by OceanAire.
Common Applications for the OceanAire OPACH6012AH
Warehouses and Manufacturing Facilities
Manufacturing plants and warehouses frequently require supplemental cooling during warmer months and temporary heating during colder conditions.
The OceanAire OPACH6012AH provides heating and cooling in one outdoor-rated unit, making it useful for production areas, industrial equipment rooms, maintenance operations, and commercial facilities.
Its approximately 5-ton cooling capacity and ductable airflow support temporary installations where conditioned air must be supplied from outside the building.
Applications include:
- Warehouses and distribution centers
- Manufacturing and assembly facilities
- Industrial workstations
- Maintenance and equipment rooms
- Temporary HVAC replacement
- Seasonal supplemental heating and cooling
Equipment sizing should be based on the actual heating and cooling load, available electrical service, and duct configuration.
Construction Sites and Temporary Buildings
Construction projects may require heating or cooling before permanent HVAC equipment becomes operational.
The OPACH6012AH is designed for temporary outdoor deployment and can supply conditioned air through compatible ducting.
Its integrated heat pump and auxiliary electric heating system provide flexibility for different seasonal conditions.
Potential applications include construction offices, temporary work areas, modular buildings, and commercial renovation projects.
Event Tents and Temporary Structures
Outdoor events and temporary enclosures often require portable climate control equipment that can operate outside the occupied space.
The OPACH6012AH supports appropriate installations serving event tents, exhibition spaces, hospitality structures, and temporary commercial facilities.
The unit’s factory duct collars allow conditioned air to be routed into an enclosure while return air is brought back to the equipment.
Emergency HVAC and Facility Maintenance
Unexpected HVAC failures can interrupt business operations and expose temperature-sensitive processes to undesirable conditions.
The OPACH6012AH can provide temporary cooling or heating during planned maintenance, equipment repairs, and emergency HVAC replacement.
Explore Temporary Climate Control Solutions
OceanAire OPACH6012AH Technical Specifications
| Specification | Published Configuration |
|---|---|
| Nominal Cooling Capacity | 5 Tons |
| Rated Cooling Capacity | 60,300 BTU/hr |
| Heat-Pump Heating Capacity | 37,600 BTU/hr |
| Auxiliary Electric Heat | 8 kW — Confirm Actual Configuration |
| Equipment Type | Outdoor Portable Air-Cooled Heat Pump |
| Electrical Supply | 208–230V / 60Hz / Single Phase |
| Published Current | 40.1 Amps |
| Published Total Power | 5,020 Watts |
| Energy Efficiency Ratio | 12.1 EER |
| Compressor | Scroll |
| Compressor Horsepower | 5 HP |
| Compressor RLA | 26.4 Amps |
| Compressor LRA | 134 Amps |
| Refrigerant | R-410A |
| Refrigerant Charge | 175 oz |
| Evaporator Blower | Centrifugal |
| Evaporator Airflow — High | 1,700 CFM |
| Evaporator Motor | 3/4 HP |
| Condenser Fan | Propeller |
| Condenser Airflow | 1,075 CFM |
| Condenser Motor | 1/4 HP |
| Cooling Ambient Range | 25°F–115°F |
| Published External Static Capability | Up to 0.7″ ESP |
| Condensate Removal | Gravity Drain |
| Condensate Connection | P-Trap / 3/4″ Male Garden-Hose Fitting |
| Supply Duct Connection | One 12″ Diameter Collar |
| Return Duct Connections | Two 12″ Diameter Collars |
| Air Filter | One 14″ × 25″ × 1″ Pleated Filter |
| Thermostat | 24VAC |
| Power Connection | 600V-Rated Terminal Block |
| Unit Protection | 50A Circuit Breaker |
| Auxiliary Heat Protection | 40A Breaker |
| Height | 49.5″ |
| Width | 75.5″ with Handle |
| Depth | 42″ |
| Net Weight | 710 lbs |
| Frame | 2″ × 2″ Steel |
| Mobility | 8″ Swivel Casters and Forklift Pockets |
| Installation | Outdoor-Rated |

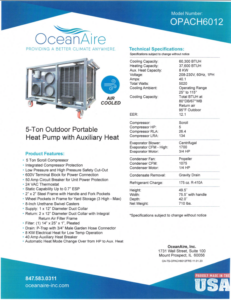

Specifications reflect the supplied OceanAire OPACH6012 technical sheet. Confirm the OPACH6012AH model designation, auxiliary heater rating, dimensions, and electrical specifications against the equipment nameplate and current manufacturer documentation before ordering.
Heating and Cooling Performance
The OceanAire OPACH6012AH provides approximately 5 tons of cooling through a commercial scroll compressor and air-cooled refrigeration system.
The published cooling capacity is 60,300 BTU/hr, with a 12.1 EER rating under the manufacturer’s stated operating conditions.
Heat-Pump Heating
The refrigeration system provides 37,600 BTU/hr of published heat-pump heating capacity.
During heating operation, the heat pump transfers heat using the refrigeration cycle, allowing the equipment to supply warm air without relying exclusively on electric resistance heat.
Auxiliary Electric Heating
The model also includes an auxiliary electric heating system intended for low-temperature operation.
The equipment is designed to transition automatically from heat-pump heating to auxiliary electric heat when required.
The supplied technical sheet lists an 8 kW auxiliary heater. Because other manufacturer documentation lists a different heater rating, the exact installed heating capacity should be confirmed before equipment selection.
Electrical Requirements
The OPACH6012AH operates on 208–230V / 60Hz single-phase electrical power.
The unit uses a terminal-block power connection rather than a standard household receptacle plug.
Published equipment features include:
- 600V-rated terminal block
- 50A unit protection circuit breaker
- 40A auxiliary heat circuit breaker
- Integrated compressor protection
- High- and low-pressure safety controls
Electrical wiring and overcurrent protection must follow the manufacturer’s installation instructions, current equipment nameplate, and applicable electrical codes.
The published operating-current values should not be treated as complete circuit-sizing requirements.
Outdoor Installation and Duct Connections
The OceanAire OPACH6012AH is designed for outdoor use.
Its rugged steel frame, forklift pockets, and 8-inch swivel casters support temporary HVAC deployments and equipment transportation.
The unit measures approximately 75.5 inches wide with its handle, 42 inches deep, and 49.5 inches high according to the supplied specification sheet.
Supply-Air Connection
The unit includes one 12-inch diameter supply-air duct collar.
This allows conditioned air to be delivered from the outdoor unit into a building or temporary structure through properly designed ductwork.
Return-Air Connections
The OPACH6012AH includes two 12-inch diameter return-air collars, with an integral return-air filter frame.
Properly arranged return ducting allows the equipment to draw air from the conditioned space.
High-Static Capability
The published static capability is up to 0.7 inches external static pressure.
This specification is important when planning duct length, fittings, and airflow restrictions.
Ductwork must be sized to maintain the manufacturer’s required airflow.
Condensate Drainage
The OPACH6012AH uses a gravity condensate drain rather than a built-in condensate collection tank or automatic pump.
The drain includes a P-trap and a 3/4-inch male garden-hose connection.
The unit should be positioned and connected so condensate can drain properly.
Where gravity drainage is impractical, an appropriately selected external condensate pump may be required.
Available Ducting and Accessories
12-Inch Supply and Return Ducting
The OceanAire OPACH6012AH uses 12-inch supply and return duct collars.
Climate Control Solutions can assist with selecting suitable flexible ducting and installation accessories.
The correct duct length, number of return connections, attachment method, and airflow requirements should be verified before ordering.
Thermostat and Controls
The unit uses a 24VAC thermostat for heating and cooling operation.
Customers should confirm the supplied thermostat arrangement and any project-specific controls requirements.
Power Cables and Electrical Accessories
The OPACH6012AH uses a terminal-block power connection.
Industrial electrical cables, connectors, and distribution equipment should be selected for the electrical service and installation requirements.
Why Choose the OceanAire OPACH6012AH?
The OceanAire OPACH6012AH combines high-capacity cooling, refrigeration-based heating, and auxiliary electric heat in an outdoor-rated portable HVAC system.
Its single-phase electrical configuration makes it an option for facilities that require commercial heating and cooling but do not have compatible three-phase electrical service.
The steel frame, caster system, forklift pockets, duct collars, and high-static blower design make the unit especially relevant for temporary commercial installations.
Compare Other Portable HVAC Equipment
Climate Control Solutions offers additional heating and cooling equipment for different capacities and installation requirements:
- OceanAire 2OACH6012 – 5-Ton Portable Heat Pump — Indoor-rated 5-ton portable heat pump with 208–230V single-phase operation.
- OceanAire OPAC14432AH – 12-Ton Portable AC with Electric Heat — Higher-capacity outdoor-rated air conditioner with electric heat.
- Browse Industrial HVAC Equipment — Explore additional commercial and temporary HVAC options.
Browse All Portable Heat Pumps
Frequently Asked Questions About the OPACH6012AH
How much cooling does the OceanAire OPACH6012AH provide?
The supplied manufacturer specifications list 60,300 BTU/hr of cooling capacity, equivalent to approximately 5 tons.
Does the OPACH6012AH provide heating?
Yes. It provides heat-pump heating and auxiliary electric resistance heat.
The supplied technical sheet lists 37,600 BTU/hr of heat-pump heating capacity.
How much auxiliary electric heat does it include?
The supplied specification sheet lists 8 kW auxiliary electric heat. Confirm the heater installed in the exact OPACH6012AH configuration because other manufacturer documentation lists 7 kW.
What electrical power does the OPACH6012AH require?
The unit operates on 208–230V / 60Hz single-phase electrical service.
Does the OPACH6012AH use a standard electrical plug?
No. The published configuration uses a terminal-block power connection. Electrical installation must follow the manufacturer documentation.
Can the OPACH6012AH operate outdoors?
Yes. The OPACH series is designed for outdoor portable heating and cooling installations.
What size ducting does the OPACH6012AH use?
The unit includes one 12-inch supply duct collar and two 12-inch return duct collars.
Does the OPACH6012AH include a condensate pump?
No. The published configuration uses gravity condensate drainage with a 3/4-inch male garden-hose connection.
What is the airflow of the OPACH6012AH?
The supplied technical sheet lists 1,700 CFM of evaporator airflow at high fan speed.
Can this unit be used for temporary event structures?
Yes. It can support properly engineered heating and cooling installations for suitable event tents, temporary buildings, and commercial facilities.
What refrigerant does the OPACH6012AH use?
The supplied manufacturer specifications list R-410A refrigerant with a 175-ounce charge.
How much does the OPACH6012AH weigh?
The supplied technical sheet lists a net weight of 710 pounds.
Request a Quote for the OceanAire OPACH6012AH
Climate Control Solutions supplies OceanAire portable heat pumps, outdoor-rated air conditioners, and industrial temporary HVAC equipment nationwide.
Whether you need one OPACH6012AH for a temporary commercial facility or multiple units for a construction project, our team can assist with equipment selection, electrical requirements, ducting arrangements, and freight coordination.
Contact Climate Control Solutions for current pricing, availability, and project-specific quotes.
Phone: (800) 633-8711
Email: [email protected]
