Oceanaire OPAC14432AH – 12-Ton Vertical Portable Air Conditioner with Electric Heat (230V, 3 Phase)
$39,999.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire OPAC14432AH 12-Ton Portable Air Conditioner with Electric Heat delivers 144,000 BTU/hr of cooling for warehouses, manufacturing facilities, temporary structures, and industrial HVAC applications. Its outdoor-rated design features integrated electric heat, high-static airflow, and heavy-duty portable construction.
Key Specifications:
- Cooling Capacity: 144,000 BTU/hr (12 Tons)
- Heating: Integrated Electric Heat
- Electrical: 208–230V / Three Phase
- Airflow: 4,000 CFM
- Power Connection: CAM-LOK
- Condensate Pump: Built-In, 10′ Lift
- Duct Connections: Dual 16″ Supply / Return
- Installation: Outdoor-Rated
Related Accessories:
16″ Flexible Ducting | 20″ Flexible Ducting
Confirm ducting compatibility and permitted lengths before ordering.
Nationwide shipping available. Contact us for pricing and availability.

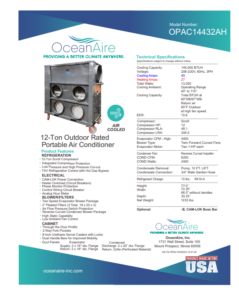

Resources and Downloads
The OceanAire OPAC14432AH 12-Ton Vertical Portable Air Conditioner with Electric Heat delivers 144,000 BTU/hr of cooling for demanding commercial, industrial, and temporary HVAC applications. Designed for outdoor installation, this self-contained, air-cooled unit combines high-capacity cooling with integrated electric heating in a rugged, transportable vertical cabinet.
Operating on 208–230V / 60Hz three-phase power, the OPAC14432AH features a 12 HP scroll compressor, 4,000 CFM of conditioned airflow, a two-speed evaporator blower, and a built-in condensate pump. Its heavy-duty construction and factory duct connections make it suitable for warehouses, manufacturing facilities, temporary structures, construction projects, and emergency HVAC applications.
The unit includes industrial CAM-LOK electrical connections, 8-inch locking swivel casters, forklift pockets, and dual transportation handles. Its outdoor-rated design allows the equipment to be positioned outside a building while conditioned air is supplied through compatible ductwork.
Key Features of the OceanAire OPAC14432AH
- 144,000 BTU/hr Cooling Capacity: Delivers 12 tons of cooling for commercial and industrial applications.
- Integrated Electric Heat: Provides auxiliary electric heating for suitable temporary climate control applications.
- 208–230V Three-Phase Operation: Designed for compatible commercial and industrial electrical service.
- Outdoor-Rated Construction: Suitable for properly installed outdoor temporary HVAC systems.
- 12 HP Scroll Compressor: Equipped with integrated compressor protection and high- and low-pressure safety cutouts.
- 4,000 CFM Evaporator Airflow: Twin forward-curved blowers deliver conditioned air at high volume.
- 6,250 CFM Condenser Airflow: Reverse-curved condenser impeller supports the air-cooled refrigeration system.
- Two-Speed Evaporator Blower: Provides flexibility for airflow requirements.
- High Static Capability: Supports compatible ducted temporary HVAC installations.
- Built-In Condensate Pump: Automatically removes collected condensate with up to 10 feet of vertical lift.
- CAM-LOK Power Connection: Industrial electrical connection with an optional CAM-LOK busbar configuration.
- 8-Inch Locking Swivel Casters: Allows the unit to be repositioned on suitable surfaces.
- Two-Way Forklift Pockets: Supports transport and positioning with appropriate material-handling equipment.
- Dual Transportation Handles: Helps facilitate equipment movement.
- Factory Duct Connections: Dual 16-inch supply and return flanges and dual 20-inch condenser discharge flanges.
- Pleated Air Filters: Includes three 18″ × 20″ × 2″ filters.
- Safety Features: Phase monitoring, heater overload protection, refrigeration pressure protection, and airflow pressure-switch protection.
- Made in the USA: OceanAire manufactures this model in the United States.
Common Applications for the OceanAire OPAC14432AH
Warehouses and Manufacturing Facilities
Industrial production areas and warehouses often require temporary or supplemental cooling during warm-weather operations.
The OceanAire OPAC14432AH delivers 144,000 BTU/hr of cooling and 4,000 CFM of conditioned airflow for commercial applications that require substantial capacity.
Its outdoor-rated construction allows the system to be positioned outside the facility while conditioned air is routed indoors through suitable ductwork.
Common applications include:
- Warehouses and distribution centers
- Manufacturing and assembly facilities
- Equipment and machinery cooling
- Industrial maintenance areas
- Temporary cooling during HVAC repairs
- Production-line cooling
Equipment selection should be based on actual cooling requirements, airflow distribution, and the installation’s available electrical service.
Data Centers and Server Rooms
Server rooms, telecommunications facilities, and data centers generate considerable heat from continuously operating electronic equipment.
The OPAC14432AH can provide temporary or emergency cooling during permanent HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 12-ton capacity makes it an option for larger equipment spaces where properly engineered temporary cooling is required.
Because the OPAC14432AH is air-cooled, condenser heat must be discharged without recirculating into the conditioned area or restricting condenser airflow.
Read our Portable Spot Coolers for Server Rooms Guide for more information.
Construction Projects and Commercial Renovations
New construction, building renovations, and major HVAC replacements frequently require temporary heating and cooling.
The OceanAire OPAC14432AH provides a portable HVAC option for facilities where permanent equipment is unavailable or undergoing maintenance.
Its factory duct flanges, forklift pockets, swivel casters, and compact transport profile help contractors position and connect the equipment.
Temporary Event Structures and Facilities
Temporary structures and event facilities may require conditioned air without permanently installed HVAC equipment.
The OPAC14432AH can provide cooling and auxiliary electric heating for suitable applications, including:
- Commercial event tents
- Exhibition structures
- Temporary office buildings
- Construction facilities
- Seasonal commercial operations
The system must be appropriately sized and connected using suitable ducting, electrical service, and drainage.
Emergency HVAC and Disaster Recovery
Unexpected HVAC failures can interrupt business operations and create problems for temperature-sensitive equipment or processes.
The OPAC14432AH can support temporary climate control during emergency repairs, planned shutdowns, and commercial recovery projects.
Explore Commercial Climate Control Solutions
OceanAire OPAC14432AH Technical Specifications
| Specification | OceanAire OPAC14432AH |
|---|---|
| Cooling Capacity | 144,000 BTU/hr (12 Tons) |
| Heating Type | Integrated Electric Heat |
| Equipment Type | Outdoor-Rated Air-Cooled Portable AC |
| Electrical Supply | 208–230V / 60Hz / Three Phase |
| Cooling Current | 40 Amps |
| Heating Current | 27 Amps |
| Published Total Power | 13,300 Watts |
| Energy Efficiency Ratio | 10.8 EER |
| Compressor Type | Scroll |
| Compressor Horsepower | 12 HP |
| Compressor RLA | 48.1 Amps |
| Compressor LRA | 245 Amps |
| Refrigerant | R-410A |
| Refrigerant Charge | 13 lbs |
| Refrigeration Control | TXV with Hot-Gas Bypass |
| Evaporator Airflow — High | 4,000 CFM |
| Evaporator Blowers | Twin Forward-Curved Fans |
| Evaporator Motors | Two 1 HP Motors |
| Evaporator Fan Speeds | Two |
| Condenser Airflow | 6,250 CFM |
| Condenser Fan | Reverse-Curved Impeller |
| Condenser Fan Power | 2,400 Watts |
| Cooling Ambient Range | 40°F–115°F |
| Condensate Pump | Built-In |
| Condensate Pump Lift | Up to 10 Feet |
| Condensate Connection | 3/4″ Male Garden-Hose Fitting |
| Evaporator Supply Connections | Two 16″ Diameter Flanges |
| Evaporator Return Connections | Two 16″ Diameter Flanges |
| Condenser Discharge Connections | Two 20″ Diameter Flanges |
| Condenser Return | Perforated Grille |
| Air Filters | Three 18″ × 20″ × 2″ Pleated Filters |
| Power Connection | CAM-LOK |
| Optional Power Configuration | CAM-LOK Busbar |
| Height | 77″ |
| Width | 72.25″ |
| Width Without Handles | 66.5″ |
| Depth | 30.25″ |
| Net Weight | 1,233 lbs |
| Mobility | 8″ Locking Urethane Casters and Forklift Pockets |
| Installation | Outdoor-Rated |
Specifications are based on the manufacturer’s OPAC14432AH technical sheet dated December 1, 2024, and are subject to change. Confirm installed heating capacity, required circuit sizing, and equipment specifications before installation.
High-Capacity Cooling Performance
The OceanAire OPAC14432AH provides 144,000 BTU/hr of cooling through a commercial 12 HP scroll compressor.
Its refrigeration system includes thermostatic expansion valve control with hot-gas bypass, integrated compressor protection, and high- and low-pressure cutouts.
The published cooling ambient operating range is 40°F to 115°F, providing flexibility across a range of outdoor conditions.
Evaporator Airflow
The OPAC14432AH delivers up to 4,000 CFM of conditioned airflow at high fan speed.
The evaporator uses two forward-curved blower fans, each driven by a 1 HP motor.
The two-speed blower system and high-static capability support compatible ducted installations when properly designed.
Condenser Airflow
The air-cooled condenser provides approximately 6,250 CFM of airflow through a reverse-curved impeller.
Proper condenser airflow is essential for effective heat rejection.
Condenser discharge must not be restricted or allowed to recirculate into the condenser inlet.
Integrated Electric Heating
The OPAC14432AH includes auxiliary electric heating for applications requiring supplemental heat.
The manufacturer identifies a heating current of 27 amps and includes heater overload protection and airflow pressure-switch protection.
This configuration allows one unit to provide cooling and electric heating for suitable temporary HVAC applications.
Heating output should be confirmed with OceanAire before specifying a kW or BTU/hr heating capacity.
Electrical and CAM-LOK Connections
The OceanAire OPAC14432AH operates on 208–230V / 60Hz three-phase electrical power.
It uses industrial CAM-LOK connections rather than a standard NEMA receptacle plug.
Published specifications include:
- Cooling Current: 40 Amps
- Heating Current: 27 Amps
- Compressor RLA: 48.1 Amps
- Compressor LRA: 245 Amps
- Power Connection: CAM-LOK
The electrical system also includes:
- Phase monitor protection
- Control wiring circuit breaker
- Heater overload protection
- Analog operating-hour meter
OceanAire identifies an optional CAM-LOK busbar configuration for this unit.
Power cables, electrical distribution, conductor sizing, and overcurrent protection must be selected according to manufacturer requirements, the equipment nameplate, and applicable electrical codes.
Outdoor Installation and Portability
The OPAC14432AH is an outdoor-rated portable air conditioner.
Its heavy-duty vertical cabinet includes 8-inch urethane swivel casters with locks, dual transportation handles, and integrated two-way forklift pockets.
With a net weight of 1,233 pounds, the unit requires an appropriate handling plan and a stable installation surface.
Through-the-Door Profile
OceanAire identifies a through-the-door cabinet profile.
The published dimensions include:
- Height: 77 inches
- Width: 72.25 inches
- Width Without Handles: 66.5 inches
- Depth: 30.25 inches
These dimensions are useful when planning equipment access, staging, and transportation.
Actual door clearance, turning space, weight limits, and handling requirements must be verified before moving the unit.
Built-In Condensate Pump
The OPAC14432AH includes a condensate pump capable of up to 10 feet of vertical lift.
The unit uses a 3/4-inch male garden-hose condensate connection.
Collected condensate must be discharged to an appropriate drainage location.
A separate external condensate pump may not be required for installations within the built-in pump’s capacity.
Factory Duct Connections and Accessories
The OPAC14432AH includes factory duct panels for both conditioned air and condenser discharge.
Evaporator Supply and Return
- Supply: Two 16-inch diameter flanges
- Return: Two 16-inch diameter flanges
These connections support applications where conditioned air is ducted from the outdoor unit into a building or temporary structure, with return air routed back to the evaporator.
Condenser Discharge
- Discharge: Two 20-inch diameter flanges
- Return: Perforated grille
These connections provide flexibility for appropriate condenser discharge arrangements.
All duct configurations must remain within the manufacturer’s airflow and static pressure requirements.
16-Inch × 25-Foot Flexible Ducting
Climate Control Solutions supplies 16-inch flexible ducting for commercial HVAC applications.
This duct size is relevant to the OPAC14432AH’s dual 16-inch evaporator supply and return connections.
Verify attachment requirements, temperature rating, allowable duct length, and pressure losses before ordering.
20-Inch × 25-Foot Flexible Ducting
Climate Control Solutions also offers 20-inch flexible ducting for compatible industrial installations.
The OPAC14432AH features two 20-inch condenser discharge flanges, making this duct size relevant for projects requiring suitable condenser discharge routing.
Manufacturer approval and installation compatibility should be confirmed before use.
CAM-LOK Power Cables and Accessories
Industrial temporary HVAC installations may require compatible CAM-LOK cables and distribution equipment.
Contact Climate Control Solutions for assistance evaluating the project’s connection requirements.
Browse Portable HVAC Accessories
Why Choose the OceanAire OPAC14432AH?
The OceanAire OPAC14432AH combines 144,000 BTU/hr of cooling, auxiliary electric heating, and outdoor-rated construction in a portable industrial HVAC system.
Its 208–230V three-phase configuration makes it suitable for commercial facilities with compatible electrical service.
The 4,000 CFM evaporator airflow, high-static blower design, factory duct connections, integrated condensate pump, and rugged equipment handling features provide flexibility for demanding temporary cooling and heating applications.
Compare Other Large-Capacity Portable Air Conditioners
Climate Control Solutions offers additional industrial cooling systems for different electrical requirements and capacities:
- OceanAire OPAC14434AH – 12-Ton Portable AC with Electric Heat: 460V three-phase configuration with the same nominal cooling capacity.
- OceanAire OVAC24034AH – 20-Ton Vertical AC with Electric Heat — Larger outdoor-rated unit with 45 kW electric heating.
- Browse Industrial HVAC Equipment — Explore additional industrial and temporary HVAC solutions.
Browse Portable Air-Cooled Units
Frequently Asked Questions About the OceanAire OPAC14432AH
How much cooling capacity does the OPAC14432AH provide?
The OceanAire OPAC14432AH delivers 144,000 BTU/hr of cooling, equivalent to 12 tons.
Does the OPAC14432AH include electric heat?
Yes. The OPAC14432AH includes auxiliary electric heating. The manufacturer’s specification sheet lists 27 amps of heating current but does not specify a heating capacity in kW or BTU/hr.
What electrical power does the OPAC14432AH require?
The unit operates on 208–230V / 60Hz three-phase electrical service.
Does the OPAC14432AH use a standard electrical plug?
No. It uses industrial CAM-LOK power connections. Electrical installation must follow the manufacturer’s requirements.
Can the OPAC14432AH operate outdoors?
Yes. OceanAire identifies it as an outdoor-rated portable air conditioner.
How much airflow does the OPAC14432AH provide?
The unit provides 4,000 CFM of evaporator airflow at high fan speed and 6,250 CFM of condenser airflow.
What duct sizes does the OPAC14432AH use?
The unit includes dual 16-inch evaporator supply flanges, dual 16-inch evaporator return flanges, and dual 20-inch condenser discharge flanges.
Does the OPAC14432AH include a condensate pump?
Yes. It features a built-in condensate pump with up to 10 feet of vertical lift.
Does the OPAC14432AH have wheels?
Yes. The unit includes 8-inch locking urethane swivel casters and two-way forklift pockets.
What refrigerant does the OPAC14432AH use?
The supplied manufacturer specifications list R-410A refrigerant with a 13-pound charge.
Is a 460V version available?
Yes. The OceanAire OPAC14434AH offers the same nominal 12-ton cooling capacity in a 460V three-phase configuration.
Request a Quote for the OceanAire OPAC14432AH
Climate Control Solutions supplies OceanAire commercial portable air conditioners, large-capacity spot coolers, and temporary industrial HVAC equipment nationwide.
Whether you need one OPAC14432AH for a manufacturing facility or multiple units for an emergency cooling project, our team can help with equipment selection, electrical requirements, ducting arrangements, and freight coordination.
Contact Climate Control Solutions for current pricing, availability, compatible accessories, and project-specific quotes.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Related products
Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
