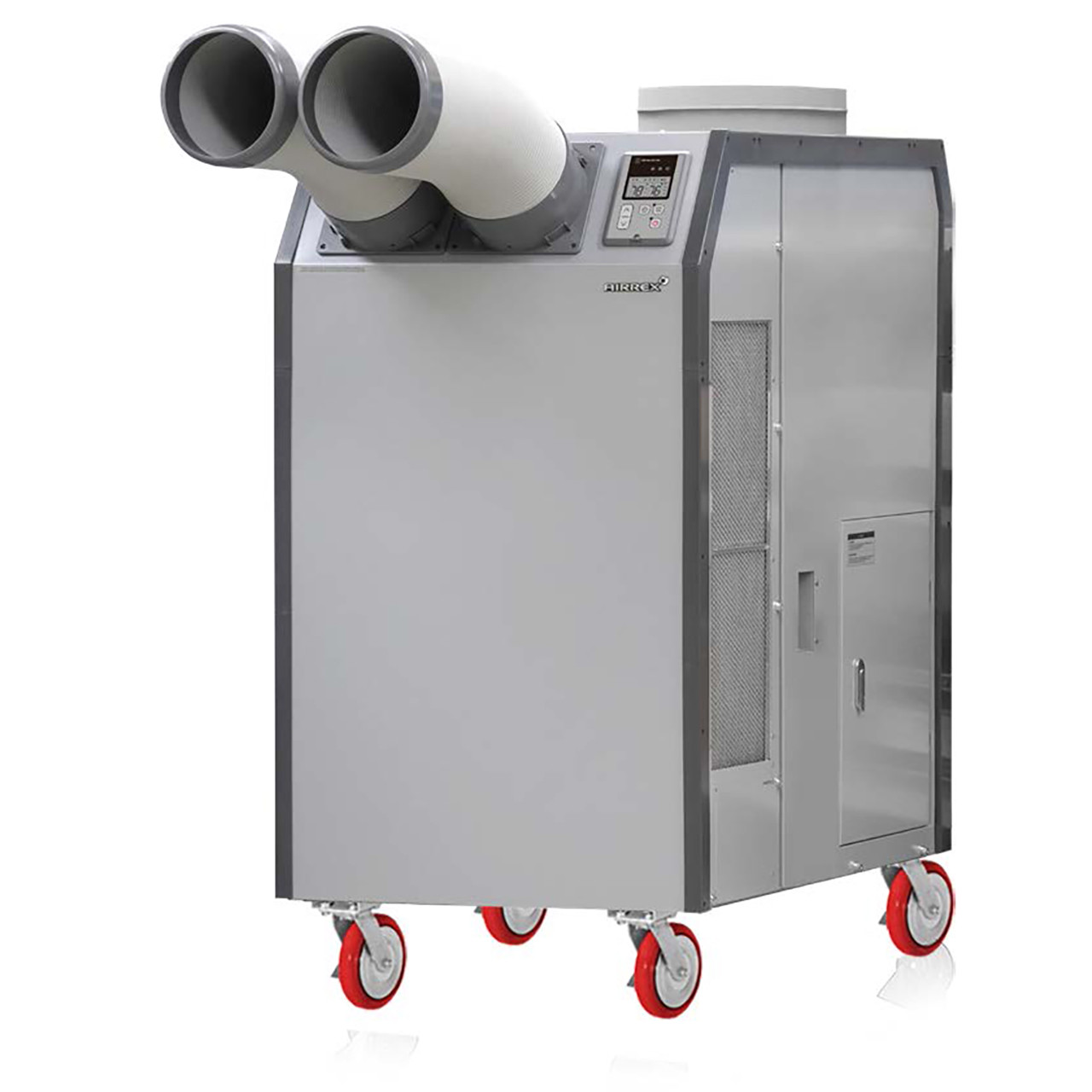

Airrex HSC-60R 460/3: 5-Ton Spot Cooler – Eco-Friendly with R-454B Refrigerant, 61,000 BTU, 460/3 PH
Original price was: $14,332.65.$13,322.32Current price is: $13,322.32.
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The Airrex HSC-60R 460/3 5-Ton Portable Spot Cooler delivers 60,000 BTU/hr of cooling for warehouses, manufacturing facilities, server rooms, and industrial applications. Featuring low-GWP R-454B refrigerant and a built-in condensate pump, this commercial-grade unit provides powerful, targeted cooling with 460V three-phase operation.
Key Specifications:
- Cooling Capacity: 60,000 BTU/hr (5 Tons)
- Electrical: 460V / 60Hz / Three Phase
- Cooling Current: 8.87 Amps
- Cooling Airflow: 1,850 CFM
- Warm-Air Exhaust: 16-Inch Diameter
- Condensate Pump: Built-In
- Warranty: 1-Year Parts & Labor / 3-Year Compressor
Optional Accessories:
16-Inch Ceiling Tile Kit | Portable HVAC Accessories
Nationwide shipping available. Contact us for bulk pricing and availability.
Resources and Downloads
The Airrex HSC-60R 460/3 5-Ton Portable Spot Cooler delivers 60,000 BTU/hr of cooling capacity for demanding commercial and industrial applications. Designed for high-capacity temporary and supplemental air conditioning, this industrial spot cooler is ideal for warehouses, manufacturing facilities, server rooms, data centers, and other environments requiring reliable cooling.
Operating on 460V / 60Hz three-phase power, the HSC-60R provides powerful cooling in a durable, mobile design. The unit features low-GWP R-454B refrigerant, dual 8-inch cold-air discharge nozzles, washable air filters, digital controls, and a built-in condensate pump.
Whether you need emergency cooling during HVAC maintenance, supplemental cooling for industrial equipment, or temporary air conditioning for a commercial facility, the Airrex HSC-60R provides a flexible cooling solution.
Key Features of the Airrex HSC-60R 460/3
- 60,000 BTU/hr Cooling Capacity: Delivers 5 tons of nominal cooling for commercial and industrial applications.
- 460V Three-Phase Operation: Designed for facilities with compatible 460V / 60Hz three-phase electrical service.
- Low-GWP R-454B Refrigerant: Offers a lower global warming potential than R-410A refrigerant.
- High-Capacity Airflow: Provides 1,850 CFM of conditioned airflow for targeted cooling.
- Dual Cold-Air Discharge Nozzles: Two 8-inch nozzles help direct cooling toward workstations, machinery, and heat-generating equipment.
- 16-Inch Warm-Air Exhaust: Compatible with properly sized 16-inch exhaust ducting and ceiling accessories.
- Built-In Condensate Pump: Automatically removes collected condensation when connected to an appropriate drainage location.
- Portable Industrial Design: Heavy-duty locking swivel casters allow equipment to be repositioned as needed.
- Washable Air Filters: Removable filters simplify routine cleaning and maintenance.
- Digital Temperature Controls: Includes adjustable temperature settings, programmable timer, and automatic restart functionality.
- Compressor Protection: High- and low-pressure protection helps safeguard the cooling system.
- ETL Listed: Listed for applicable electrical safety requirements.
- Warranty: 1-year limited product warranty and 3-year compressor warranty.
Common Applications for the Airrex HSC-60R
Warehouses and Manufacturing Facilities
Warehouses and industrial manufacturing facilities often have large work areas, production equipment, and machinery that generate substantial heat.
The Airrex HSC-60R provides 60,000 BTU/hr of cooling capacity to help manage elevated temperatures in specific areas without necessarily cooling an entire building.
Common applications include:
- Manufacturing workstations and production lines
- Industrial equipment and machinery
- Assembly and packaging areas
- Warehouse operations
- Maintenance and repair facilities
Its portable design allows the unit to be moved between work areas as cooling needs change.
Server Rooms and Data Center Cooling
Server rooms, networking equipment, and data centers generate significant heat during continuous operation.
The Airrex HSC-60R can provide temporary or supplemental cooling during planned HVAC maintenance, equipment upgrades, facility expansions, or unexpected cooling failures.
With 5 tons of nominal cooling capacity, the HSC-60R may be suitable for IT environments requiring more cooling than smaller portable air conditioners can provide.
Proper cooling-load calculations, condenser exhaust management, electrical service, and condensate drainage are essential when using portable cooling around sensitive equipment.
For more information, read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Commercial and Healthcare Facilities
The HSC-60R can provide supplemental cooling for commercial buildings, healthcare support areas, institutional facilities, and large temporary workspaces.
It is particularly useful when permanent HVAC equipment is undergoing repairs or certain areas require additional cooling capacity.
Healthcare applications should be evaluated for applicable facility and infection-control requirements.
Emergency and Temporary Air Conditioning
Unexpected HVAC failures can interrupt business operations, affect employee comfort, and expose temperature-sensitive equipment to excessive heat.
The Airrex HSC-60R offers a portable cooling solution for emergency and temporary applications when properly sized and installed.
It can also support planned HVAC maintenance, building renovations, equipment replacement, and short-term industrial cooling projects.
Explore additional equipment options in our Portable AC & Spot Cooler Comparison Hub.
Airrex HSC-60R 460/3 Technical Specifications
| Specification | Airrex HSC-60R 460/3 |
|---|---|
| Cooling Capacity | 60,000 BTU/hr (5 Tons) |
| Refrigerant | R-454B |
| Power Supply | 460V / 60Hz / Three Phase |
| Cooling Current | 8.87 Amps |
| Fuse Size | 15 Amps |
| Cooling Airflow | 1,850 CFM |
| Condenser Airflow | 3,020 CFM |
| Cold-Air Discharge | Two 8-Inch Diameter Nozzles |
| Warm-Air Exhaust | 16-Inch Diameter |
| Operating Ambient Temperature | 65°F–118°F |
| Dimensions (W × D × H) | 29″ × 54″ × 57″ |
| Weight | 628 lbs |
| Filters | Removable and Washable |
| Condensate Pump | Built-In |
| Mobility | Locking Swivel Casters |
| Certification | ETL Listed |
| Product Warranty | 1-Year Limited |
| Compressor Warranty | 3-Year |
Actual cooling performance depends on ambient conditions, airflow, heat load, and installation. Electrical connections and circuit protection must follow the current equipment nameplate and manufacturer instructions.
Installation and Electrical Requirements
The Airrex HSC-60R 460/3 operates on 460V / 60Hz three-phase power.
This model requires compatible three-phase electrical service and cannot operate from a standard 115V outlet or 220V single-phase connection.
The manufacturer’s specifications list an 8.87A cooling current and 15A fuse size. The supplied electrical connection, conductor sizing, and circuit protection should be confirmed before installation.
Customers should verify that their facility has the correct electrical infrastructure before ordering.
Warm-Air Exhaust Requirements
The HSC-60R removes heat from the conditioned area and discharges it through a 16-inch diameter warm-air exhaust outlet.
For effective cooling, warm condenser air must be directed away from the conditioned space to prevent unwanted heat buildup.
Compatible 16-inch ducting and ceiling accessories can be used where an appropriate exhaust path is available.
Built-In Condensate Management
The HSC-60R includes a built-in condensate pump to help remove collected moisture during operation.
This reduces the need for manual condensate removal and is useful for applications requiring extended cooling operation.
Condensate must be routed to an approved drainage location according to the manufacturer’s installation instructions.
Optional Accessories for the Airrex HSC-60R
The HSC-60R can be paired with accessories designed to improve exhaust management, cooling distribution, and installation flexibility.
Airrex 16-Inch Ceiling Tile Kit
The Airrex 16-inch ceiling tile kit is compatible with the HSC-60R and provides a convenient solution for routing warm condenser exhaust through an appropriate suspended ceiling installation.
The kit includes:
- 24″ × 24″ pre-cut ceiling tile
- 16-inch diameter flexible exhaust duct
- 8-foot duct length
This accessory helps organize exhaust ducting in commercial offices, server rooms, equipment areas, and other facilities with compatible suspended ceilings.
The receiving ceiling space must be suitable for the discharged heat and airflow.
View Airrex 16-Inch Ceiling Tile Kit
Flexible Cold-Air and Exhaust Ducting
The HSC-60R features two 8-inch cold-air discharge outlets that allow conditioned air to be directed toward specific workstations, equipment, and other areas requiring cooling.
Additional flexible ducting may be used for suitable air-distribution and exhaust arrangements.
The unit’s warm-air exhaust connection measures 16 inches in diameter. Duct length, sizing, and configuration should follow manufacturer requirements to avoid excessive airflow restriction.
Browse Portable HVAC Accessories
Why Choose the Airrex HSC-60R 460/3?
The Airrex HSC-60R combines 60,000 BTU/hr of cooling capacity, heavy-duty construction, and portable convenience in a commercial-grade air conditioning system.
Its high-capacity cooling performance and dual discharge nozzles make it suitable for demanding applications where targeted cooling is required.
The built-in condensate pump, washable filters, digital controls, and compatible 16-inch ceiling kit provide additional installation flexibility.
Compare Other Airrex Portable Spot Coolers
Climate Control Solutions offers additional Airrex cooling equipment for different electrical and capacity requirements:
- Airrex HSC-36R – 3-Ton Portable Spot Cooler — 36,000 BTU/hr cooling capacity for smaller industrial applications.
- Airrex HSC-60R 220/3 – 5-Ton Portable Spot Cooler — 60,000 BTU/hr cooling capacity with 220V three-phase operation.
For additional comparisons, visit our Portable AC & Spot Cooler Comparison Hub.
You can also browse our full selection of Airrex portable air conditioners.
Frequently Asked Questions About the Airrex HSC-60R
How many BTUs does the Airrex HSC-60R provide?
The Airrex HSC-60R 460/3 delivers 60,000 BTU/hr of nominal cooling capacity, equivalent to 5 tons of refrigeration.
How much space can the HSC-60R cool?
The HSC-60R may provide cooling for areas up to approximately 2,000 square feet under suitable conditions.
Actual coverage varies depending on insulation, ceiling height, ventilation, equipment heat loads, and whether the unit is being used for targeted spot cooling or enclosed-room cooling.
What electrical power does the HSC-60R 460/3 require?
The HSC-60R 460/3 operates on 460V / 60Hz three-phase electrical power. The manufacturer’s specifications list an 8.87A cooling current and a 15A fuse size.
Can the HSC-60R operate on 220V power?
The 460/3 model is designed for 460V three-phase operation. Climate Control Solutions also offers a separate HSC-60R 220/3 model for facilities requiring 220V three-phase power.
What size ceiling kit does the HSC-60R use?
The HSC-60R features a 16-inch warm-air exhaust outlet and is compatible with the Airrex 16-inch ceiling tile kit.
Does the HSC-60R include a condensate pump?
Yes. The HSC-60R includes a built-in condensate pump for automatic condensate removal when connected to an approved drainage location.
Does the HSC-60R require exhaust ducting?
Warm condenser air must be directed away from the conditioned space. Compatible 16-inch exhaust ducting and ceiling accessories are available for appropriate installations.
Can the HSC-60R cool a data center or server room?
Yes. The HSC-60R can provide temporary or supplemental cooling for server rooms and data centers when the cooling load, electrical service, airflow, and heat-rejection arrangements are appropriate.
Does the HSC-60R provide dehumidification?
Yes. The HSC-60R includes dehumidification functionality for removing moisture from the air.
What refrigerant does the Airrex HSC-60R use?
The HSC-60R uses R-454B refrigerant, which has a lower global warming potential than R-410A.
What is the warranty on the Airrex HSC-60R?
The HSC-60R includes a 1-year limited product warranty and a 3-year compressor warranty, subject to manufacturer terms.
Buy the Airrex HSC-60R 460/3 from Climate Control Solutions
Climate Control Solutions supplies Airrex portable spot coolers and commercial air conditioning equipment nationwide.
Whether you’re purchasing one HSC-60R for a manufacturing facility or multiple units for a commercial cooling project, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, and bulk-order quotes.
