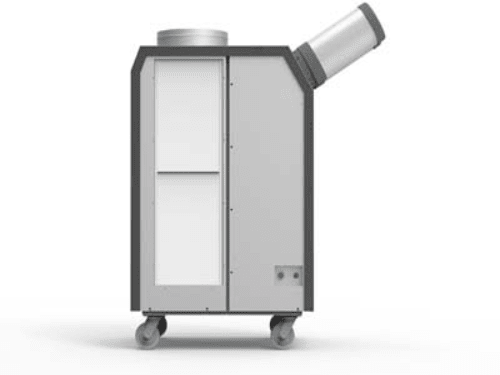

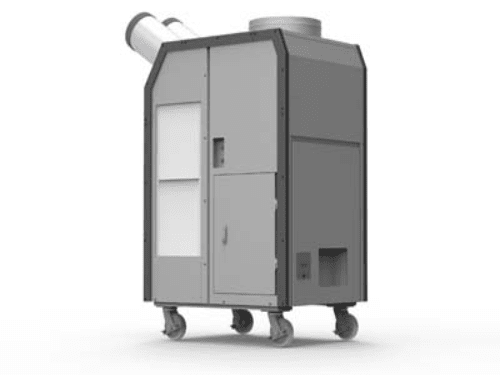

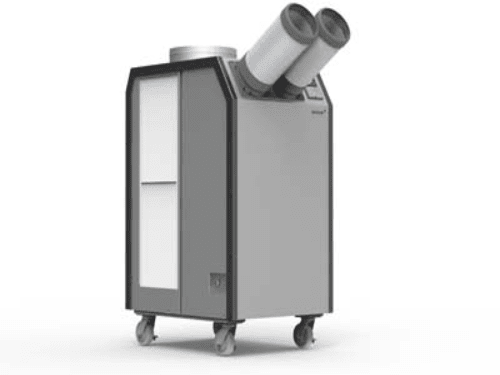

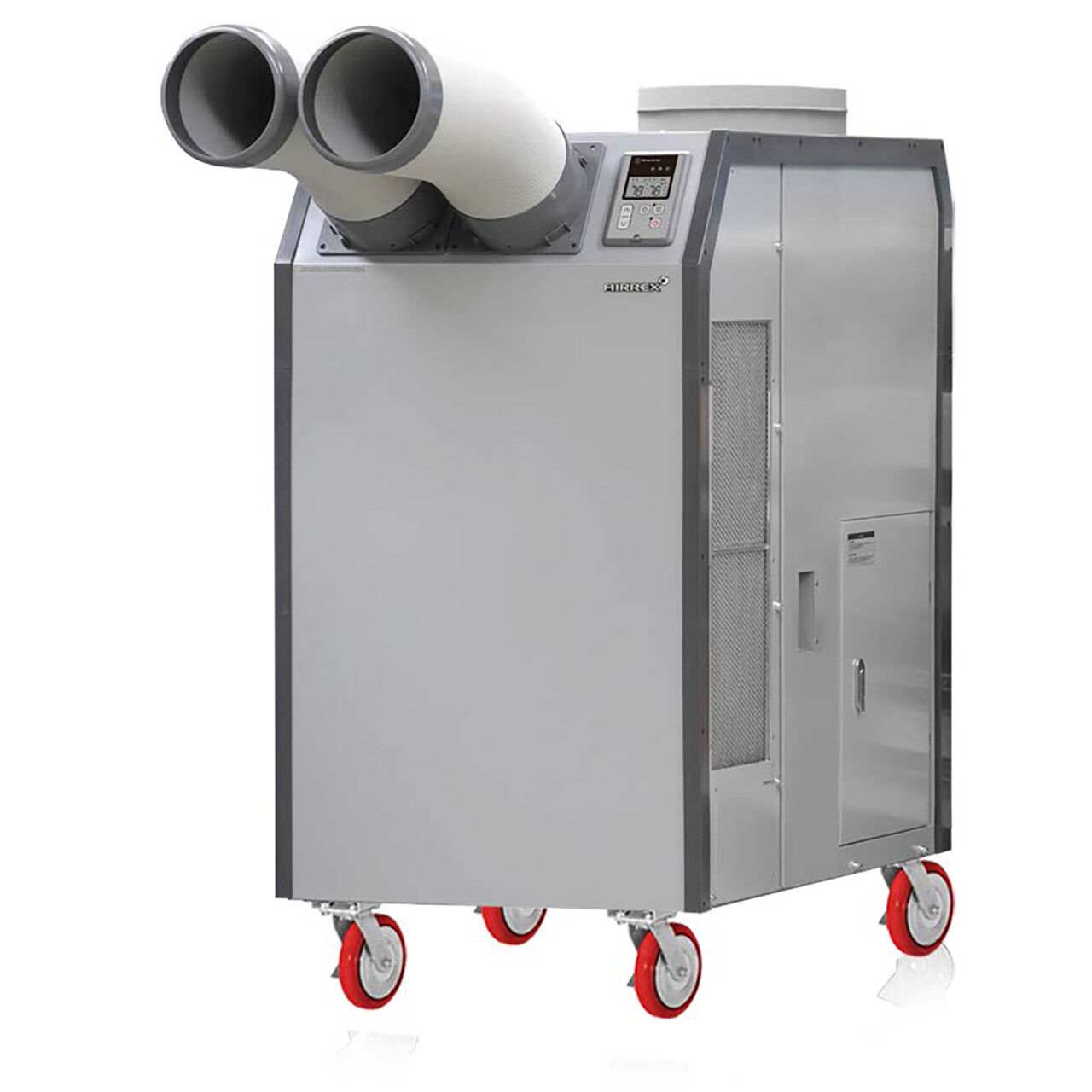

Airrex HSC-60R 220/3: 5-Ton Spot Cooler – Eco-Friendly with R-454B Refrigerant, 60,000 BTU, 220/3 PH
Original price was: $14,332.65.$13,322.32Current price is: $13,322.32.
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The Airrex HSC-60R 220/3 5-Ton Portable Spot Cooler delivers 60,000 BTU/hr of cooling for warehouses, manufacturing facilities, server rooms, and commercial applications. Featuring low-GWP R-454B refrigerant and a built-in condensate pump, this industrial unit provides high-capacity cooling with 220V three-phase operation.
Key Specifications:
- Cooling Capacity: 60,000 BTU/hr (5 Tons)
- Electrical: 220V / 60Hz / Three Phase
- Cooling Current: 18.5 Amps
- Cooling Airflow: 1,850 CFM
- Warm-Air Exhaust: 16-Inch Diameter
- Condensate Pump: Built-In
- Warranty: 1-Year Parts & Labor / 3-Year Compressor
Optional Accessories:
16-Inch Ceiling Tile Kit | Portable HVAC Accessories
Nationwide shipping available. Contact us for bulk pricing and availability.

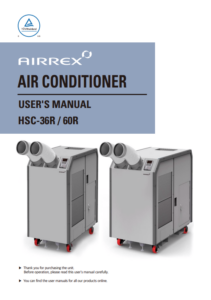

Resources and Downloads
The Airrex HSC-60R 220/3 5-Ton Portable Spot Cooler delivers 60,000 BTU/hr of cooling capacity for demanding commercial and industrial applications. Designed for high-capacity temporary and supplemental air conditioning, this powerful portable unit is ideal for warehouses, manufacturing facilities, server rooms, data centers, industrial equipment, and other heat-intensive environments.
Operating on 220V / 60Hz three-phase power, the HSC-60R provides powerful cooling in a heavy-duty, mobile design. The unit features lower-GWP R-454B refrigerant, dual 8-inch cold-air discharge nozzles, washable air filters, digital temperature controls, and a built-in condensate pump.
Whether you need emergency cooling during HVAC maintenance, supplemental cooling for manufacturing equipment, or temporary air conditioning for a large commercial facility, the Airrex HSC-60R offers a practical industrial cooling solution.
Key Features of the Airrex HSC-60R 220/3
- 60,000 BTU/hr Cooling Capacity: Provides 5 tons of nominal cooling for commercial and industrial applications.
- 220V Three-Phase Operation: Designed for facilities with compatible 220V / 60Hz three-phase electrical service.
- Low-GWP R-454B Refrigerant: Offers a lower global warming potential than traditional R-410A refrigerant.
- High-Capacity Airflow: Delivers up to 1,850 CFM of conditioned cooling airflow.
- Dual Cold-Air Discharge Nozzles: Two 8-inch nozzles allow cooling to be directed toward individual workstations, equipment, or designated areas.
- 16-Inch Warm-Air Exhaust: Compatible with appropriate 16-inch exhaust ducting and ceiling accessories.
- Built-In Condensate Pump: Supports automatic condensate removal when connected to an appropriate drainage location.
- Industrial Portable Design: Heavy-duty swivel casters allow movement and positioning throughout commercial facilities.
- Washable Air Filters: Removable filters simplify routine maintenance.
- Digital Controls: Includes adjustable temperature settings, programmable timer, and automatic restart functionality.
- Compressor Protection: High- and low-pressure safety features help protect the cooling system.
- ETL Listed: Listed for applicable electrical safety requirements.
- Warranty: 1-year limited product warranty and 3-year compressor warranty.
Common Applications for the Airrex HSC-60R
Warehouses and Manufacturing Facilities
Warehouses and industrial manufacturing facilities frequently contain large work areas, heat-generating machinery, and production processes that require additional cooling.
The Airrex HSC-60R delivers 60,000 BTU/hr of cooling capacity to help manage elevated temperatures in specific areas without necessarily cooling an entire building.
Common applications include manufacturing workstations, assembly lines, industrial machinery, packing areas, maintenance facilities, and warehouse operations.
Its portable construction allows the unit to be repositioned as cooling requirements change.
Server Rooms and Data Center Cooling
Server rooms, networking equipment, and data centers generate substantial heat during continuous operation.
The Airrex HSC-60R can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, unexpected cooling failures, and facility expansions.
With 5 tons of nominal cooling capacity, this unit can be considered for IT environments requiring more cooling than smaller portable spot coolers can provide.
Proper equipment sizing, electrical service, condenser heat rejection, airflow distribution, and condensate drainage are especially important around sensitive IT equipment.
Learn more in our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Commercial and Healthcare Facilities
The HSC-60R can provide supplemental cooling for commercial buildings, healthcare support areas, large temporary workspaces, and suitable institutional facilities.
It is particularly useful when permanent HVAC equipment is undergoing maintenance or specific areas require additional cooling capacity.
Emergency and Temporary Air Conditioning
Unexpected HVAC failures can interrupt business operations, affect employee comfort, and expose temperature-sensitive equipment to excessive heat.
The Airrex HSC-60R provides a portable solution for temporary and emergency cooling when appropriately sized and installed.
It can also support planned HVAC maintenance, building renovations, equipment replacement, and industrial cooling projects.
Explore additional equipment options in our Portable AC & Spot Cooler Comparison Hub.
Airrex HSC-60R 220/3 Technical Specifications
| Specification | Airrex HSC-60R 220/3 |
|---|---|
| Cooling Capacity | 60,000 BTU/hr (5 Tons) |
| Refrigerant | R-454B |
| Power Supply | 220V / 60Hz / Three Phase |
| Cooling Current | 18.5 Amps |
| Fuse Size | 30 Amps |
| Cooling Airflow | 1,850 CFM |
| Condenser Airflow | 3,020 CFM |
| Cold-Air Discharge | Two 8-Inch Diameter Nozzles |
| Warm-Air Exhaust | 16-Inch Diameter |
| Maximum Cooling Ambient Temperature | 118°F |
| Dimensions (W × D × H) | 29″ × 54″ × 57″ |
| Weight | 628 lbs |
| Filters | Removable and Washable |
| Condensate Pump | Built-In |
| Mobility | Swivel Casters |
| Certification | ETL Listed |
| Product Warranty | 1-Year Limited |
| Compressor Warranty | 3-Year |
Specifications are based on the published HSC-60R 220/3 technical sheet. Actual cooling performance depends on ambient conditions, airflow, installation, and heat load.
Installation and Electrical Requirements
The Airrex HSC-60R 220/3 operates on 220V / 60Hz three-phase electrical power.
This model requires an appropriate three-phase electrical supply and cannot operate from a standard 115V outlet or 220V single-phase connection.
The published specifications list an 18.5A cooling current and a 30A fuse size. Electrical installation and circuit protection should follow the current equipment nameplate, manufacturer instructions, and applicable electrical codes.
Before ordering, customers should confirm that their facility has the correct voltage and phase.
Warm-Air Exhaust Requirements
The Airrex HSC-60R removes heat from the conditioned area and discharges it through a 16-inch warm-air exhaust outlet.
For effective cooling, condenser exhaust air must be directed away from the conditioned area to prevent unwanted heat buildup.
Compatible 16-inch flexible ducting and ceiling accessories can be used where the installation provides an appropriate exhaust path.
Built-In Condensate Management
The HSC-60R includes a built-in condensate pump to help remove collected condensation during operation.
This feature reduces the need for manual condensate removal and supports applications requiring extended cooling operation.
Condensate must be directed to an approved drainage location according to the manufacturer’s installation instructions.
Optional Accessories for the Airrex HSC-60R
The Airrex HSC-60R can be paired with accessories to improve installation flexibility, exhaust management, and cooling distribution.
Airrex 16-Inch Ceiling Tile Kit
The Airrex 16-inch ceiling tile kit is designed for high-capacity Airrex spot coolers and matches the HSC-60R’s 16-inch warm-air exhaust outlet.
The kit includes:
- 24″ × 24″ pre-cut ceiling tile
- 16-inch diameter flexible exhaust duct
- 8-foot duct length
This accessory allows warm condenser exhaust to be routed through a suspended ceiling installation when an appropriate discharge path is available.
View Airrex 16-Inch Ceiling Tile Kit
Flexible Cold-Air Ducting
Flexible cold-air ducting can help direct conditioned air toward specific workstations, equipment, and other areas requiring additional cooling.
The HSC-60R features dual 8-inch cold-air discharge nozzles that can accommodate appropriately sized air-distribution arrangements.
Contact Climate Control Solutions to confirm suitable duct sizes, available lengths, and installation requirements.
Browse Portable HVAC Accessories
Why Choose the Airrex HSC-60R 220/3?
The Airrex HSC-60R combines 60,000 BTU/hr of cooling capacity, commercial-grade construction, and portable convenience in a high-capacity industrial air conditioner.
Its 5-ton cooling capacity and dual discharge nozzles provide flexibility for demanding commercial and industrial applications.
The built-in condensate pump, washable filters, digital controls, and compatible 16-inch ceiling kit help make the HSC-60R a practical solution for facilities requiring substantial temporary or supplemental cooling.
Compare Other Airrex Portable Spot Coolers
Climate Control Solutions offers additional Airrex spot coolers for different cooling requirements:
- Airrex HSC-36R – 3-Ton Portable Spot Cooler — 36,000 BTU/hr cooling capacity for smaller industrial applications.
- Airrex HSC-60R 460/3 – 5-Ton Portable Spot Cooler — A separate 460V three-phase configuration for facilities requiring higher-voltage electrical service.
You can also browse all Airrex portable air conditioners to compare cooling capacities and electrical requirements.
Frequently Asked Questions About the Airrex HSC-60R
How many BTUs does the Airrex HSC-60R provide?
The Airrex HSC-60R 220/3 delivers 60,000 BTU/hr of nominal cooling capacity, equivalent to 5 tons of refrigeration.
How much space can the HSC-60R cool?
The HSC-60R can be evaluated for cooling areas up to approximately 2,000 square feet under suitable conditions.
Actual coverage depends on insulation, ceiling height, ventilation, internal equipment heat loads, and whether the unit is used for targeted spot cooling or enclosed-room cooling.
What electrical power does the HSC-60R 220/3 require?
The HSC-60R 220/3 operates on 220V / 60Hz three-phase power. The manufacturer’s technical sheet lists an 18.5A cooling current and a 30A fuse size.
Can the HSC-60R 220/3 operate on single-phase power?
No. This specific model is designed for 220V three-phase power. Customers should select the correct equipment configuration for their available electrical service.
What size ceiling kit does the HSC-60R use?
The HSC-60R has a 16-inch warm-air exhaust outlet and uses the compatible Airrex 16-inch ceiling tile kit.
Does the Airrex HSC-60R include a condensate pump?
Yes. The HSC-60R includes a built-in condensate pump for automatic condensate removal when connected to appropriate drainage.
Does the HSC-60R require exhaust ducting?
Warm condenser air must be discharged away from the conditioned space. Compatible exhaust ducting and ceiling kits are available for appropriate installations.
Can the HSC-60R cool a server room?
Yes. The HSC-60R can provide temporary or supplemental cooling for server rooms when properly sized and installed with suitable electrical service, exhaust management, and airflow distribution.
What refrigerant does the HSC-60R use?
The HSC-60R uses R-454B refrigerant, which has a lower global warming potential than R-410A.
What is the warranty on the Airrex HSC-60R?
The HSC-60R includes a 1-year limited product warranty and a 3-year compressor warranty, subject to manufacturer terms.
Buy the Airrex HSC-60R 220/3 from Climate Control Solutions
Climate Control Solutions supplies Airrex portable spot coolers and commercial cooling equipment nationwide.
Whether you’re purchasing one HSC-60R for a manufacturing facility or multiple units for an industrial cooling project, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact us for current pricing, availability, and bulk-order quotes.
