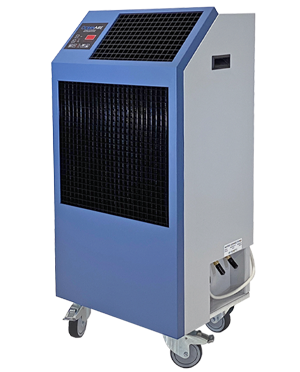

Oceanaire OWC1811QC – 1.5-Ton Water-Cooled Portable Air Conditioner
$5,198.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire OWC1811QC 1.5-Ton Water-Cooled Portable Air Conditioner delivers 18,000 BTU/hr of cooling for server rooms, offices, equipment rooms, and commercial facilities. Its quick-connect water fittings eliminate the need for conventional hot-air exhaust ducting.
Key Specifications:
- Cooling: 18,000 BTU/hr (1.5 Tons)
- Electrical: 115V / Single Phase
- Plug: NEMA 5-15P
- Airflow: 600 CFM
- Efficiency: 13.8 EER
- Condensate Pump: Built-In, 20′ Lift
- Water Connections: 3/8″ Quick Connect
Optional Accessories: 40′ Quick-Connect Hose Kit (HK-5QC), Hose Adapter (HA-SMQC), Dual 6″ Nozzles (2NK-2).
Browse Water-Cooled Portable AC Units
Nationwide shipping available. Contact us for pricing and availability.
Resources and Downloads
The OceanAire OWC1811QC 1.5-Ton Water-Cooled Portable Air Conditioner delivers 18,000 BTU/hr of commercial-grade cooling for offices, server rooms, equipment rooms, manufacturing facilities, and temporary HVAC applications. Featuring quick-connect water fittings, this portable water-cooled spot cooler eliminates the need to route hot condenser exhaust air through a ceiling panel or ventilation duct.
Operating on 115V / 60Hz single-phase electrical power, the OWC1811QC combines a 1.5 HP rotary compressor, 600 CFM of conditioned airflow, electronic temperature controls, and a built-in automatic condensate pump with up to 20 feet of vertical lift.
Its compact cabinet measures just 21.5 inches wide and 16 inches deep, making it useful for commercial environments where available floor space is limited.
The water-cooled refrigeration system requires a suitable condenser water supply and discharge connection. Optional quick-connect hose kits and adapters simplify integration with compatible water connections.
Whether you need supplemental cooling for an IT room, temporary air conditioning during HVAC maintenance, or targeted cooling for industrial equipment, the OceanAire OWC1811QC offers portable cooling without a conventional hot-air exhaust duct.
Key Features of the OceanAire OWC1811QC
- 18,000 BTU/hr Cooling Capacity: Delivers approximately 1.5 tons of cooling for commercial and industrial applications.
- Water-Cooled Condenser: Rejects condenser heat through water connections instead of a hot-air exhaust duct.
- Quick-Connect Water Fittings: Simplifies connection to compatible condenser water supply and discharge lines.
- 115V Single-Phase Operation: Uses a NEMA 5-15P plug with a properly rated electrical circuit.
- 600 CFM Conditioned Airflow: Delivers targeted cooling to workstations, equipment, and occupied commercial areas.
- 13.8 EER: Published cooling efficiency under the manufacturer’s specified operating conditions.
- 1.5 HP Rotary Compressor: Provides commercial-grade refrigeration performance.
- Built-In Condensate Pump: Automatically removes collected moisture with up to 20 feet of vertical lift.
- Electronic Temperature Controls: Solid-state controller with a large LED display.
- Six-Speed Fan Control: Manual and automatic airflow settings.
- Water-Regulating Valve: Controls condenser water flow in response to operating requirements.
- Compact Cabinet: Measures 21.5″ W × 16″ D × 45.7″ H.
- Portable Construction: Swivel casters with locking front wheels.
- Washable Electrostatic Air Filter: Removable filter for routine maintenance.
- Safety Features: High-pressure safety switch and condensate overflow alert.
- Optional 40-Foot Hose Kit: Compatible HK-5QC kit includes condenser water-in, water-out, and condensate drain hoses.
- Made in the USA: Manufactured by OceanAire.
Indoor use only. The OceanAire OWC1811QC is not approved for outdoor operation.
Why Choose a Water-Cooled Portable Air Conditioner?
Traditional air-cooled spot coolers remove heat from a room and reject it through a separate condenser-air stream.
That warm discharge air often needs to be directed through a ceiling kit, window adapter, or exhaust duct.
The OceanAire OWC1811QC uses a different approach.
Its condenser transfers heat to a water stream, allowing the unit to provide cooling without a conventional hot-air exhaust duct.
This makes it useful for enclosed commercial environments where suitable water connections are available but condenser exhaust ducting would be inconvenient.
Benefits of Water-Cooled Spot Cooling
- No conventional hot-air exhaust duct required
- Compact equipment footprint
- Suitable for enclosed commercial spaces
- Quick-connect condenser water connections
- Portable installation with appropriate water supply and discharge
- Built-in condensate management
Important: Water-cooled operation requires a compatible water supply, sufficient flow, and an acceptable method for handling the outgoing condenser water.
The unit is not a closed-loop system by itself. Any recirculating water arrangement must be designed with suitable external equipment.
Common Applications for the OceanAire OWC1811QC
Server Rooms and IT Equipment Cooling
Server rooms, network closets, and telecommunications facilities generate heat during continuous equipment operation.
The OceanAire OWC1811QC can provide temporary or supplemental cooling for properly sized IT spaces.
Its water-cooled condenser is particularly useful where conventional air-cooled spot cooler exhaust ducting is impractical.
Applications include:
- Temporary cooling during HVAC maintenance
- Supplemental cooling for networking equipment
- Server and communications rooms
- Emergency IT equipment cooling
- Localized cooling during equipment upgrades
An appropriate condenser water connection, condensate discharge location, and reliable electrical supply must be available.
Read our Portable Spot Coolers for Server Rooms Guide.
Commercial Offices and Retail Spaces
Commercial offices, retail stores, institutional facilities, and other indoor workspaces may need additional cooling during warm weather or HVAC maintenance.
The OWC1811QC provides targeted cooling for suitable spaces without requiring hot-air exhaust ducting.
Its 115V electrical configuration and compact cabinet make it practical where compatible power, water connections, and drainage are available.
Manufacturing and Industrial Equipment Rooms
Manufacturing equipment and industrial processes can create concentrated heat around workstations and machinery.
The OceanAire OWC1811QC can supply localized cooling for suitable light-industrial environments, maintenance areas, and equipment spaces.
Optional directional nozzles can help direct cooled air toward a selected location.
Temporary and Emergency HVAC Applications
The OWC1811QC can support temporary cooling during:
- Commercial HVAC repairs
- Equipment maintenance
- Office renovations
- Temporary IT installations
- Seasonal supplemental cooling
- Emergency air conditioning failures
Because it requires condenser water connections, installation suitability should be confirmed before deployment.
Explore Commercial Climate Control Solutions
OceanAire OWC1811QC Technical Specifications
| Specification | OceanAire OWC1811QC |
|---|---|
| Cooling Capacity | 18,000 BTU/hr (1.5 Tons) |
| Equipment Type | Water-Cooled Portable Air Conditioner |
| Operation | Cooling Only |
| Electrical Supply | 115V / 60Hz / Single Phase |
| Rated Current | 11.3 Amps |
| Inrush Current | 69 Amps |
| Power Consumption | 1,300 Watts |
| Plug Type | NEMA 5-15P with LCDI |
| Energy Efficiency Ratio | 13.8 EER |
| Compressor Type | Rotary |
| Compressor Horsepower | 1.5 HP |
| Compressor LRA | 63 Amps |
| Refrigerant | R-410A |
| Refrigerant Charge | 18 oz |
| Evaporator Airflow — High | 600 CFM |
| Evaporator Motor | 1/8 HP |
| Water Inlet Connection | 3/8″ Quick Connect |
| Water Outlet Connection | 3/8″ Quick Connect |
| Condensate Drain Connection | 1/4″ Quick Connect |
| Condensate Removal | Built-In Automatic Pump |
| Condensate Pump Lift | 20 Feet |
| Estimated Water Flow at 60°F | 1.1 GPM |
| Estimated Water Flow at 85°F | 4.5 GPM |
| Cooling Ambient Range | 65°F–105°F |
| Width | 21.5″ |
| Depth | 16″ |
| Height | 45.7″ |
| Net Weight | 155 lbs |
| Temperature Controls | Solid-State Electronic Controller |
| Fan Settings | Six Speeds, Manual or Automatic |
| Water Control | Water-Regulating Valve |
| Air Filter | Washable Electrostatic |
| Mobility | Swivel Casters with Locking Front Wheels |
| Outdoor Operation | Not Approved |

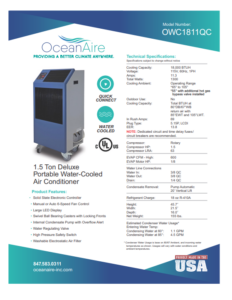

Specifications reflect OceanAire’s published OWC1811QC technical sheet. Actual condenser water flow varies with incoming water temperature, water conditions, and cooling load. Verify installation requirements before ordering.
Quick-Connect Water Connections
One of the primary advantages of the OceanAire OWC1811QC is its factory quick-connect water fitting arrangement.
The unit includes three separate connections:
Condenser Water Inlet — 3/8″ Quick Connect
The inlet supplies water to the refrigeration system’s water-cooled condenser.
The water source must provide suitable flow, pressure, temperature, and water quality according to the manufacturer’s requirements.
Condenser Water Outlet — 3/8″ Quick Connect
The outlet carries condenser water away from the unit after it has absorbed heat from the refrigeration system.
The outlet must be connected to an acceptable return or discharge arrangement.
Condensate Drain — 1/4″ Quick Connect
The condensate drain removes moisture collected by the evaporator.
The OWC1811QC includes an internal automatic condensate pump with up to 20 feet of vertical lift.
Condensate must be routed to a suitable drainage location.
Condenser Water Requirements
The OceanAire OWC1811QC uses condenser water to remove heat from the refrigeration system.
Published estimated water requirements include:
| Entering Water Temperature | Estimated Flow |
|---|---|
| 60°F | 1.1 GPM |
| 85°F | 4.5 GPM |
These figures are based on the manufacturer’s stated test conditions.
Actual condenser water consumption varies with water temperature, operating conditions, and cooling demand.
A suitable water supply and discharge arrangement must be available before operating the unit.
Electrical Requirements
The OWC1811QC operates on 115V / 60Hz single-phase power.
It uses a NEMA 5-15P plug with LCDI protection.
Published electrical specifications include:
- Rated Current: 11.3 Amps
- Inrush Current: 69 Amps
- Power Consumption: 1,300 Watts
- Plug Type: NEMA 5-15P
OceanAire recommends a dedicated electrical circuit with appropriately rated time-delay fuses or circuit breakers.
Confirm electrical compatibility with the current equipment nameplate before installation.
Built-In Automatic Condensate Pump
The OWC1811QC includes an internal automatic condensate pump.
Unlike portable air conditioners that rely on a manually emptied condensate tank, this unit can automatically discharge collected moisture through its 1/4-inch quick-connect drain connection.
The manufacturer’s published pump lift is up to 20 feet vertically.
The system includes a condensate overflow alert for added protection.
A compatible drain hose and appropriate drainage location are required.
Optional Accessories for the OceanAire OWC1811QC
OceanAire identifies several accessories specifically for the OWC1811QC.
40-Foot Quick-Connect Hose Kit — HK-5QC
The OceanAire HK-5QC hose kit is designed for portable water-cooled air conditioners equipped with quick-connect fittings.
The kit includes three hoses:
- Water In: 3/8″ quick connect, black
- Water Out: 3/8″ quick connect, red
- Condensate Drain: 1/4″ quick connect, yellow
The condenser water hoses use reinforced PVC tubing, while the condensate hose uses gray reinforced PVC.
Manufacturer Part Number: HK-5QC
Contact Climate Control Solutions for pricing and availability.
Quick-Connect Hose Adapter — HA-SMQC
The HA-SMQC adapter provides a transition from the manufacturer’s quick-connect fitting to a garden-hose connection.
This accessory may be useful for installations requiring compatible garden-hose-style water connections.
Manufacturer Part Number: HA-SMQC
Contact Climate Control Solutions for pricing and availability.
Dual 6-Inch Nozzle Kit — 2NK-2
The 2NK-2 nozzle kit provides two 6-inch directional outlets.
This accessory helps direct cooled airflow toward equipment, workstations, or other localized areas.
Manufacturer Part Number: 2NK-2
Contact Climate Control Solutions for pricing and availability.
Evaporator Return-Air Plenum — 2DEP-12
The 2DEP-12 plenum supports ducted return air for applications where air must be routed back to the unit.
Manufacturer Part Number: 2DEP-12
Contact Climate Control Solutions for pricing and availability.
Discharge Duct Adapter — 2DDA-10
The 2DDA-10 adapter supports compatible extended conditioned-air discharge ducting arrangements.
Confirm the duct connection, allowable length, and airflow restrictions before ordering.
Manufacturer Part Number: 2DDA-10
Contact Climate Control Solutions for pricing and availability.
Browse Commercial HVAC Accessories
Why Choose the OceanAire OWC1811QC?
The OceanAire OWC1811QC combines 18,000 BTU/hr of cooling with a compact water-cooled design and quick-connect fittings.
Its ability to reject heat through condenser water rather than hot-air exhaust ducting makes it useful in commercial spaces with suitable water connections.
The 115V electrical configuration, 600 CFM airflow, electronic temperature controls, washable filter, locking casters, and built-in condensate pump provide flexibility for temporary and supplemental cooling applications.
Compare Other Commercial Portable Air Conditioners
Climate Control Solutions supplies additional portable cooling equipment for different installation requirements.
- OceanAire OWC1811: Standard water-cooled version with conventional water connections rather than the QC configuration.
- OceanAire 2OAC1811 – 1.5-Ton Air-Cooled Spot Cooler — Air-cooled alternative for locations where condenser water is unavailable.
- Browse Water-Cooled Portable Air Conditioners — Compare additional water-cooled commercial cooling options.
Frequently Asked Questions About the OceanAire OWC1811QC
How much cooling capacity does the OWC1811QC provide?
The OceanAire OWC1811QC delivers 18,000 BTU/hr of cooling capacity, approximately 1.5 tons.
Does the OWC1811QC require exhaust ducting?
No conventional hot-air exhaust duct is required because the condenser rejects heat through water.
A suitable condenser water supply and outlet/discharge arrangement are required.
What are the quick-connect fitting sizes?
The unit has 3/8-inch quick-connect condenser water inlet and outlet connections and a 1/4-inch quick-connect condensate drain.
Does the OWC1811QC include hoses?
OceanAire offers the HK-5QC 40-foot hose kit as an optional accessory. Confirm the hoses included with your specific purchase package.
How much water does the OWC1811QC use?
The manufacturer’s estimated condenser water flow is 1.1 GPM at 60°F entering water temperature and 4.5 GPM at 85°F entering water temperature.
Actual flow requirements vary with operating conditions.
Does the OWC1811QC include a condensate pump?
Yes. The unit includes an automatic condensate pump capable of up to 20 feet of vertical lift.
What electrical power does the OWC1811QC require?
The unit operates on 115V / 60Hz single-phase power and uses a NEMA 5-15P plug with LCDI protection.
Can the OWC1811QC cool a server room?
Yes. It can provide temporary or supplemental cooling for appropriately sized IT rooms with suitable electrical service, condenser water connections, and drainage.
Can the OWC1811QC be used outdoors?
No. OceanAire specifies that this unit is not approved for outdoor operation.
What is the difference between the OWC1811 and OWC1811QC?
Both are 1.5-ton water-cooled air conditioners. The QC model uses quick-connect water fittings, while the standard OWC1811 uses conventional flare-type water connections.
What refrigerant does the OWC1811QC use?
The supplied manufacturer specification sheet lists R-410A refrigerant with an 18-ounce charge.
Request a Quote for the OceanAire OWC1811QC
Climate Control Solutions supplies OceanAire water-cooled portable air conditioners, commercial spot coolers, and temporary HVAC equipment nationwide.
Whether you need one OWC1811QC for an IT room or multiple units for a commercial facility, our team can assist with equipment selection, quick-connect hose accessories, water requirements, and freight arrangements.
Contact Climate Control Solutions for current pricing, availability, and compatible accessories.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Related products
Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
