Oceanaire OWC3612QC Series – 3-Ton Water-Cooled Portable Air Conditioner
$6,250.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire OWC3612QC Series 3-Ton Water-Cooled Portable Air Conditioner delivers 36,100 BTU/hr of cooling for server rooms, commercial facilities, and industrial applications. Factory quick-connect water fittings eliminate the need for conventional hot-air exhaust ducting.
Key Specifications:
- Cooling: 36,100 BTU/hr (3 Tons)
- Power: 208–230V Single/Three Phase or 460V Three Phase
- Airflow: 1,200 CFM
- Condensate Pump: Built-In, 20′ Lift
- Water Connections: 3/4″ Quick Connect
Select Your Model:
- OWC3612QC: 208–230V / 1-Phase / NEMA 6-20P
- OWC3632QC: 208–230V / 3-Phase / NEMA L15-20P
- OWC3634QC: 460V / 3-Phase / NEMA L16-20P
Optional Accessories: 40′ Hose Kit (HK-6QC), Hose Adapter (HA-LGQC).
Nationwide shipping available. Contact us for pricing and availability.

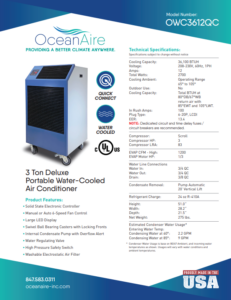

Resources and Downloads
The OceanAire OWC3612QC Series 3-Ton Water-Cooled Portable Air Conditioner delivers 36,100 BTU/hr of cooling for commercial, industrial, and temporary HVAC applications. Featuring factory quick-connect water fittings, these portable water-cooled spot coolers provide high-capacity cooling without the need for conventional hot-air exhaust ducting.
Available in 208–230V single-phase, 208–230V three-phase, and 460V three-phase configurations, the OceanAire 3-ton QC series offers electrical flexibility for offices, data centers, manufacturing facilities, equipment rooms, and commercial buildings.
Each model features a 3 HP scroll compressor, 1,200 CFM of conditioned airflow, electronic temperature controls, and a built-in automatic condensate pump with up to 20 feet of vertical lift.
The water-cooled condenser transfers heat into a connected water stream instead of releasing hot condenser air into the conditioned space. Factory quick-connect fittings simplify connection to compatible water supply, discharge, and condensate drain hoses.
Whether you need emergency cooling for critical equipment, supplemental cooling for a commercial facility, or temporary air conditioning during HVAC maintenance, the OceanAire OWC3612QC Series provides versatile, high-capacity cooling in a portable commercial design.
Key Features of the OceanAire OWC3612QC Series
- 36,100 BTU/hr Cooling Capacity: Delivers approximately 3 tons of cooling for commercial and industrial environments.
- Three Electrical Configurations: Choose from 208–230V single-phase, 208–230V three-phase, or 460V three-phase power.
- Water-Cooled Condenser: Eliminates the need for conventional hot-air exhaust ducting.
- Factory Quick-Connect Fittings: Simplify connections to compatible water supply and discharge hoses.
- 3 HP Scroll Compressor: Provides commercial-grade refrigeration performance.
- 1,200 CFM Conditioned Airflow: Delivers targeted cooling for workstations, equipment, and commercial spaces.
- 13.4 EER: Published cooling efficiency under the manufacturer’s specified operating conditions.
- Built-In Condensate Pump: Automatically removes moisture with up to 20 feet of vertical lift.
- Electronic Temperature Controls: Solid-state controller with a large LED display.
- Six-Speed Fan Control: Automatic and manual airflow adjustments.
- Water-Regulating Valve: Helps manage condenser water flow during operation.
- Compact Portable Cabinet: Measures 28.2 inches wide and 21.5 inches deep.
- Locking Swivel Casters: Allow the equipment to be repositioned on suitable indoor surfaces.
- Washable Electrostatic Air Filters: Provide convenient routine maintenance.
- Safety Features: High-pressure protection, condensate overflow alert, and phase monitoring on applicable three-phase models.
- Optional Quick-Connect Hose Kit: Compatible 40-foot water supply, outlet, and condensate drain hose accessories.
- Made in the USA: Manufactured by OceanAire.
Indoor use only. These OceanAire water-cooled portable air conditioners are not approved for outdoor operation.
Available Models and Electrical Configurations
The OceanAire 3-ton QC series includes three power configurations. All provide 36,100 BTU/hr of rated cooling, but their electrical requirements differ.
OceanAire OWC3612QC — 208–230V Single Phase
The OWC3612QC is designed for commercial facilities with compatible 208–230V single-phase electrical service.
This configuration is suitable for applications requiring approximately 3 tons of water-cooled portable cooling without three-phase power.
Electrical Specifications:
- Power Supply: 208–230V / 60Hz / Single Phase
- Rated Current: 12 Amps
- Inrush Current: 100 Amps
- Plug: NEMA 6-20P with LCDI
- Net Weight: 275 lbs
A compatible NEMA 6-20 receptacle and properly rated electrical circuit are required.
OceanAire OWC3632QC — 208–230V Three Phase
The OWC3632QC provides the same 36,100 BTU/hr cooling capacity in a three-phase configuration.
It is designed for commercial and industrial facilities with compatible 208–230V three-phase electrical service.
Electrical Specifications:
- Power Supply: 208–230V / 60Hz / Three Phase
- Rated Current: 9.3 Amps
- Inrush Current: 80 Amps
- Plug: NEMA L15-20P
- Net Weight: 275 lbs
This model uses a locking NEMA electrical plug rather than a standard hardwired connection.
OceanAire OWC3634QC — 460V Three Phase
The OWC3634QC is designed for industrial and commercial facilities equipped with 460V three-phase power.
It provides the same nominal cooling capacity and water-cooled operation as the other configurations.
Electrical Specifications:
- Power Supply: 460V / 60Hz / Three Phase
- Rated Current: 4.7 Amps
- Inrush Current: 48 Amps
- Plug: NEMA L16-20P
- Net Weight: 310 lbs
The 460V configuration requires compatible three-phase electrical service and a NEMA L16-20 receptacle.
Why Choose a Water-Cooled Portable Air Conditioner?
Traditional air-cooled spot coolers remove heat from a room and reject it through a separate stream of hot condenser air.
That heat typically needs to be directed away from the cooled area through suitable exhaust ducting or another ventilation arrangement.
The OceanAire OWC3612QC Series uses water to remove condenser heat.
This eliminates the need for a conventional hot-air exhaust duct and allows the unit to operate in suitable enclosed spaces where condenser water connections are available.
Water-cooled operation is particularly useful in commercial buildings, equipment rooms, and industrial facilities where installing or routing condenser exhaust ducting would be impractical.
Benefits of Water-Cooled Spot Cooling
- No conventional hot-air exhaust duct required
- High-capacity cooling for enclosed commercial areas
- Quick-connect water connections
- Three electrical configurations
- Built-in automatic condensate removal
- Compact portable cabinet
- Optional directional air-distribution accessories
Important: These units require a suitable condenser water supply, adequate water flow, and an acceptable condenser water outlet or discharge arrangement.
The units do not independently provide a closed-loop condenser water system.
Common Applications for the OceanAire 3-Ton QC Series
Server Rooms and Data Centers
Server rooms, network equipment, and telecommunications facilities generate substantial heat during continuous operation.
The OceanAire OWC3612QC Series can provide temporary or supplemental cooling for properly sized IT environments.
Its water-cooled condenser is especially useful in equipment rooms where conventional hot-air exhaust ducting would be difficult to install.
Common applications include:
- Emergency cooling during HVAC failures
- Supplemental server-room cooling
- Networking and telecommunications equipment rooms
- Temporary cooling during equipment replacement
- Cooling during IT infrastructure upgrades
Proper cooling-load calculations, electrical compatibility, water supply requirements, and condensate drainage should be confirmed before installation.
Read our Portable Spot Coolers for Server Rooms Guide.
Warehouses and Manufacturing Facilities
Manufacturing equipment and industrial processes can generate localized heat around production areas, workstations, and machinery.
The OWC3612QC Series provides approximately 3 tons of cooling for suitable industrial applications.
Potential uses include:
- Manufacturing equipment cooling
- Industrial workstations
- Assembly and packaging operations
- Maintenance rooms
- Equipment and process support areas
- Temporary HVAC replacement
Optional directional nozzle kits can help deliver conditioned air toward specific work areas.
Commercial Offices and Institutional Facilities
Commercial offices, retail facilities, universities, and institutional buildings may require additional cooling during periods of increased heat load or HVAC maintenance.
The OceanAire 3-ton QC series provides portable cooling without conventional condenser exhaust ducting.
Its available electrical configurations allow customers to select the appropriate model for the building’s electrical service.
Laboratories and Specialized Equipment Spaces
Laboratories, testing facilities, and commercial equipment rooms may require supplemental cooling for appropriate noncritical areas.
The OWC3612QC Series can provide portable cooling when compatible electrical, water supply, and drainage connections are available.
Specialized applications should be evaluated for their specific temperature, humidity, water quality, and operational requirements.
Emergency and Temporary HVAC Applications
The OceanAire 3-ton water-cooled series can support temporary cooling during:
- Commercial HVAC failures
- Equipment maintenance and replacement
- Server-room cooling emergencies
- Building renovations
- Industrial shutdowns
- Seasonal supplemental cooling
Explore Commercial Climate Control Solutions
OceanAire OWC3612QC Series Technical Specifications
| Specification | OWC3612QC | OWC3632QC | OWC3634QC |
|---|---|---|---|
| Cooling Capacity | 36,100 BTU/hr | 36,100 BTU/hr | 36,100 BTU/hr |
| Nominal Capacity | 3 Tons | 3 Tons | 3 Tons |
| Equipment Type | Water-Cooled AC | Water-Cooled AC | Water-Cooled AC |
| Electrical Supply | 208–230V / 1-Phase | 208–230V / 3-Phase | 460V / 3-Phase |
| Rated Current | 12A | 9.3A | 4.7A |
| Inrush Current | 100A | 80A | 48A |
| Plug Type | NEMA 6-20P | NEMA L15-20P | NEMA L16-20P |
| Power Consumption | 2,700W | 2,700W | 2,700W |
| EER | 13.4 | 13.4 | 13.4 |
| Compressor Type | Scroll | Scroll | Scroll |
| Compressor Horsepower | 3 HP | 3 HP | 3 HP |
| Compressor LRA | 83A | 77A | 35A |
| Evaporator Airflow | 1,200 CFM | 1,200 CFM | 1,200 CFM |
| Refrigerant — Referenced Version | R-410A | R-410A | R-410A |
| Refrigerant Charge | 24 oz | 24 oz | 24 oz |
| Water Inlet | 3/4″ QC | 3/4″ QC | 3/4″ QC |
| Water Outlet | 3/4″ QC | 3/4″ QC | 3/4″ QC |
| Condensate Drain | 3/8″ QC | 3/8″ QC | 3/8″ QC |
| Condensate Pump | Built-In | Built-In | Built-In |
| Condensate Pump Lift | 20 Feet | 20 Feet | 20 Feet |
| Estimated Water Flow at 60°F | 2.2 GPM | 2.2 GPM | 2.2 GPM |
| Estimated Water Flow at 85°F | 9.0 GPM | 9.0 GPM | 9.0 GPM |
| Cooling Ambient Range | 65°F–105°F | 65°F–105°F | 65°F–105°F |
| Width | 28.2″ | 28.2″ | 28.2″ |
| Depth | 21.5″ | 21.5″ | 21.5″ |
| Height | 51″ | 51″ | 51″ |
| Net Weight | 275 lbs | 275 lbs | 310 lbs |
| Outdoor Operation | Not Approved | Not Approved | Not Approved |
Specifications reflect OceanAire’s published R-410A equipment configurations. Current specifications may differ by production revision. Verify the model nameplate, refrigerant, electrical requirements, and water connections before ordering.
Quick-Connect Water Fittings
The OceanAire OWC3612QC Series includes factory quick-connect fittings for condenser water supply, condenser water outlet, and condensate drainage.
Condenser Water Inlet — 3/4″ Quick Connect
The water inlet supplies water to the condenser, allowing the refrigeration system to transfer heat into the water stream.
A suitable water source must provide adequate temperature, pressure, flow, and water quality.
Condenser Water Outlet — 3/4″ Quick Connect
The outlet carries condenser water away after it has absorbed heat from the refrigeration system.
It must connect to an appropriate water discharge or return arrangement.
Condensate Drain — 3/8″ Quick Connect
The condensate drain removes moisture collected during cooling operation.
Each model includes a built-in automatic condensate pump with up to 20 feet of vertical lift.
A compatible condensate hose and drainage location are required.
Condenser Water Flow Requirements
The OWC3612QC Series uses condenser water to reject heat removed from the conditioned area.
Published estimated flow requirements include:
| Entering Water Temperature | Estimated Water Flow |
|---|---|
| 60°F | 2.2 GPM |
| 85°F | 9.0 GPM |
These estimates are based on the manufacturer’s published rating conditions.
Actual water usage depends on entering water temperature, operating load, and water conditions.
The units include a water-regulating valve to help control water flow during operation.
Before ordering, verify that the installation can provide suitable condenser water and an acceptable water discharge or return connection.
Electrical Requirements
The OceanAire 3-ton QC series includes three electrical configurations.
| Model | Electrical Service | Plug | Compatible Receptacle |
|---|---|---|---|
| OWC3612QC | 208–230V Single Phase | NEMA 6-20P | NEMA 6-20R |
| OWC3632QC | 208–230V Three Phase | NEMA L15-20P | NEMA L15-20R |
| OWC3634QC | 460V Three Phase | NEMA L16-20P | NEMA L16-20R |
All three versions require a properly rated electrical supply.
The 208–230V single-phase model includes an LCDI-protected electrical cord, while the three-phase models use locking plugs.
OceanAire recommends a dedicated circuit with appropriate time-delay fuses or circuit breakers.
Electrical requirements should be confirmed against the current equipment nameplate and installation documentation.
The three power configurations are not interchangeable. Always confirm available voltage and phase before selecting a model.
Built-In Automatic Condensate Pump
All three OWC3612QC Series models include an internal automatic condensate pump.
The pump provides up to 20 feet of vertical lift, allowing collected moisture to be routed to a suitable drainage location.
The unit also includes a condensate overflow alert.
Unlike portable spot coolers that require frequent manual tank emptying, these water-cooled units provide automatic condensate removal.
A compatible drain hose and acceptable drainage location are required.
Optional Accessories for the OceanAire OWC3612QC Series
OceanAire offers several accessories for the 3-ton quick-connect water-cooled models.
OceanAire 40-Foot Quick-Connect Hose Kit — HK-6QC
The HK-6QC is designed for OceanAire water-cooled portable air conditioners with compatible quick-connect fittings.
The kit includes three hoses:
- Water In: Black-labeled reinforced PVC hose
- Water Out: Red-labeled reinforced PVC hose
- Condensate Drain: Yellow-labeled reinforced PVC hose
The manufacturer identifies 5/8-inch reinforced PVC hose tubing for water supply and return and 3/8-inch hose tubing for condensate drainage.
Manufacturer Part Number: HK-6QC
The manufacturer’s optional hose kit is separate from the factory quick-connect fittings. Confirm the hoses included with the quoted equipment package.
OceanAire Quick-Connect Hose Adapter — HA-LGQC
The HA-LGQC provides a transition from compatible quick-connect fittings to a garden-hose-style connection.
Manufacturer Part Number: HA-LGQC
Contact Climate Control Solutions for pricing and availability.
OceanAire Directional Nozzle Kit — 2NK-3
The 2NK-3 nozzle kit helps direct conditioned airflow toward workstations, equipment, and other localized cooling areas.
Manufacturer Part Number: 2NK-3
Contact Climate Control Solutions for nozzle dimensions, pricing, and availability.
OceanAire Evaporator Return-Air Plenum — DEP-16
The DEP-16 plenum supports applications requiring return air to be ducted back to the evaporator.
Manufacturer Part Number: DEP-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-16
The 2DDA-16 adapter supports compatible extended conditioned-air ducting arrangements.
It does not replace the condenser water connections.
Manufacturer Part Number: 2DDA-16
Contact Climate Control Solutions for pricing and availability.
Browse Commercial HVAC Accessories
Why Choose the OceanAire OWC3612QC Series?
The OceanAire OWC3612QC Series combines 36,100 BTU/hr cooling capacity with three electrical configurations and convenient quick-connect water fittings.
Its water-cooled condenser eliminates the need for conventional hot-air exhaust ducting, making it useful in facilities with available water connections but limited options for condenser exhaust routing.
Each configuration includes a 3 HP scroll compressor, 1,200 CFM of airflow, electronic controls, locking swivel casters, washable filters, and a built-in condensate pump.
Compare Other Portable Air Conditioners
Climate Control Solutions offers additional portable cooling equipment for different capacities and installation requirements:
- OceanAire OWC2412QC — 2-Ton Water-Cooled Portable AC — Smaller-capacity quick-connect model.
- OceanAire OWC6012QC Series — 5-Ton Water-Cooled Portable AC — Higher-capacity water-cooled alternative.
- OceanAire 2OAC3612 Series — 3-Ton Air-Cooled Portable AC — Air-cooled alternative where suitable condenser water is unavailable.
Browse Water-Cooled Portable Air Conditioners
Frequently Asked Questions About the OceanAire OWC3612QC Series
How much cooling capacity does the OWC3612QC Series provide?
All three models deliver 36,100 BTU/hr of cooling, approximately 3 tons.
What is the difference between OWC3612QC, OWC3632QC, and OWC3634QC?
The main differences are voltage, phase, electrical current, plug type, and the higher weight of the 460V model.
The OWC3612QC uses 208–230V single-phase power, the OWC3632QC uses 208–230V three-phase power, and the OWC3634QC uses 460V three-phase power.
Are the three-phase models hardwired?
No. OceanAire specifies locking NEMA plugs.
The OWC3632QC uses NEMA L15-20P, and the OWC3634QC uses NEMA L16-20P.
Does the OWC3612QC Series require exhaust ducting?
No conventional hot-air exhaust duct is required because the units transfer condenser heat into a water stream.
Suitable condenser water supply and outlet connections are still required.
What quick-connect fittings do these models use?
The published configurations use 3/4-inch condenser water inlet and outlet quick connects and a 3/8-inch condensate drain quick connect.
Are the quick-connect hoses included?
OceanAire lists the HK-6QC 40-foot hose kit as an optional accessory. Confirm whether it is included in the quoted equipment package.
How much condenser water do these models require?
The manufacturer estimates approximately 2.2 GPM with 60°F entering water and 9.0 GPM with 85°F entering water.
Actual requirements vary with operating conditions.
Do these units include a condensate pump?
Yes. All three configurations include a built-in automatic condensate pump with up to 20 feet of vertical lift.
Can these units cool server rooms?
Yes. They can support temporary or supplemental cooling for properly sized server rooms with suitable electrical service, condenser water supply, and drainage.
Are these units approved for outdoor use?
No. The manufacturer specifies indoor operation only.
What refrigerant do these units use?
The referenced manufacturer specifications list R-410A. Confirm the refrigerant used in the current equipment revision before ordering or servicing.
Request a Quote for the OceanAire OWC3612QC Series
Climate Control Solutions supplies OceanAire water-cooled portable air conditioners, commercial spot coolers, and temporary cooling equipment nationwide.
Whether you need the 208–230V single-phase OWC3612QC, the 208–230V three-phase OWC3632QC, or the 460V three-phase OWC3634QC, our team can assist with electrical configuration, water requirements, quick-connect hose accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, and project-specific quotes.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Related products
Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
