OceanAire 20ACH3612 Deluxe Portable Heat Pump & Spot Cooling Commercial Air Conditioner
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 20ACH3612 is a 230V portable heat pump and spot cooler delivering 36,000 BTU cooling and 32,500 BTU heating. Designed for industrial, commercial, and data environments needing powerful, year-round climate control.
OceanAire 20ACH3612 Deluxe Portable Heat Pump & Spot Cooling Commercial Air Conditioner
High-capacity portable cooling and heating solution for industrial, commercial, and data environments.
The OceanAire 20ACH3612 delivers 36,050 BTU/h cooling and 32,500 BTU/h heating performance in a durable, self-contained 208–230V package. With a powerful scroll compressor, ductable airflow, and onboard condensate tank, it’s built for heavy-duty, year-round operation in demanding environments.
Model: 20ACH3612 · Category: Portable Heat Pump / Spot Cooler
Note: Not approved for outdoor use.

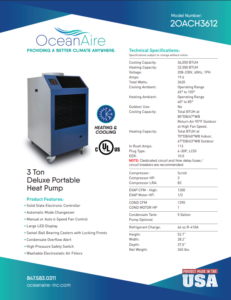

Technical Specifications
| Cooling Capacity | 36,050 BTU/h (80°F DB / 67°F WB return, 95°F outdoor, high fan) |
|---|---|
| Heating Capacity | 32,500 BTU/h (70°F DB / 60°F WB indoor, 47°F DB / 43°F WB outdoor) |
| EER | 10.0 (high fan; condenser discharge ducted to another area) |
| Voltage | 208–230 V, 60 Hz, 1-Ph |
| Amps | 19.6 A (total); In-Rush 113 A |
| Total Watts | 3,620 W |
| Plug Type | NEMA 6-30P, LCDI |
| Compressor | 3 HP Scroll (LRA 83) |
| Refrigerant | R-410A, 66 oz charge |
| Evaporator Airflow | 1,200 CFM (High; free discharge) |
| Condenser Airflow | 1,390 CFM |
| Evap / Cond Fan Motor | Evap: 1/3 HP · Cond: 1 HP |
| Condensate | 5-gallon internal tank |
| Cooling Ambient Range | 65°F to 105°F |
| Heating Ambient Range | 40°F to 85°F |
| Dimensions (L × W × H) | 37.0″ × 28.2″ × 52.7″ |
| Net Weight | 365 lbs |
Recommendation: Use a dedicated circuit with time-delay fuses or circuit breakers.
Built for Heavy-Duty Performance
- Scroll Compressor — durable and efficient for continuous-duty commercial use.
- High Airflow — 1,200 CFM evaporator and 1,390 CFM condenser for rapid temperature control.
- Dual-Mode Functionality — heating and cooling in one rugged portable system.
- 5-Gallon Condensate Tank — reduces maintenance for extended operation.
Ideal Applications
- Data Centers & Server Rooms — precision spot cooling for critical systems.
- Industrial Workspaces — localized heating or cooling for high-demand environments.
- Temporary Structures — dependable comfort for events, tents, or construction trailers.
- Manufacturing Facilities — controls temperature-sensitive equipment and processes.
Why Choose the OceanAire 20ACH3612?
- Powerful 3 HP Scroll Compressor — delivers strong, reliable performance under load.
- Energy Efficiency — 10.0 EER rating for cost-effective operation.
- Easy Setup — plug-and-play 230V connection for quick deployment.
