OceanAire 2OACH6032: 5-Ton Portable Heat Pump & Spot Cooler
$12,000.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OACH6032 5-Ton Portable Heat Pump delivers 60,100 BTU/hr of cooling and 53,500 BTU/hr of heating for warehouses, manufacturing facilities, server rooms, and commercial applications. Its 208–230V three-phase configuration provides high-capacity heating and cooling in one portable unit.
Key Specifications:
- Cooling Capacity: 60,100 BTU/hr (5 Tons)
- Heating Capacity: 53,500 BTU/hr
- Electrical: 208–230V / Three Phase
- Plug: NEMA L15-30P
- Airflow: 1,950 CFM
- Condensate Pump: Built-In
Optional Accessories:
16″ Ceiling Kit (CK-16) | Dual 8″ Nozzle Kit (2NK-3)
Nationwide shipping available. Contact us for pricing and availability.

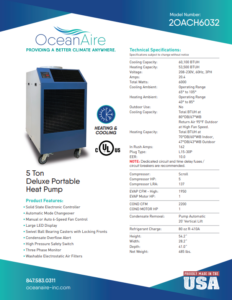

Resources and Downloads
The OceanAire 2OACH6032 5-Ton Portable Heat Pump delivers 60,100 BTU/hr of cooling and 53,500 BTU/hr of heating for demanding commercial and industrial environments. Designed for temporary and supplemental climate control, this deluxe portable heat pump is ideal for warehouses, manufacturing facilities, server rooms, equipment rooms, and commercial buildings.
Operating on 208–230V / 60Hz three-phase power with a NEMA L15-30P locking plug, the 2OACH6032 combines high-capacity heating and cooling in one portable system. It features a 5 HP scroll compressor, 1,950 CFM of conditioned airflow, electronic temperature controls, washable air filters, and a built-in automatic condensate pump.
Whether you need emergency cooling during HVAC maintenance, supplemental heating for an industrial facility, or temporary temperature control for a commercial project, the OceanAire 2OACH6032 offers year-round flexibility.
Key Features of the OceanAire 2OACH6032
- 60,100 BTU/hr Cooling Capacity: Provides approximately 5 tons of cooling for commercial and industrial applications.
- 53,500 BTU/hr Heating Capacity: Delivers supplemental heating for workplaces, equipment areas, and temporary HVAC installations.
- 208–230V Three-Phase Operation: Designed for facilities with compatible 208–230V / 60Hz three-phase electrical service.
- NEMA L15-30P Plug: Uses a locking electrical connection for compatible three-phase receptacles.
- 5 HP Scroll Compressor: Commercial-grade compressor designed for high-capacity cooling and heating applications.
- High-Capacity Airflow: Provides 1,950 CFM of evaporator airflow and 2,200 CFM of condenser airflow.
- Automatic Heating and Cooling Changeover: Electronic controls switch between heating and cooling modes as required.
- Built-In Condensate Pump: Automatically removes collected condensation with up to 20 feet of vertical lift.
- Six-Speed Fan Control: Automatic fan-speed operation with manual override.
- Digital Temperature Controls: Solid-state electronic controller with a large LED display.
- Portable Industrial Construction: Heavy-duty swivel casters with front locking wheels.
- Washable Air Filters: Removable electrostatic filters simplify routine maintenance.
- Safety Features: Includes high-pressure protection, condensate overflow alert, and three-phase monitoring.
- Optional Accessories: Compatible with OceanAire ceiling panel kits, nozzle kits, return-air plenums, and duct adapters.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The 2OACH6032 is not approved for outdoor operation.
Common Applications for the OceanAire 2OACH6032
Warehouses and Manufacturing Facilities
Warehouses and manufacturing facilities frequently require supplemental cooling during warmer months and additional heating during colder conditions.
The OceanAire 2OACH6032 provides both functions in one portable unit, making it useful for production areas, industrial workstations, assembly operations, packaging facilities, and maintenance areas.
Its 5-ton cooling capacity and high airflow make it an option for larger workspaces requiring more output than smaller portable spot coolers.
The unit can be repositioned as heating and cooling requirements change.
Server Rooms and Data Center Cooling
Server rooms, networking equipment, and telecommunications facilities generate substantial heat during continuous operation.
The OceanAire 2OACH6032 can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 60,100 BTU/hr cooling capacity makes it suitable for evaluating larger equipment-room applications when proper cooling-load calculations and installation requirements are met.
Because the 2OACH6032 is air-cooled, condenser heat must be appropriately managed to prevent warm air from recirculating into the conditioned space.
Proper electrical service, airflow, condenser exhaust routing, and condensate drainage should be confirmed before deployment.
For more information, read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Commercial Buildings and Institutional Facilities
The OceanAire 2OACH6032 can provide temporary heating and cooling for commercial offices, institutional buildings, equipment rooms, and other suitable indoor workspaces.
Its mobile design is useful during HVAC repairs, planned maintenance, and temporary facility operations.
Emergency and Temporary HVAC Applications
Unexpected heating or cooling failures can interrupt commercial operations and create uncomfortable indoor conditions.
The 2OACH6032 provides a portable heating and cooling option for temporary applications, including:
- HVAC system repairs and replacement
- Commercial building renovations
- Supplemental cooling during high-demand periods
- Temporary industrial heating
- Equipment maintenance and facility upgrades
Explore additional applications through our Temporary Climate Control Solutions page.
OceanAire 2OACH6032 Technical Specifications
| Specification | OceanAire 2OACH6032 |
|---|---|
| Cooling Capacity | 60,100 BTU/hr (5 Tons) |
| Heating Capacity | 53,500 BTU/hr |
| Cooling Type | Air-Cooled Portable Heat Pump |
| Power Supply | 208–230V / 60Hz / Three Phase |
| Rated Current | 20.4 Amps |
| Inrush Current | 162 Amps |
| Power Consumption | 6,000 Watts |
| Plug Type | NEMA L15-30P |
| Energy Efficiency Ratio | 10.0 EER |
| Compressor Type | Scroll |
| Compressor Horsepower | 5 HP |
| Compressor LRA | 137 Amps |
| Evaporator Airflow (High) | 1,950 CFM |
| Condenser Airflow | 2,200 CFM |
| Evaporator Fan Motor | 1 HP |
| Condenser Fan Motor | 1 HP |
| Refrigerant | R-410A |
| Refrigerant Charge | 80 oz |
| Condensate Pump | Built-In Automatic |
| Condensate Pump Lift | 20 Feet Vertical |
| Cooling Ambient Range | 65°F–105°F |
| Heating Ambient Range | 40°F–85°F |
| Dimensions (W × D × H) | 28.2″ × 41″ × 54.2″ |
| Net Weight | 485 lbs |
| Filters | Washable Electrostatic |
| Fan Controls | Automatic / Manual, 6 Speeds |
| Electronic Controls | Automatic Heating/Cooling Changeover |
| Mobility | Swivel Casters with Front Locks |
| Outdoor Use | Not Approved |
| Warranty | 1-Year Product / 5-Year Total Compressor Coverage |
Specifications are based on published OceanAire documentation and may change. Rated heating and cooling capacities depend on the manufacturer’s test conditions. Confirm electrical and accessory requirements before installation.
Installation and Electrical Requirements
The OceanAire 2OACH6032 operates on 208–230V / 60Hz three-phase electrical power.
The unit uses a NEMA L15-30P locking plug, requiring a compatible receptacle and appropriately rated electrical circuit.
Published electrical specifications include:
- Rated Current: 20.4 Amps
- Inrush Current: 162 Amps
- Power Consumption: 6,000 Watts
- Plug Type: NEMA L15-30P
OceanAire recommends a dedicated circuit with appropriate time-delay fuses or circuit breakers.
Customers should verify their electrical service and follow the equipment nameplate and manufacturer installation instructions.
Heating and Cooling Operation
The 2OACH6032 provides both heating and cooling through its heat pump refrigeration system.
Its electronic controller supports automatic changeover between operating modes.
The manufacturer specifies separate ambient operating ranges:
- Cooling: 65°F–105°F
- Heating: 40°F–85°F
The unit is designed for indoor use and is not approved for outdoor operation.
Condenser Exhaust and Ventilation
Unlike OceanAire’s water-cooled portable air conditioners, the 2OACH6032 uses an air-cooled condenser.
During cooling operation, the condenser rejects heat into a separate air stream. Proper condenser airflow and exhaust routing are essential for effective cooling.
OceanAire offers compatible ceiling kits, duct adapters, and return-air plenums to support different installation arrangements.
Condenser exhaust must be directed to a suitable location without recirculating into the conditioned space. Installation requirements may differ between heating and cooling modes.
Built-In Condensate Pump
The OceanAire 2OACH6032 includes an automatic condensate pump with up to 20 feet of vertical lift.
This helps manage condensation during extended cooling operation.
The pump includes an overflow alert, and collected condensate should be discharged to an appropriate drainage location.
A separate external condensate pump is generally unnecessary for standard installations.
Optional Accessories for the OceanAire 2OACH6032
OceanAire offers several manufacturer-specified accessories for the 5-ton 2OACH series. These can improve air distribution, condenser exhaust management, and installation flexibility.
OceanAire 16-Inch Ceiling Panel Kit — CK-16
The CK-16 ceiling panel kit is designed to help route condenser discharge air through a compatible suspended ceiling installation.
It can be useful for commercial buildings and equipment rooms where an appropriate ceiling exhaust path is available.
The receiving ceiling space must be suitable for the discharged heat and airflow.
Manufacturer Part Number: CK-16
Contact Climate Control Solutions for current pricing and availability.
OceanAire Dual 8-Inch Nozzle Kit — 2NK-3
The optional 2NK-3 nozzle kit provides two 8-inch directional outlets.
This accessory helps direct conditioned air toward equipment, workstations, or designated areas requiring additional heating or cooling.
Manufacturer Part Number: 2NK-3
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — DEP-16
The DEP-16 evaporator return-air plenum supports applications where return air must be ducted back to the unit.
This can provide additional flexibility when the heat pump is positioned away from the area being conditioned.
Manufacturer Part Number: DEP-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-16
The 2DDA-16 adapter supports compatible extended duct configurations.
It provides a 16-inch round duct connection for appropriate discharge applications.
Manufacturer Part Number: 2DDA-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — DCP-5
The DCP-5 condenser return-air plenum is available for installations where air must be ducted to the condenser inlet.
This accessory may be useful for specialized temporary HVAC applications requiring controlled condenser airflow.
Manufacturer Part Number: DCP-5
Contact Climate Control Solutions for pricing and availability.
VentFlex 16-Inch × 25-Foot Flexible Ducting
Climate Control Solutions offers 16-inch flexible ducting for compatible commercial HVAC installations.
This ducting can be used with appropriately selected adapters where manufacturer ducting requirements permit.
Confirm the connection type, acceptable duct length, temperature rating, and airflow restrictions before ordering.
Browse Additional HVAC Accessories
Why Choose the OceanAire 2OACH6032?
The OceanAire 2OACH6032 combines high-capacity cooling, heating, and portable construction in one commercial-grade HVAC system.
Its 208–230V three-phase configuration makes it an option for industrial and commercial facilities equipped with compatible three-phase electrical service.
With a built-in condensate pump, automatic mode changeover, high airflow, washable filters, and manufacturer-supported accessories, the 2OACH6032 provides flexibility for temporary and supplemental heating and cooling applications.
Compare Other OceanAire Portable Heat Pumps
Climate Control Solutions supplies additional portable heating and cooling equipment for different electrical requirements:
- OceanAire 2OACH6034 – 5-Ton Portable Heat Pump — 60,100 BTU/hr cooling and 53,500 BTU/hr heating with 460V three-phase power.
- OceanAire 2OACH6012 – 5-Ton Portable Heat Pump — Single-phase configuration for facilities without three-phase service.
- Browse Portable Heat Pumps — Compare additional commercial portable heating and cooling equipment.
You can also explore OceanAire products to find other available models.
Frequently Asked Questions About the OceanAire 2OACH6032
How many BTUs does the OceanAire 2OACH6032 provide?
The 2OACH6032 delivers 60,100 BTU/hr of cooling and 53,500 BTU/hr of heating capacity.
Can the 2OACH6032 both heat and cool?
Yes. The 2OACH6032 is a portable heat pump that provides heating and cooling through a refrigeration-based system.
What electrical power does the 2OACH6032 require?
The unit operates on 208–230V / 60Hz three-phase electrical power and uses a NEMA L15-30P locking plug.
Can the 2OACH6032 operate on single-phase power?
No. The 2OACH6032 requires three-phase electrical service. The separate 2OACH6012 model is available for compatible single-phase applications.
Is a 460V version available?
Yes. OceanAire also offers the 2OACH6034, which operates on 460V three-phase electrical service.
Does the 2OACH6032 require condenser exhaust ducting?
The unit uses an air-cooled condenser and requires an appropriate condenser heat-rejection arrangement. Depending on the installation, compatible exhaust ducting or a ceiling panel kit may be needed.
What size ceiling kit does the 2OACH6032 use?
The OceanAire 2OACH6032 is compatible with the manufacturer’s CK-16 ceiling panel kit.
Does the 2OACH6032 include a condensate pump?
Yes. It includes a built-in automatic condensate pump with up to 20 feet of vertical lift.
Can the 2OACH6032 cool a server room?
Yes. The unit can provide temporary or supplemental cooling for suitable server rooms when the cooling load, condenser exhaust arrangement, electrical service, and condensate drainage are appropriate.
Is the 2OACH6032 approved for outdoor use?
No. OceanAire specifies that this unit is not approved for outdoor operation.
What refrigerant does the 2OACH6032 use?
The published model specifications list R-410A refrigerant.
What warranty does the OceanAire 2OACH6032 include?
OceanAire offers a 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OACH6032 from Climate Control Solutions
Climate Control Solutions supplies OceanAire portable heat pumps, industrial spot coolers, and commercial heating and cooling equipment nationwide.
Whether you need one 2OACH6032 for a manufacturing facility or multiple units for a temporary HVAC project, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, compatible accessories, and bulk-order quotes.
