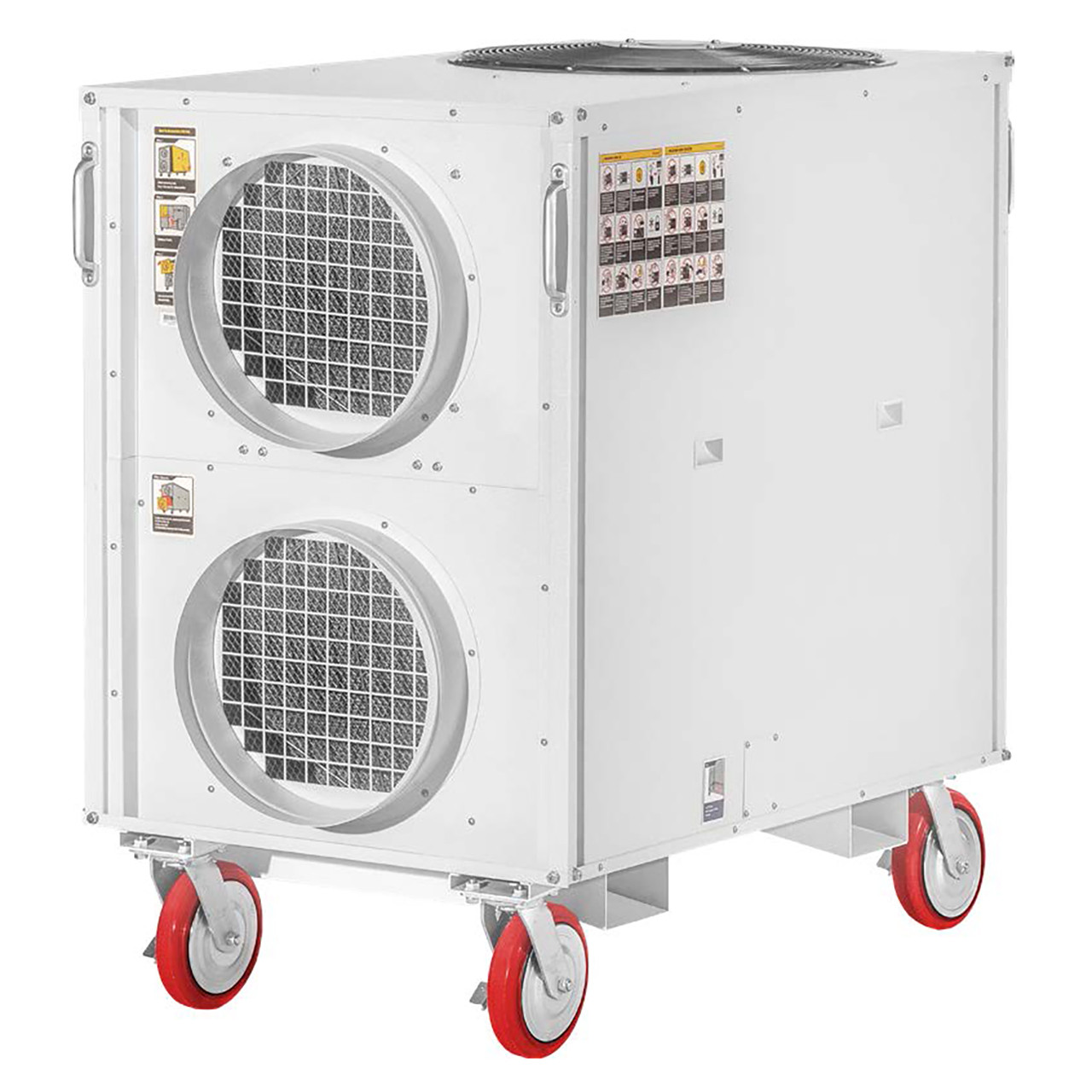

Airrex AHSC-60R Portable Heat Pump: 5 Ton, 220V, Eco-Friendly R-454B Refrigerant
Original price was: $17,328.65.$15,014.78Current price is: $15,014.78.
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The Airrex AHSC-60R 220/1 5-Ton Portable Heat Pump delivers 60,000 BTU/hr of cooling and 60,000 BTU/hr of heating for warehouses, manufacturing facilities, commercial buildings, and industrial applications. Featuring low-GWP R-454B refrigerant, this heavy-duty unit provides heating, cooling, and dehumidification with 220V single-phase operation.
Key Specifications:
- Cooling Capacity: 60,000 BTU/hr (5 Tons)
- Heating Capacity: 60,000 BTU/hr
- Electrical: 220V / 60Hz / Single Phase
- Cooling / Heating Current: 26A / 25.8A
- Airflow: 1,950 CFM
- Supply / Return: 16-Inch Connections
- Warranty: 1-Year Parts & Labor / 3-Year Compressor
Optional Accessories:
16″ Flexible Ducting | 20″ Exhaust Ducting & Reducer | External Condensate Pump
Browse Portable HVAC Accessories
Nationwide shipping available. Contact us for bulk pricing and availability.
   Resources and Downloads


The Airrex AHSC-60R 220/1 5-Ton Portable Heat Pump delivers 60,000 BTU/hr of cooling and 60,000 BTU/hr of heating capacity for demanding commercial and industrial applications. Designed for temporary and supplemental climate control, this high-capacity portable heat pump is ideal for warehouses, manufacturing facilities, commercial buildings, equipment rooms, and large temporary workspaces.
Operating on 220V / 60Hz single-phase power, the AHSC-60R provides heating, cooling, and dehumidification in one heavy-duty portable system. The unit features low-GWP R-454B refrigerant, 1,950 CFM of conditioned airflow, digital temperature controls, washable filters, and heavy-duty swivel casters.
Whether you need temporary air conditioning during HVAC maintenance, supplemental heating for an industrial facility, or emergency climate control for a commercial project, the Airrex AHSC-60R provides the flexibility to handle both heating and cooling requirements.
Key Features of the Airrex AHSC-60R 220/1
- 60,000 BTU/hr Cooling Capacity: Delivers 5 tons of nominal cooling for commercial and industrial applications.
- 60,000 BTU/hr Heating Capacity: Provides high-capacity supplemental heating for warehouses, commercial facilities, and temporary workspaces.
- 220V Single-Phase Operation: Designed for facilities with compatible 220V / 60Hz single-phase electrical service.
- Low-GWP R-454B Refrigerant: Offers a lower global warming potential than traditional R-410A refrigerant.
- Heating, Cooling & Dehumidification: Combines three climate control functions in one portable system.
- High-Capacity Airflow: Delivers 1,950 CFM of conditioned airflow to support demanding commercial applications.
- Flexible Air Distribution: Features 16-inch supply and return connections for compatible ducting configurations.
- Portable Industrial Construction: Heavy-duty locking swivel casters allow the unit to be moved and secured in position.
- Washable Air Filters: Removable filters simplify routine maintenance.
- Digital Temperature Controls: Adjustable settings and operating controls allow users to manage heating and cooling requirements.
- Compressor Protection: High- and low-pressure switches, compressor protection, and safety controls help support reliable operation.
- Optional Condensate Pump: Available for automatic condensate removal during cooling and dehumidification.
- ETL Listed: Listed for applicable electrical safety requirements.
- Warranty Protection: 1-year limited product warranty and 3-year compressor warranty.
Common Applications for the Airrex AHSC-60R
Warehouses and Manufacturing Facilities
Warehouses and manufacturing facilities often require cooling during warmer months and supplemental heating during colder conditions.
The Airrex AHSC-60R provides both functions in one portable unit, making it useful for production areas, industrial equipment, assembly operations, packing stations, and maintenance facilities.
Its 60,000 BTU/hr cooling and heating capacities provide substantial output for larger commercial applications.
Rather than maintaining separate temporary heating and cooling equipment, businesses can use the AHSC-60R for seasonal climate control when properly sized for the application.
Server Rooms and Data Center Cooling
Server rooms, networking equipment, and data center support areas generate significant heat during continuous operation.
The AHSC-60R can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 5-ton cooling capacity and ducting options allow it to be considered for larger equipment rooms and temporary IT cooling applications.
Proper cooling-load calculations, electrical service, airflow distribution, condenser heat rejection, and condensate management are essential when deploying portable cooling equipment around sensitive electronics.
For additional information, read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Commercial Buildings and Healthcare Support Areas
The AHSC-60R can provide temporary heating and cooling for commercial buildings, institutional facilities, healthcare support areas, and large workspaces.
Its portable design makes it useful during HVAC maintenance, renovations, and temporary facility operations.
For healthcare environments, equipment placement and installation should be evaluated against applicable facility requirements.
Temporary Heating and Cooling During HVAC Maintenance
When permanent heating or cooling systems are undergoing repairs or replacement, facilities may require temporary climate control equipment.
The Airrex AHSC-60R provides heating and cooling capabilities in one portable system, allowing businesses to respond to changing seasonal temperatures.
It can support planned HVAC shutdowns, emergency cooling, building renovations, and temporary industrial climate control.
Explore more equipment in our Portable Heat Pumps collection.
Airrex AHSC-60R 220/1 Technical Specifications
| Specification | Airrex AHSC-60R 220/1 |
|---|---|
| Cooling Capacity | 60,000 BTU/hr (5 Tons) |
| Heating Capacity | 60,000 BTU/hr |
| Suggested Coverage | Up to 2,000 sq. ft. under suitable conditions |
| Refrigerant | R-454B |
| Power Supply | 220V / 60Hz / Single Phase |
| Cooling Current | 26 Amps |
| Heating Current | 25.8 Amps |
| Manufacturer-Listed Fuse Size | 50 Amps |
| Cooling Power Consumption | 5.68 kW |
| Heating Power Consumption | 5.6 kW |
| Cooling Airflow | 1,950 CFM |
| Heating Airflow | 1,950 CFM |
| Supply Air Connection | 16-Inch Diameter |
| Return Air Connection | 16-Inch Diameter |
| Top Exhaust | 26-Inch Diameter |
| Optional Exhaust Reducer | 20-Inch Diameter |
| Cooling Operating Range | 65°F–118°F |
| Heating Operating Range | 50°F–81°F |
| Dehumidification Operating Range | 59°F–118°F |
| Dimensions (W Ă— D Ă— H) | 29″ Ă— 57″ Ă— 51″ |
| Weight | 586 lbs |
| Condensate Pump | Optional |
| Filters | Removable and Washable |
| Mobility | Heavy-Duty Swivel Casters |
| Certification | ETL Listed |
| Product Warranty | 1-Year Limited |
| Compressor Warranty | 3-Year |
Specifications are based on published AHSC-60R 220/1 technical literature. Actual equipment performance depends on ambient temperature, humidity, airflow, and installation conditions. Verify the equipment nameplate and current manufacturer instructions before electrical installation.
Installation and Electrical Requirements
The Airrex AHSC-60R 220/1 operates on 220V / 60Hz single-phase electrical power.
This model requires a compatible higher-voltage electrical supply and cannot operate from a standard 115V household outlet or three-phase-only connection.
The published electrical specifications list:
- Cooling Current: 26 Amps
- Heating Current: 25.8 Amps
- Fuse Size: 50 Amps
The manufacturer does not specify a NEMA plug on the technical sheet. The appropriate electrical connection, conductor sizing, and overcurrent protection should be verified before installation.
Electrical work should follow current manufacturer instructions and applicable electrical codes.
Heating, Cooling and Dehumidification
The AHSC-60R operates as a commercial portable heat pump, providing both heating and cooling.
It also offers dehumidification functionality for applications requiring moisture removal.
The unit has separate manufacturer-specified operating temperature ranges for cooling, heating, and dehumidification.
Supply, Return and Exhaust Requirements
The AHSC-60R supports ducted air distribution, allowing conditioned air to be supplied to designated spaces and return air to be brought back to the unit.
The published connections include:
- 16-inch supply air
- 16-inch return air
- 26-inch top exhaust
- Optional 20-inch top exhaust reducer
Proper duct sizing, airflow distribution, and exhaust routing are important for effective performance.
The optional reducer allows an appropriately selected 20-inch exhaust duct to be connected to the unit.
Condensate Management
The AHSC-60R can produce condensate during cooling and dehumidification operation.
An optional external condensate pump is available for applications requiring automatic water removal.
Collected condensate must be directed to an appropriate drainage location according to manufacturer installation instructions.
Optional Accessories for the Airrex AHSC-60R
The Airrex AHSC-60R supports several optional accessories designed to improve air distribution, exhaust management, and condensate removal.
16-Inch Flexible Supply and Return Ducting
The AHSC-60R features 16-inch supply and return connections for distributing conditioned air through compatible ductwork.
Flexible ducting is useful for temporary HVAC installations where the unit is positioned away from the area requiring heating or cooling.
Appropriate duct sizing and maximum permitted runs should be confirmed before installation.
Browse Portable HVAC Accessories
20-Inch Flexible Exhaust Ducting
The AHSC-60R features a 26-inch top exhaust connection that can be adapted to 20 inches using the optional manufacturer-compatible reducer.
With the appropriate reducer installed, compatible 20-inch flexible exhaust ducting can direct condenser air to a suitable discharge location.
Browse Flexible Ducting and Accessories
Optional Top Exhaust Reducer
An optional exhaust reducer allows the unit’s 26-inch top exhaust outlet to connect to compatible 20-inch ducting.
Contact Climate Control Solutions to confirm the correct reducer for your installation.
Optional External Condensate Pump
An optional condensate pump supports automatic condensate removal during cooling and dehumidification operation.
This accessory can be useful for extended cooling applications or locations where gravity drainage is not practical.
Contact Climate Control Solutions to confirm the appropriate pump configuration.
Why Choose the Airrex AHSC-60R 220/1?
The Airrex AHSC-60R combines 60,000 BTU/hr of cooling, 60,000 BTU/hr of heating, and dehumidification capability in one commercial-grade portable HVAC system.
Its high-capacity output, single-phase electrical configuration, and flexible ducting options make it useful for demanding commercial and industrial applications.
For facilities that require both temporary heating and cooling, the AHSC-60R can offer greater year-round versatility than a cooling-only portable air conditioner.
Compare Other Airrex Portable Heat Pumps
Climate Control Solutions supplies Airrex heat pumps for a range of commercial and industrial requirements:
- Airrex AHSC-42R – 3.5-Ton Portable Heat Pump — 42,000 BTU/hr cooling and 47,000 BTU/hr heating.
- Airrex AHSC-60R 460/3 – 5-Ton Portable Heat Pump — 60,000 BTU/hr heating and cooling with 460V three-phase power.
- Airrex Portable Heat Pump Collection — Compare additional heating and cooling equipment.
For more information, visit the Airrex Product Collection.
Frequently Asked Questions About the Airrex AHSC-60R
How many BTUs does the Airrex AHSC-60R provide?
The AHSC-60R 220/1 delivers 60,000 BTU/hr of cooling and 60,000 BTU/hr of heating capacity.
Can the AHSC-60R both heat and cool?
Yes. The AHSC-60R is a portable heat pump that provides heating, cooling, and dehumidification in one system.
What electrical power does the AHSC-60R 220/1 require?
The AHSC-60R 220/1 operates on 220V / 60Hz single-phase electrical power.
The technical specifications list a 26A cooling current, 25.8A heating current, and 50A fuse size.
Can the AHSC-60R operate on 460V power?
The 220/1 model is designed for 220V single-phase operation. A separate AHSC-60R 460/3 version is available for facilities requiring 460V three-phase power.
How much space can the AHSC-60R heat or cool?
The AHSC-60R may provide heating or cooling for areas up to approximately 2,000 square feet under suitable conditions.
Actual coverage varies depending on insulation, ceiling height, ventilation, internal heat loads, and ambient temperatures.
What duct sizes does the AHSC-60R use?
The AHSC-60R features 16-inch supply and return connections and a 26-inch top exhaust outlet.
An optional exhaust reducer allows compatible 20-inch ducting to be used.
Does the AHSC-60R include a condensate pump?
A condensate pump is available as an optional accessory and can be purchased separately.
Can the AHSC-60R provide temporary data center cooling?
Yes. The AHSC-60R can provide temporary or supplemental cooling for suitable data center and equipment-room applications when correctly sized and installed.
What refrigerant does the AHSC-60R use?
The AHSC-60R uses R-454B refrigerant, which has a lower global warming potential than R-410A.
Can the AHSC-60R provide temporary winter heating?
Yes. The AHSC-60R provides 60,000 BTU/hr of nominal heating capacity within the manufacturer’s specified heating operating range.
What is the warranty on the AHSC-60R?
The AHSC-60R includes a 1-year limited product warranty and a 3-year compressor warranty, subject to manufacturer terms.
Buy the Airrex AHSC-60R 220/1 from Climate Control Solutions
Climate Control Solutions supplies Airrex portable heat pumps, industrial spot coolers, and commercial heating and cooling equipment nationwide.
Whether you need one AHSC-60R for a manufacturing facility or multiple units for a temporary HVAC project, our team can help with equipment selection, electrical requirements, optional accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, and bulk-order quotes.
