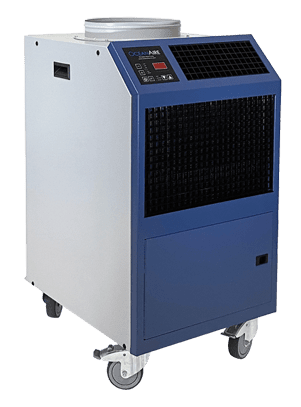

OceanAire 2OACH1211: 1-Ton Portable Heat Pump & Spot Cooler
$4,700.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OACH1211 1-Ton Portable Heat Pump delivers 11,800 BTU/hr of cooling and 11,000 BTU/hr of heating for offices, server rooms, manufacturing workstations, and commercial applications. Its 115V single-phase design provides heating and cooling in one compact, portable unit.
Key Specifications:
- Cooling Capacity: 11,800 BTU/hr (1 Ton)
- Heating Capacity: 11,000 BTU/hr
- Electrical: 115V / Single Phase
- Plug: NEMA 5-15P
- Airflow: 400 CFM
- Condensate: 5-Gallon Tank (Pump Optional)
Optional Accessories:
12″ Ceiling Kit (CK-12) | Dual 4″ Nozzle Kit (2NK-1) | Condensate Pump (UPK-115)
Nationwide shipping available. Contact us for pricing and availability.

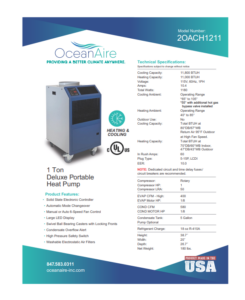

Resources and Downloads
The OceanAire 2OACH1211 1-Ton Portable Heat Pump delivers 11,800 BTU/hr of cooling and 11,000 BTU/hr of heating for commercial and industrial environments requiring temporary or supplemental climate control. Designed for targeted heating and cooling, this compact portable heat pump is ideal for offices, server rooms, telecommunications spaces, manufacturing workstations, equipment rooms, and other indoor commercial applications.
Operating on 115V / 60Hz single-phase power with a NEMA 5-15P plug, the 2OACH1211 provides both heating and cooling without requiring a specialized 208–230V electrical connection. It features a 1 HP rotary compressor, 400 CFM of conditioned airflow, electronic temperature controls, washable filters, and a 5-gallon internal condensate tank.
Whether you need temporary cooling during HVAC maintenance, supplemental heating for an office, or spot temperature control around commercial equipment, the OceanAire 2OACH1211 offers heating and cooling flexibility in one portable system.
Key Features of the OceanAire 2OACH1211
- 11,800 BTU/hr Cooling Capacity: Provides approximately 1 ton of cooling for commercial and industrial applications.
- 11,000 BTU/hr Heating Capacity: Delivers supplemental heating for offices, workstations, equipment rooms, and temporary HVAC installations.
- 115V Single-Phase Operation: Uses a NEMA 5-15P LCDI plug with a compatible electrical receptacle.
- 1 HP Rotary Compressor: Provides refrigeration-based heating and cooling through the unit’s heat pump system.
- 400 CFM Conditioned Airflow: Delivers targeted airflow for spot heating and cooling.
- Automatic Heating and Cooling Changeover: Electronic controls support switching between operating modes as temperature conditions change.
- 5-Gallon Condensate Tank: Collects moisture removed during cooling operation.
- Optional Condensate Pump: Compatible with OceanAire’s UPK-115 pump kit for automatic condensate removal.
- Six-Speed Fan Control: Automatic fan-speed adjustment with manual override.
- Digital Temperature Controls: Solid-state electronic controller with a large LED display.
- Compact Portable Construction: Heavy-duty swivel casters with locking front wheels.
- Washable Electrostatic Filters: Removable filters simplify cleaning and routine maintenance.
- Safety Features: Includes high-pressure protection and a condensate overflow alert.
- Optional Accessories: Supports manufacturer-specified ceiling panel kits, directional nozzles, return-air plenums, and discharge duct adapters.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The OceanAire 2OACH1211 is not approved for outdoor operation.
Common Applications for the OceanAire 2OACH1211
Server Rooms and Telecommunications Equipment
Server rooms, networking closets, and telecommunications equipment generate heat during operation.
The OceanAire 2OACH1211 can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 11,800 BTU/hr capacity makes it an option for smaller equipment rooms and localized cooling applications when the cooling load is appropriate.
Common applications include:
- Emergency cooling during HVAC maintenance
- Supplemental cooling for networking equipment
- Telecommunications and IDF closets
- Cooling during equipment upgrades
- Temporary cooling for sensitive electronics
Because the 2OACH1211 uses an air-cooled condenser, hot condenser air must be routed away from the conditioned space to avoid heat recirculation.
Proper cooling-load calculations, electrical compatibility, condenser airflow, and condensate management should be evaluated before installation.
For additional information, read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Commercial Offices and Retail Spaces
Offices, retail stores, and commercial buildings may require additional cooling during warmer months and supplemental heating during colder conditions.
The OceanAire 2OACH1211 provides both capabilities in one portable unit, making it useful during HVAC repairs, renovations, and temporary facility operations.
Its 115V power configuration allows installation where a properly rated, compatible electrical circuit is available.
Warehouses and Manufacturing Workstations
Industrial equipment and production processes can create localized heating and cooling requirements.
The OceanAire 2OACH1211 provides spot conditioning for workstations, equipment areas, assembly stations, and other suitable commercial environments.
Optional directional nozzles help concentrate the conditioned airflow toward specific locations.
Temporary and Emergency HVAC Applications
Unexpected HVAC failures can interrupt operations and create uncomfortable indoor conditions.
The 2OACH1211 can provide temporary heating or cooling during:
- HVAC repairs and equipment replacement
- Commercial renovations
- Temporary office operations
- Equipment maintenance
- Seasonal supplemental heating and cooling
Explore additional applications through our Commercial Climate Control Solutions page.
OceanAire 2OACH1211 Technical Specifications
| Specification | OceanAire 2OACH1211 |
|---|---|
| Cooling Capacity | 11,800 BTU/hr (Approximately 1 Ton) |
| Heating Capacity | 11,000 BTU/hr |
| Equipment Type | Air-Cooled Portable Heat Pump |
| Power Supply | 115V / 60Hz / Single Phase |
| Rated Current | 10.4 Amps |
| Inrush Current | 60 Amps |
| Power Consumption | 1,180 Watts |
| Plug Type | NEMA 5-15P with LCDI |
| Energy Efficiency Ratio | 10.0 EER |
| Compressor Type | Rotary |
| Compressor Horsepower | 1 HP |
| Compressor LRA | 50 Amps |
| Evaporator Airflow (High) | 400 CFM |
| Condenser Airflow | 580 CFM |
| Evaporator Fan Motor | 1/8 HP |
| Condenser Fan Motor | 1/8 HP |
| Refrigerant | R-410A (Referenced Configuration) |
| Refrigerant Charge | 18 oz |
| Condensate Tank | 5 Gallons |
| Condensate Pump | Optional — UPK-115 |
| Cooling Ambient Range | 65°F–105°F |
| Heating Ambient Range | 40°F–85°F |
| Dimensions (W × D × H) | 20″ × 26.7″ × 38.7″ |
| Net Weight | 180 lbs |
| Air Filters | Washable Electrostatic |
| Fan Controls | Automatic / Manual, 6 Speeds |
| Temperature Controls | Automatic Heating/Cooling Changeover |
| Mobility | Swivel Casters with Front Locks |
| Outdoor Use | Not Approved |
| Warranty | 1-Year Product / 5-Year Total Compressor Coverage |
Specifications reflect OceanAire’s published R-410A configuration and are subject to change. Confirm the current unit nameplate, refrigerant type, and electrical requirements before installation.
Installation and Electrical Requirements
The OceanAire 2OACH1211 operates on 115V / 60Hz single-phase power.
The unit uses a NEMA 5-15P plug with LCDI protection, compatible with an appropriately rated 115V receptacle.
Published electrical specifications include:
- Rated Current: 10.4 Amps
- Inrush Current: 60 Amps
- Power Consumption: 1,180 Watts
- Plug Type: NEMA 5-15P
Unlike larger OceanAire portable heat pumps requiring 208–230V or three-phase electrical service, the 2OACH1211 uses a standard 115V electrical connection.
OceanAire recommends a dedicated electrical circuit with suitable time-delay fuses or circuit breakers.
Customers should verify the circuit rating and follow the equipment nameplate before operating the unit.
Heating and Cooling Operation
The 2OACH1211 provides both heating and cooling through its refrigeration-based heat pump system.
Electronic temperature controls support automatic changeover between operating modes.
Published ambient operating ranges include:
- Cooling: 65°F–105°F
- Heating: 40°F–85°F
The unit is intended for indoor operation only.
Condenser Exhaust and Airflow
The OceanAire 2OACH1211 is an air-cooled portable heat pump.
During cooling operation, heat removed from the conditioned space is rejected through a separate condenser-air stream.
For effective cooling, this heat must be directed away from the conditioned area.
Optional ceiling kits, discharge adapters, and return-air plenums help accommodate different installation arrangements.
Exhaust and airflow requirements should follow OceanAire’s installation instructions for the selected heating or cooling mode.
Condensate Management
The OceanAire 2OACH1211 includes a 5-gallon internal condensate tank.
Collected moisture accumulates in the tank during cooling operation, and the unit includes a condensate overflow alert.
For applications requiring automatic condensate removal, OceanAire offers the optional UPK-115 condensate pump kit.
The pump can reduce the need for manual tank emptying during extended cooling applications.
Optional Accessories for the OceanAire 2OACH1211
OceanAire offers several manufacturer-specified accessories for the 2OACH1211. These allow greater flexibility for directional airflow, ducted return air, condenser exhaust, and condensate management.
OceanAire 12-Inch Ceiling Panel Kit — CK-12
The CK-12 ceiling panel kit helps route condenser discharge air through a suitable suspended ceiling installation.
The kit includes a 12-inch diameter, 8-foot flexible duct and a compatible 2-foot by 2-foot ceiling panel.
This accessory is useful for server rooms, commercial offices, and equipment spaces where an appropriate overhead exhaust path is available.
The receiving ceiling space must accommodate the discharged heat and airflow.
Manufacturer Part Number: CK-12
Contact Climate Control Solutions for pricing and availability.
OceanAire Dual 4-Inch Nozzle Kit — 2NK-1
The optional 2NK-1 nozzle kit provides two 4-inch directional air outlets.
It helps concentrate conditioned airflow toward workstations, equipment, and other areas requiring targeted heating or cooling.
Manufacturer Part Number: 2NK-1
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — DEP-10
The DEP-10 evaporator return-air plenum supports installations requiring return air to be ducted to the unit.
It may be useful when the portable heat pump is positioned away from the conditioned area.
Manufacturer Part Number: DEP-10
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-6
The 2DDA-6 discharge adapter supports applications requiring ducted conditioned-air discharge.
It provides a compatible connection for routing evaporator discharge air where the unit’s standard discharge grille is not suitable.
Manufacturer Part Number: 2DDA-6
Contact Climate Control Solutions for pricing and availability.
OceanAire Universal Condensate Pump Kit — UPK-115
The UPK-115 optional condensate pump kit provides automatic removal of collected condensation.
It is useful for extended cooling applications where manually emptying the 5-gallon reservoir is inconvenient.
Manufacturer Part Number: UPK-115
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — 2DCP-1
The 2DCP-1 condenser return-air plenum supports installations requiring ducted air to the condenser inlet.
It may be useful for specialized temporary HVAC setups where condenser airflow must be managed.
Manufacturer Part Number: 2DCP-1
Contact Climate Control Solutions for pricing and availability.
Additional Portable HVAC Accessories
Climate Control Solutions also supplies flexible ducting and related installation accessories for commercial portable air conditioners.
Browse Portable HVAC Accessories
Confirm the correct manufacturer accessory, duct diameter, allowable duct length, and fitting compatibility before ordering.
Why Choose the OceanAire 2OACH1211?
The OceanAire 2OACH1211 combines 11,800 BTU/hr of cooling and 11,000 BTU/hr of heating in a compact, commercial-grade portable heat pump.
Its 115V single-phase electrical configuration is especially useful for customers requiring year-round spot temperature control without 208–230V electrical service.
The 5-gallon condensate tank, digital controls, washable filters, locking casters, and available accessories provide additional flexibility for temporary heating and cooling projects.
Compare Other OceanAire Portable Heat Pumps and Spot Coolers
Climate Control Solutions offers additional equipment for different cooling requirements:
- OceanAire 2OAC1211 – 1-Ton Portable Spot Cooler — Cooling-only alternative with 115V power.
- OceanAire 2OACH1811 – 1.5-Ton Portable Heat Pump — Higher-capacity heating and cooling.
- OceanAire 2OACH2412 – 2-Ton Portable Heat Pump — Higher-capacity 208–230V single-phase option.
Browse All Portable Heat Pumps
You can also explore OceanAire products.
Frequently Asked Questions About the OceanAire 2OACH1211
How many BTUs does the OceanAire 2OACH1211 provide?
The 2OACH1211 delivers 11,800 BTU/hr of cooling and 11,000 BTU/hr of heating capacity.
Can the 2OACH1211 both heat and cool?
Yes. The 2OACH1211 is a portable heat pump that provides heating and cooling through its refrigeration system.
What electrical power does the 2OACH1211 require?
The unit operates on 115V / 60Hz single-phase power and uses a NEMA 5-15P plug.
Can the 2OACH1211 use a standard household outlet?
Yes, provided the outlet and electrical circuit are appropriately rated and meet the manufacturer’s requirements. A dedicated circuit is recommended.
Does the 2OACH1211 require condenser exhaust ducting?
The unit is air-cooled and requires an appropriate arrangement for condenser heat rejection. Depending on the installation, compatible exhaust ducting or a ceiling panel kit may be needed.
What size ceiling kit is compatible with the 2OACH1211?
OceanAire lists the CK-12 12-inch ceiling panel kit for the 2OACH1211.
What size directional nozzles are available?
The compatible OceanAire 2NK-1 nozzle kit includes two 4-inch directional outlets.
Does the 2OACH1211 include a condensate pump?
No. The standard unit includes a 5-gallon condensate tank. The UPK-115 automatic pump kit is optional.
Can the 2OACH1211 cool a server room?
Yes. It can provide temporary or supplemental cooling for suitably sized server rooms when installed with appropriate electrical service, condenser heat rejection, and condensate management.
Is the 2OACH1211 approved for outdoor operation?
No. The 2OACH1211 is intended for indoor use and is not approved for outdoor operation.
What refrigerant does the 2OACH1211 use?
The referenced configuration uses R-410A. OceanAire also publishes R-454B documentation for newer versions, so confirm the refrigerant on the actual equipment nameplate.
What warranty does the OceanAire 2OACH1211 include?
OceanAire publishes a 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OACH1211 from Climate Control Solutions
Climate Control Solutions supplies OceanAire portable heat pumps, commercial spot coolers, and industrial heating and cooling equipment nationwide.
Whether you need one 2OACH1211 for an office or several units for commercial facilities, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, compatible accessories, and bulk-order quotes.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
