Oceanaire 2OACH1811 – 1.5-Ton Portable Heat Pump & Spot Cooler
$5,400.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OACH1811 1.5-Ton Portable Heat Pump delivers 16,800 BTU/hr of cooling and 15,000 BTU/hr of heating for offices, server rooms, manufacturing workstations, and commercial applications. Its 115V single-phase design provides heating and cooling in one portable unit.
Key Specifications:
- Cooling: 16,800 BTU/hr (1.5 Tons)
- Heating: 15,000 BTU/hr
- Electrical: 115V / Single Phase
- Plug: NEMA 5-20P (20-Amp Receptacle)
- Airflow: 600 CFM
- Condensate: 5-Gallon Tank (Pump Optional)
Optional Accessories: 12″ Ceiling Kit (CK-12), Dual 6″ Nozzles (2NK-2), Condensate Pump (UPK-115).
Nationwide shipping available. Contact us for pricing and availability.

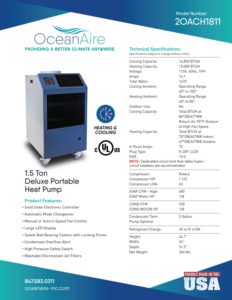

Resources and Downloads
The OceanAire 2OACH1811 1.5-Ton Portable Heat Pump delivers 16,800 BTU/hr of cooling and 15,000 BTU/hr of heating for commercial and industrial environments requiring temporary or supplemental climate control. Designed for targeted heating and cooling, this commercial-grade portable heat pump is ideal for offices, server rooms, manufacturing workstations, equipment rooms, retail facilities, and other indoor commercial applications.
Operating on 115V / 60Hz single-phase power with a NEMA 5-20P plug, the 2OACH1811 provides heating and cooling without requiring 208–230V electrical service. It features a 1.5 HP rotary compressor, 600 CFM of conditioned airflow, electronic temperature controls, washable air filters, and a 5-gallon internal condensate tank.
Whether you need emergency cooling during HVAC maintenance, supplemental heating for a commercial workspace, or temporary air conditioning for temperature-sensitive equipment, the OceanAire 2OACH1811 offers year-round spot climate control in one portable system.
Key Features of the OceanAire 2OACH1811
- 16,800 BTU/hr Cooling Capacity: Delivers approximately 1.5 tons of cooling for commercial and industrial applications.
- 15,000 BTU/hr Heating Capacity: Provides supplemental heating through a refrigeration-based heat pump system.
- 115V Single-Phase Operation: Uses a NEMA 5-20P plug with a compatible 20-amp electrical receptacle.
- 1.5 HP Rotary Compressor: Provides commercial-grade heating and cooling performance.
- 600 CFM Conditioned Airflow: Delivers targeted heating or cooling to selected areas.
- Automatic Heating and Cooling Changeover: Electronic controls support switching between heating and cooling modes.
- 5-Gallon Condensate Tank: Collects moisture removed during cooling operation.
- Optional Condensate Pump: Compatible with the OceanAire UPK-115 pump kit for automatic condensate removal.
- Six-Speed Fan Control: Automatic airflow adjustment with manual override.
- Digital Temperature Controls: Solid-state electronic controller with a large LED display.
- Air-Cooled Condenser: Requires no condenser water hookup.
- Optional Exhaust Ducting: Supports manufacturer-specified ceiling kits and discharge adapters.
- Directional Airflow Accessories: Optional dual 6-inch nozzles allow conditioned air to be aimed at specific locations.
- Portable Construction: Heavy-duty swivel casters with locking front wheels.
- Washable Electrostatic Filters: Removable filters simplify routine cleaning.
- Safety Features: Includes high-pressure protection and condensate tank alert.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The OceanAire 2OACH1811 is not approved for outdoor operation.
Common Applications for the OceanAire 2OACH1811
Server Rooms and IT Equipment Cooling
Server rooms, network closets, and telecommunications facilities generate heat from continuously operating electronic equipment.
The OceanAire 2OACH1811 can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 16,800 BTU/hr cooling capacity makes it an option for smaller equipment rooms and localized IT cooling applications when properly sized.
Common applications include:
- Emergency cooling during HVAC failures
- Supplemental cooling for networking equipment
- Telecommunications and IDF closets
- Temporary cooling during server maintenance
- Cooling during equipment upgrades
Because the 2OACH1811 is air-cooled, warm condenser air must be directed away from the conditioned space to prevent heat recirculation.
Proper cooling-load calculations, electrical compatibility, condenser exhaust routing, and condensate management should be evaluated before installation.
Learn more in our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Offices and Commercial Buildings
Commercial offices, retail stores, and institutional facilities may require additional cooling in the summer and supplemental heating during colder conditions.
The OceanAire 2OACH1811 offers both capabilities in one portable unit.
Its 115V single-phase design makes it useful in facilities with a compatible 20-amp electrical circuit but without dedicated 208–230V service.
The unit can be repositioned as heating and cooling requirements change.
Warehouses and Manufacturing Workstations
Industrial equipment and machinery can create localized heating and cooling needs.
The 2OACH1811 provides spot conditioning for manufacturing workstations, equipment rooms, assembly stations, and maintenance areas.
Optional directional nozzles help concentrate conditioned air toward specific equipment or work locations.
Emergency and Temporary HVAC Applications
Unexpected HVAC failures can disrupt commercial operations.
The 2OACH1811 offers portable heating and cooling for temporary applications such as:
- Commercial HVAC repairs
- Equipment replacement
- Office renovations
- Supplemental winter heating
- Emergency summer cooling
- Temporary indoor workspaces
Explore Commercial Climate Control Solutions
OceanAire 2OACH1811 Technical Specifications
| Specification | OceanAire 2OACH1811 |
|---|---|
| Cooling Capacity | 16,800 BTU/hr (1.5 Tons) |
| Heating Capacity | 15,000 BTU/hr |
| Equipment Type | Air-Cooled Portable Heat Pump |
| Power Supply | 115V / 60Hz / Single Phase |
| Rated Current | 14.1 Amps |
| Inrush Current | 75 Amps |
| Power Consumption | 1,670 Watts |
| Plug Type | NEMA 5-20P with LCDI |
| Energy Efficiency Ratio | 10.0 EER |
| Compressor Type | Rotary |
| Compressor Horsepower | 1.5 HP |
| Compressor LRA | 63 Amps |
| Evaporator Airflow — High | 600 CFM |
| Condenser Airflow | 930 CFM |
| Evaporator Fan Motor | 1/8 HP |
| Condenser Fan Motor | 1/8 HP |
| Refrigerant | R-410A (Referenced Configuration) |
| Refrigerant Charge | 40 oz |
| Condensate Tank | 5 Gallons |
| Condensate Pump | Optional — UPK-115 |
| Cooling Ambient Range | 65°F–105°F |
| Heating Ambient Range | 40°F–85°F |
| Width | 24″ |
| Depth | 31.5″ |
| Height | 46.7″ |
| Net Weight | 260 lbs |
| Air Filters | Washable Electrostatic |
| Fan Controls | Automatic / Manual, 6 Speeds |
| Temperature Controls | Automatic Heating/Cooling Changeover |
| Mobility | Swivel Casters with Locking Front Wheels |
| Outdoor Operation | Not Approved |
| Warranty | 1-Year Product / 5-Year Total Compressor Coverage |
Specifications reflect OceanAire’s published R-410A model documentation and may change. Verify refrigerant type, equipment nameplate, and electrical requirements before installation.
Electrical and Installation Requirements
The OceanAire 2OACH1811 operates on 115V / 60Hz single-phase electrical power.
Although the unit uses 115V, it requires a NEMA 5-20P receptacle connection.
Published electrical specifications include:
- Rated Current: 14.1 amps
- Inrush Current: 75 amps
- Power Consumption: 1,670 watts
- Plug Type: NEMA 5-20P with LCDI protection
The unit requires a compatible, properly rated electrical circuit.
OceanAire recommends a dedicated circuit with appropriate time-delay fuses or circuit breakers.
Customers should confirm their electrical service before purchasing.
Heating and Cooling Operation
The OceanAire 2OACH1811 uses a refrigeration-based heat pump system to provide both heating and cooling.
Its electronic temperature controls support automatic changeover between operating modes.
Published operating ranges include:
- Cooling: 65°F–105°F
- Heating: 40°F–85°F
The unit delivers 16,800 BTU/hr of rated cooling and 15,000 BTU/hr of rated heating under the manufacturer’s specified test conditions.
Condenser Exhaust and Airflow
The 2OACH1811 uses an air-cooled condenser.
During cooling, heat removed from the conditioned space is rejected through a separate condenser-air stream.
For effective cooling, condenser heat must be directed away from the conditioned area.
Optional ceiling panel kits, discharge adapters, and return-air plenums support compatible ducting configurations.
The appropriate air routing may differ between heating and cooling modes and should follow OceanAire’s installation instructions.
Condensate Management
The OceanAire 2OACH1811 includes a 5-gallon internal condensate tank.
Moisture collected during cooling operation accumulates in the tank, and the unit includes a condensate tank alert.
For installations requiring automatic condensate removal, OceanAire offers the optional UPK-115 condensate pump kit.
The optional pump can reduce the need for manual tank emptying during extended cooling operation.
An automatic condensate pump is not included with the standard unit.
Optional Accessories for the OceanAire 2OACH1811
OceanAire offers several model-specific accessories to support condenser exhaust management, directional airflow, ducted return air, and condensate removal.
OceanAire 12-Inch Ceiling Panel Kit — CK-12
The CK-12 ceiling panel kit supports routing condenser discharge air through a suitable suspended ceiling installation.
This accessory can be useful for commercial offices, server rooms, and equipment spaces where appropriate overhead condenser heat rejection is available.
The receiving ceiling space must accommodate the condenser airflow and heat load.
Manufacturer Part Number: CK-12
Contact Climate Control Solutions for pricing and availability.
OceanAire Dual 6-Inch Nozzle Kit — 2NK-2
The optional 2NK-2 nozzle kit includes two 6-inch directional air outlets.
This accessory helps direct heated or cooled air toward workstations, equipment, and localized areas requiring temperature control.
Manufacturer Part Number: 2NK-2
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — 2DEP-12
The 2DEP-12 return-air plenum supports installations where return air must be ducted back to the evaporator.
This can provide flexibility when the heat pump is positioned away from the conditioned space.
Manufacturer Part Number: 2DEP-12
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-10
The 2DDA-10 discharge adapter supports appropriate extended ducting arrangements.
The correct duct diameter, attachment method, allowable length, and airflow requirements should be confirmed before ordering.
Manufacturer Part Number: 2DDA-10
Contact Climate Control Solutions for pricing and availability.
OceanAire Universal Condensate Pump Kit — UPK-115
The optional UPK-115 condensate pump kit provides automatic removal of collected moisture.
It is useful for extended cooling applications where regularly emptying the 5-gallon tank is inconvenient.
Manufacturer Part Number: UPK-115
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — 2DCP-2
The 2DCP-2 condenser return-air plenum supports applications requiring ducted air to the condenser inlet.
Manufacturer Part Number: 2DCP-2
Contact Climate Control Solutions for pricing and availability.
Additional Portable HVAC Accessories
Climate Control Solutions supplies flexible ducting and installation accessories for commercial portable air conditioners and heat pumps.
Browse Portable HVAC Accessories
Confirm the correct OceanAire accessory, duct diameter, allowable length, and fitting compatibility before ordering.
Why Choose the OceanAire 2OACH1811?
The OceanAire 2OACH1811 combines 16,800 BTU/hr of cooling and 15,000 BTU/hr of heating in one commercial-grade portable heat pump.
Its 115V single-phase electrical configuration offers an alternative to larger heat pumps that require 208–230V power, provided the facility has a compatible 20-amp circuit.
The 5-gallon condensate tank, electronic controls, washable filters, locking casters, and manufacturer-supported accessories provide flexibility for temporary heating and cooling applications.
Compare Other Portable Heat Pumps and Spot Coolers
Climate Control Solutions offers additional equipment for different cooling and heating requirements:
- OceanAire 2OAC1811 – 1.5-Ton Portable Spot Cooler — Cooling-only alternative with 16,800 BTU/hr capacity.
- OceanAire 2OACH2412 – 2-Ton Portable Heat Pump — Higher-capacity heating and cooling with 208–230V single-phase power.
- Browse Portable Heat Pumps — Compare additional commercial heating and cooling options.
Browse Portable Air-Cooled Units
Frequently Asked Questions About the OceanAire 2OACH1811
How much cooling capacity does the OceanAire 2OACH1811 provide?
The OceanAire 2OACH1811 delivers 16,800 BTU/hr of cooling capacity, approximately 1.5 tons.
Does the 2OACH1811 provide heating?
Yes. The 2OACH1811 is a portable heat pump that provides 15,000 BTU/hr of rated heating capacity.
What electrical power does the 2OACH1811 require?
The unit operates on 115V / 60Hz single-phase electrical power and uses a NEMA 5-20P plug.
Can the 2OACH1811 use a standard household outlet?
The unit requires a compatible 20-amp NEMA 5-20 receptacle. It cannot plug directly into a 15-amp-only NEMA 5-15 outlet.
Does the 2OACH1811 require condenser exhaust ducting?
The unit uses an air-cooled condenser and requires appropriate condenser heat rejection. Depending on the installation, compatible ducting or a ceiling panel kit may be needed.
What ceiling kit is compatible with the 2OACH1811?
OceanAire identifies the CK-12 ceiling panel kit as compatible with the 2OACH1811.
What directional nozzle kit is available?
The manufacturer lists the 2NK-2 kit, which provides two 6-inch directional nozzles.
Does the 2OACH1811 include a condensate pump?
No. The standard unit includes a 5-gallon condensate tank. The UPK-115 automatic pump is optional.
Can the 2OACH1811 cool a server room?
Yes. It can provide temporary or supplemental cooling for appropriately sized server rooms when electrical service, condenser exhaust, airflow, and condensate requirements are met.
Is the 2OACH1811 approved for outdoor use?
No. OceanAire specifies that the unit is not approved for outdoor operation.
What refrigerant does the 2OACH1811 use?
The referenced manufacturer specifications list R-410A refrigerant with a 40-ounce charge. Confirm the refrigerant for the supplied equipment before servicing or ordering replacement parts.
What is the warranty on the OceanAire 2OACH1811?
OceanAire provides a 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OACH1811 from Climate Control Solutions
Climate Control Solutions supplies OceanAire portable heat pumps, commercial spot coolers, and industrial heating and cooling equipment nationwide.
Whether you need one 2OACH1811 for an office or equipment room or multiple units for a commercial facility, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, and bulk-order quotes.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Related products
Airrex AHSC-14R: 1.2-Ton Portable Heat Pump 13,600 BTU Cooling / 13,000 BTU Heating
Original price was: $6,200.65.$5,108.91Current price is: $5,108.91.
Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
