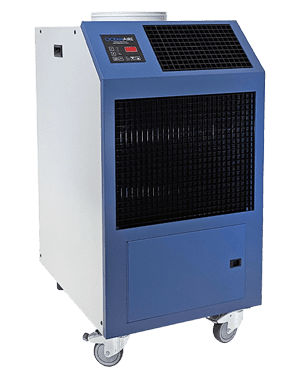

OceanAire 2OACH2412: 2-Ton Portable Heat Pump & Spot Cooler
$6,750.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OACH2412 2-Ton Portable Heat Pump delivers 24,020 BTU/hr of cooling and 22,000 BTU/hr of heating for offices, warehouses, server rooms, and commercial applications. Its 208–230V single-phase design provides year-round heating and cooling in one portable unit.
Key Specifications:
- Cooling Capacity: 24,020 BTU/hr (2 Tons)
- Heating Capacity: 22,000 BTU/hr
- Electrical: 208–230V / Single Phase
- Plug: NEMA 6-20P
- Airflow: 810 CFM
- Condensate: 5-Gallon Tank (Pump Optional)
Optional Accessories:
12″ Ceiling Kit (CK-12) | Dual 6″ Nozzle Kit (2NK-2) | Condensate Pump (UPK-230)
Nationwide shipping available. Contact us for pricing and availability.

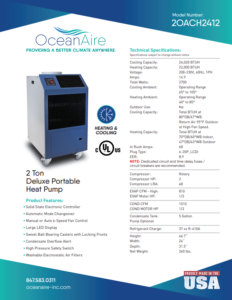

Resources and Downloads
The OceanAire 2OACH2412 2-Ton Portable Heat Pump delivers 24,020 BTU/hr of cooling and 22,000 BTU/hr of heating for commercial and industrial applications. Designed for temporary and supplemental climate control, this portable heat pump is ideal for offices, warehouses, manufacturing facilities, server rooms, equipment rooms, and other indoor commercial spaces.
Operating on 208–230V / 60Hz single-phase power with a NEMA 6-20P plug, the 2OACH2412 provides year-round heating and cooling without requiring three-phase electrical service. The unit features a 2 HP rotary compressor, 810 CFM of conditioned airflow, digital temperature controls, washable air filters, and a 5-gallon condensate tank.
Whether you need emergency cooling during HVAC maintenance, supplemental heating for a commercial workspace, or temporary climate control during renovations, the OceanAire 2OACH2412 offers dependable heating and cooling in one portable unit.
Key Features of the OceanAire 2OACH2412
- 24,020 BTU/hr Cooling Capacity: Delivers approximately 2 tons of cooling for commercial and industrial applications.
- 22,000 BTU/hr Heating Capacity: Provides supplemental heating for offices, workstations, equipment rooms, and temporary HVAC installations.
- 208–230V Single-Phase Operation: Designed for compatible single-phase electrical service without requiring three-phase power.
- NEMA 6-20P Plug: Uses a 208–230V electrical connection with a compatible 20-amp receptacle.
- 2 HP Rotary Compressor: Commercial-grade compressor for heating and cooling operation.
- 810 CFM Conditioned Airflow: Delivers targeted cooling and heating to selected areas.
- Automatic Heating and Cooling Changeover: Electronic controls support switching between heating and cooling modes.
- 5-Gallon Condensate Tank: Collects moisture removed during cooling operation.
- Optional Condensate Pump: Compatible with OceanAire’s UPK-230 pump kit for automatic condensate removal.
- Six-Speed Fan Control: Automatic fan adjustment with manual override.
- Electronic Temperature Controls: Solid-state controller with a large LED display.
- Portable Construction: Heavy-duty swivel casters with locking front wheels.
- Washable Electrostatic Filters: Removable filters simplify routine cleaning and maintenance.
- Safety Features: Includes high-pressure protection and condensate tank alerts.
- Optional Accessories: Compatible with OceanAire ceiling panel kits, directional nozzle kits, return-air plenums, and duct adapters.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The OceanAire 2OACH2412 is not approved for outdoor operation.
Common Applications for the OceanAire 2OACH2412
Server Rooms and IT Equipment Cooling
Server rooms, telecommunications closets, and networking equipment generate heat during continuous operation.
The OceanAire 2OACH2412 can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 24,020 BTU/hr cooling capacity makes it an option for smaller server rooms or equipment spaces requiring approximately 2 tons of cooling.
Common applications include:
- Emergency cooling during HVAC failures
- Supplemental cooling for networking equipment
- Temporary cooling during IT maintenance
- Telecommunications and equipment rooms
- Cooling during server upgrades
Because the 2OACH2412 uses an air-cooled condenser, warm condenser air must be directed away from the conditioned space.
Proper cooling-load calculations, electrical service, exhaust management, airflow distribution, and condensate handling should be evaluated before installation.
For more information, read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Offices and Commercial Buildings
The OceanAire 2OACH2412 provides temporary or supplemental heating and cooling for commercial offices, retail spaces, institutional buildings, and other indoor workspaces.
Its 208–230V single-phase configuration makes it suitable for facilities that have compatible electrical service but do not have three-phase power available.
The portable design allows the unit to be repositioned as seasonal requirements change.
Warehouses and Manufacturing Facilities
Manufacturing equipment and industrial processes can generate concentrated heat around workstations and machinery.
The 2OACH2412 can provide localized cooling during warmer conditions and supplemental heating during colder months.
Optional directional nozzle accessories allow conditioned air to be directed toward workstations, equipment, and other specific areas.
Temporary and Emergency HVAC Applications
Unexpected heating or cooling failures can interrupt operations and create uncomfortable indoor conditions.
The OceanAire 2OACH2412 can support temporary climate control during:
- HVAC repairs and equipment replacement
- Commercial building renovations
- Seasonal supplemental heating
- Emergency cooling situations
- Industrial maintenance projects
Explore additional applications through our Temporary Climate Control Solutions page.
OceanAire 2OACH2412 Technical Specifications
| Specification | OceanAire 2OACH2412 |
|---|---|
| Cooling Capacity | 24,020 BTU/hr (Approximately 2 Tons) |
| Heating Capacity | 22,000 BTU/hr |
| Equipment Type | Air-Cooled Portable Heat Pump |
| Power Supply | 208–230V / 60Hz / Single Phase |
| Rated Current | 14.9 Amps |
| Inrush Current | 68 Amps |
| Power Consumption | 2,700 Watts |
| Plug Type | NEMA 6-20P with LCDI |
| Energy Efficiency Ratio | 8.9 EER |
| Compressor Type | Rotary |
| Compressor Horsepower | 2 HP |
| Compressor LRA | 48 Amps |
| Evaporator Airflow (High) | 810 CFM |
| Condenser Airflow | 1,010 CFM |
| Evaporator Fan Motor | 1/3 HP |
| Condenser Fan Motor | 1/3 HP |
| Refrigerant | R-410A |
| Refrigerant Charge | 37 oz |
| Condensate Tank | 5 Gallons |
| Condensate Pump | Optional — UPK-230 |
| Cooling Ambient Range | 65°F–105°F |
| Heating Ambient Range | 40°F–85°F |
| Dimensions (W × D × H) | 24″ × 31.5″ × 46.7″ |
| Net Weight | 260 lbs |
| Air Filters | Washable Electrostatic |
| Fan Controls | Automatic / Manual, 6 Speeds |
| Temperature Controls | Automatic Heating/Cooling Changeover |
| Mobility | Swivel Casters with Front Locks |
| Outdoor Use | Not Approved |
| Warranty | 1-Year Product / 5-Year Total Compressor Coverage |
Specifications reflect OceanAire’s published R-410A configuration and may change. Confirm the equipment nameplate, electrical requirements, and current manufacturer specifications before installation.
Installation and Electrical Requirements
The OceanAire 2OACH2412 operates on 208–230V / 60Hz single-phase power.
The unit uses a NEMA 6-20P plug, which requires a compatible receptacle and properly rated electrical circuit.
Published electrical specifications include:
- Rated Current: 14.9 Amps
- Inrush Current: 68 Amps
- Power Consumption: 2,700 Watts
- Plug Type: NEMA 6-20P with LCDI
OceanAire recommends using a dedicated electrical circuit with appropriate time-delay fuses or circuit breakers.
The unit cannot connect to a standard 115V household receptacle.
Customers should verify electrical service before ordering.
Heating and Cooling Operation
The OceanAire 2OACH2412 provides both heating and cooling through its refrigeration-based heat pump system.
Its electronic controls allow automatic changeover between heating and cooling modes.
Published operating ranges include:
- Cooling: 65°F–105°F
- Heating: 40°F–85°F
The unit is intended for indoor operation only.
Condenser Exhaust and Ventilation
The OceanAire 2OACH2412 uses an air-cooled condenser.
During cooling, heat collected from the conditioned space is released through a separate condenser-air stream.
For effective cooling, this heat must be directed away from the area receiving conditioned air.
Compatible ceiling panel kits, duct adapters, and return-air plenums support various exhaust arrangements.
The correct airflow and exhaust configuration should follow the manufacturer’s instructions for the selected heating or cooling mode.
Condensate Management
The 2OACH2412 includes a 5-gallon internal condensate tank.
Moisture collected during operation accumulates in the tank, and the unit includes a condensate alert.
For applications requiring automatic water removal, OceanAire offers the optional UPK-230 condensate pump kit.
This accessory reduces the need for manual tank emptying during extended cooling operation.
Optional Accessories for the OceanAire 2OACH2412
OceanAire offers several manufacturer-specified accessories for the 2OACH2412. These accessories improve directional airflow, exhaust routing, ducted return air, and condensate removal.
OceanAire 12-Inch Ceiling Panel Kit — CK-12
The CK-12 ceiling panel kit is designed to route condenser discharge air through a suitable suspended ceiling installation.
It includes a compatible ceiling panel and flexible ducting for the manufacturer’s 12-inch condenser exhaust connection.
This accessory is useful for commercial offices, server rooms, and equipment spaces where an appropriate overhead exhaust path is available.
The ceiling space must be suitable for the discharged heat and airflow.
Manufacturer Part Number: CK-12
Contact Climate Control Solutions for pricing and availability.
OceanAire Dual 6-Inch Nozzle Kit — 2NK-2
The optional 2NK-2 nozzle kit provides two 6-inch directional air outlets.
This accessory helps direct cooled or heated air toward equipment, individual workstations, and areas requiring localized temperature control.
Manufacturer Part Number: 2NK-2
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — 2DEP-12
The 2DEP-12 return-air plenum supports installations where return air must be ducted back to the unit’s evaporator.
This can provide additional flexibility when the heat pump is positioned away from the conditioned area.
Manufacturer Part Number: 2DEP-12
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-10
The 2DDA-10 discharge duct adapter supports applications where extended ducting is required.
This accessory provides a 10-inch duct connection for compatible discharge installations.
Maximum duct lengths, fittings, and airflow restrictions should be confirmed with the manufacturer before installation.
Manufacturer Part Number: 2DDA-10
Contact Climate Control Solutions for pricing and availability.
OceanAire Universal Condensate Pump Kit — UPK-230
The optional UPK-230 condensate pump kit automatically removes collected condensation.
This accessory is useful for extended cooling applications where manually emptying the 5-gallon tank is inconvenient.
Manufacturer Part Number: UPK-230
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — 2DCP-2
The 2DCP-2 condenser return-air plenum supports installations requiring ducted air to the condenser inlet.
This accessory may be useful for specialized temporary HVAC arrangements.
Manufacturer Part Number: 2DCP-2
Contact Climate Control Solutions for pricing and availability.
Additional Flexible Ducting and HVAC Accessories
Climate Control Solutions supplies flexible ducting and other accessories for commercial portable air conditioners.
Browse Portable HVAC Accessories
For model-specific installation questions, contact our team to confirm the appropriate adapter, duct diameter, permissible length, and accessory compatibility.
Why Choose the OceanAire 2OACH2412?
The OceanAire 2OACH2412 combines 24,020 BTU/hr of cooling and 22,000 BTU/hr of heating in one commercial-grade portable HVAC unit.
Its 208–230V single-phase configuration is particularly useful for facilities requiring approximately 2 tons of cooling and heating without three-phase electrical service.
The 5-gallon condensate tank, automatic temperature controls, washable filters, and optional ducting accessories provide flexibility for temporary and supplemental climate control.
Compare Other OceanAire Portable Heat Pumps
Climate Control Solutions offers additional models for different cooling capacities and installation requirements:
- OceanAire 2OACH1811 – 1.5-Ton Portable Heat Pump — Smaller portable heating and cooling option with 115V operation.
- OceanAire 2OACH3612 – 3-Ton Portable Heat Pump — Higher-capacity 208–230V single-phase heating and cooling.
- OceanAire 2OACH6012 – 5-Ton Portable Heat Pump — Larger single-phase portable heat pump.
Browse All Portable Heat Pumps
Frequently Asked Questions About the OceanAire 2OACH2412
How many BTUs does the OceanAire 2OACH2412 provide?
The 2OACH2412 delivers 24,020 BTU/hr of cooling and 22,000 BTU/hr of heating capacity.
Can the 2OACH2412 both heat and cool?
Yes. The 2OACH2412 is a portable heat pump that provides heating and cooling through its refrigeration system.
What electrical power does the 2OACH2412 require?
The unit operates on 208–230V / 60Hz single-phase power and uses a NEMA 6-20P plug.
Does the 2OACH2412 require three-phase power?
No. The 2OACH2412 is designed for single-phase electrical service.
Can the 2OACH2412 operate on a standard 115V outlet?
No. The unit requires a compatible 208–230V circuit and NEMA 6-20 receptacle.
Does the 2OACH2412 require exhaust ducting?
The unit uses an air-cooled condenser and requires appropriate heat rejection. Depending on the installation, compatible exhaust ducting or a ceiling panel kit may be required.
What ceiling kit is compatible with the 2OACH2412?
OceanAire lists the CK-12 ceiling panel kit as compatible with the 2OACH2412.
Does the 2OACH2412 include a condensate pump?
No. The standard model includes a 5-gallon condensate tank. The UPK-230 automatic condensate pump is an optional accessory.
What other accessories are available?
Manufacturer-listed options include the 2NK-2 directional nozzle kit, 2DEP-12 evaporator return-air plenum, 2DDA-10 discharge adapter, and 2DCP-2 condenser return-air plenum.
Can the 2OACH2412 cool a server room?
Yes. It can provide temporary or supplemental cooling for suitable server rooms when the cooling load, electrical supply, condenser exhaust arrangement, and condensate handling are appropriate.
Can the 2OACH2412 operate outdoors?
No. OceanAire specifies that this model is not approved for outdoor use.
What refrigerant does the 2OACH2412 use?
The manufacturer’s published specifications list R-410A refrigerant. Confirm the refrigerant on the equipment nameplate before ordering refrigerant-related service parts.
What warranty does the OceanAire 2OACH2412 include?
OceanAire provides a 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OACH2412 from Climate Control Solutions
Climate Control Solutions supplies OceanAire portable heat pumps, commercial spot coolers, and industrial heating and cooling equipment nationwide.
Whether you need one 2OACH2412 for a commercial workspace or multiple units for an industrial project, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, compatible accessories, and bulk-order quotes.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Related products
Airrex AHSC-60R Portable Heat Pump: 5 Ton, 220V, Eco-Friendly R-454B Refrigerant
Original price was: $17,328.65.$15,014.78Current price is: $15,014.78.Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
