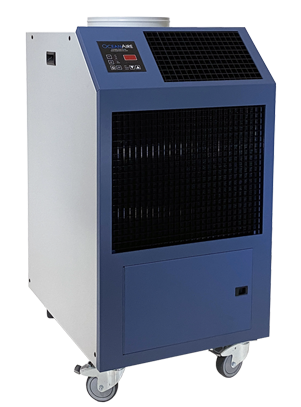

Oceanaire 2OAC2412: 2-Ton Deluxe Spot Cooler
$5,450.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OAC2412 2-Ton Portable Spot Cooler delivers 24,020 BTU/hr of cooling for server rooms, warehouses, offices, and commercial applications. Its air-cooled design provides targeted cooling with optional exhaust ducting and directional airflow accessories.
Key Specifications:
- Cooling Capacity: 24,020 BTU/hr (2 Tons)
- Electrical: 208–230V / Single Phase
- Plug: NEMA 6-20P
- Airflow: 810 CFM
- Compressor: 2 HP Rotary
- Condensate: 5-Gallon Tank (Pump Optional)
Optional Accessories: 12″ Ceiling Kit (CK-12), Dual 6″ Nozzles (2NK-2), Condensate Pump (UPK-230).
Nationwide shipping available. Contact us for pricing and availability.

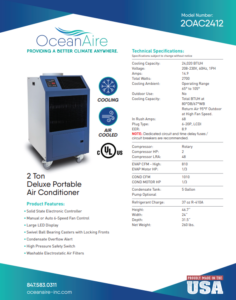

Resources and Downloads
The OceanAire 2OAC2412 2-Ton Portable Air Conditioner delivers 24,020 BTU/hr of cooling for commercial, industrial, and temporary HVAC applications. Designed for targeted spot cooling, this deluxe air-cooled portable air conditioner is ideal for warehouses, manufacturing facilities, server rooms, offices, equipment rooms, and commercial workstations.
Operating on 208–230V / 60Hz single-phase power with a NEMA 6-20P plug, the 2OAC2412 combines a 2 HP rotary compressor, 810 CFM of conditioned airflow, electronic temperature controls, washable air filters, and a 5-gallon internal condensate tank.
The unit features a separate condenser-air stream that can be managed with compatible ducting accessories, allowing warm discharge air to be directed away from the area receiving conditioned air.
Whether you need supplemental cooling during peak summer temperatures, emergency cooling during HVAC maintenance, or temporary air conditioning for commercial equipment, the OceanAire 2OAC2412 provides dependable spot cooling in a portable commercial design.
Key Features of the OceanAire 2OAC2412
- 24,020 BTU/hr Cooling Capacity: Delivers approximately 2 tons of cooling for commercial and industrial applications.
- 208–230V Single-Phase Operation: Designed for facilities equipped with compatible single-phase electrical service.
- NEMA 6-20P Plug: Uses a compatible 208–230V, 20-amp electrical receptacle.
- 2 HP Rotary Compressor: Provides refrigeration performance for targeted commercial cooling.
- 810 CFM Evaporator Airflow: Delivers conditioned air toward workstations, equipment, and occupied commercial areas.
- 1,010 CFM Condenser Airflow: Supports heat rejection through the air-cooled refrigeration system.
- 8.9 EER: Published cooling efficiency under the manufacturer’s stated testing conditions.
- 5-Gallon Condensate Tank: Collects moisture removed during cooling operation.
- Optional Condensate Pump: Compatible with the OceanAire UPK-230 pump kit for automatic condensate removal.
- Electronic Temperature Controls: Solid-state controller with a large LED display.
- Six-Speed Fan Control: Automatic or manual fan-speed adjustments.
- Optional Exhaust Ducting: Compatible with manufacturer-specified ceiling panel kits and air duct adapters.
- Directional Cooling Accessories: Optional dual-nozzle kit directs cooled air toward selected locations.
- Portable Construction: Heavy-duty swivel casters with locking front wheels.
- Washable Electrostatic Filters: Removable filters simplify routine maintenance.
- Safety Features: Includes high-pressure protection and a condensate overflow alert.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The OceanAire 2OAC2412 is not approved for outdoor operation.
Common Applications for the OceanAire 2OAC2412
Server Rooms and IT Equipment Cooling
Server rooms, network closets, and telecommunications spaces generate significant heat from continuously operating electronic equipment.
The OceanAire 2OAC2412 can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 24,020 BTU/hr cooling capacity makes it an option for smaller server rooms and equipment areas requiring approximately 2 tons of cooling.
Common applications include:
- Emergency cooling during HVAC failures
- Supplemental cooling for server equipment
- Networking and telecommunications rooms
- Equipment maintenance and upgrades
- Temporary IT infrastructure cooling
Because the 2OAC2412 is air-cooled, hot condenser air must be directed away from the conditioned space to prevent heat recirculation.
Electrical compatibility, cooling-load calculations, condenser exhaust routing, and condensate management should be evaluated before installation.
Read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Warehouses and Manufacturing Facilities
Manufacturing equipment and industrial processes can generate concentrated heat around machinery and workstations.
The OceanAire 2OAC2412 provides localized cooling for suitable commercial and industrial environments.
Applications include:
- Industrial workstations
- Assembly and packaging areas
- Equipment maintenance rooms
- Smaller production areas
- Warehouse workstations
- Temporary cooling during equipment repairs
Optional directional nozzle accessories help concentrate cooled air toward specific work areas.
Offices and Commercial Buildings
Commercial offices, retail facilities, institutional buildings, and other indoor workplaces may require additional cooling during HVAC maintenance or periods of increased cooling demand.
The OceanAire 2OAC2412 offers portable supplemental cooling without requiring installation of another permanent air conditioning system.
Its locking casters allow the unit to be repositioned as requirements change.
Temporary and Emergency HVAC Applications
Unexpected air conditioning failures can interrupt business operations and expose temperature-sensitive equipment to elevated temperatures.
The 2OAC2412 is an option for temporary cooling during:
- HVAC system maintenance and replacement
- Commercial renovations
- Emergency cooling projects
- Seasonal supplemental cooling
- Industrial equipment maintenance
Explore Commercial Climate Control Applications
OceanAire 2OAC2412 Technical Specifications
| Specification | OceanAire 2OAC2412 |
|---|---|
| Cooling Capacity | 24,020 BTU/hr (Approximately 2 Tons) |
| Equipment Type | Air-Cooled Portable Spot Cooler |
| Operation | Cooling Only |
| Electrical Supply | 208–230V / 60Hz / Single Phase |
| Rated Current | 14.9 Amps |
| Inrush Current | 68 Amps |
| Power Consumption | 2,700 Watts |
| Plug Type | NEMA 6-20P with LCDI |
| Energy Efficiency Ratio | 8.9 EER |
| Compressor Type | Rotary |
| Compressor Horsepower | 2 HP |
| Compressor LRA | 48 Amps |
| Evaporator Airflow — High | 810 CFM |
| Condenser Airflow | 1,010 CFM |
| Evaporator Fan Motor | 1/3 HP |
| Condenser Fan Motor | 1/3 HP |
| Refrigerant | R-410A (Published Configuration) |
| Refrigerant Charge | 37 oz |
| Condensate Tank | 5 Gallons |
| Condensate Pump | Optional — UPK-230 |
| Cooling Ambient Range | 65°F–105°F |
| Width | 24″ |
| Depth | 31.5″ |
| Height | 46.7″ |
| Net Weight | 260 lbs |
| Air Filters | Washable Electrostatic |
| Fan Controls | Automatic / Manual, 6 Speeds |
| Mobility | Swivel Casters with Locking Front Wheels |
| Outdoor Operation | Not Approved |
| Warranty | 1-Year Product / 5-Year Total Compressor Coverage |
Specifications reflect OceanAire’s published R-410A configuration and may change. Verify the current equipment nameplate, refrigerant, electrical requirements, and installation instructions before operation.
Electrical Requirements and Installation
The OceanAire 2OAC2412 operates on 208–230V / 60Hz single-phase electrical power.
The unit uses a NEMA 6-20P plug with LCDI protection, requiring a compatible NEMA 6-20 receptacle and properly rated circuit.
Published electrical specifications include:
- Rated Current: 14.9 Amps
- Inrush Current: 68 Amps
- Power Consumption: 2,700 Watts
- Plug Type: NEMA 6-20P
The unit cannot be plugged into a standard 115V household outlet.
OceanAire recommends a dedicated electrical circuit with appropriate time-delay fuses or circuit breakers.
Customers should verify their electrical service before purchasing.
Condenser Exhaust and Ventilation
The OceanAire 2OAC2412 uses an air-cooled condenser.
During cooling operation, heat is removed from the conditioned space and released through a separate condenser-air stream.
To provide effective cooling, this heat must be directed away from the area receiving cooled air.
The unit supports compatible ducting accessories, including ceiling panel kits and discharge adapters, for installations requiring condenser exhaust routing.
Unlike water-cooled air conditioners, the 2OAC2412 does not require a condenser water supply.
However, it still requires an appropriate condenser heat-rejection arrangement.
Condenser Exhaust Ducting
OceanAire offers the CK-12 ceiling panel kit for installations where condenser discharge can be directed through a suitable suspended ceiling arrangement.
The receiving ceiling space must be capable of handling the heat and airflow.
Extended duct configurations should follow the manufacturer’s restrictions on duct length, fittings, and static pressure.
Condensate Management
The OceanAire 2OAC2412 includes a 5-gallon internal condensate tank.
Moisture removed during cooling operation collects in the tank, and the unit includes an overflow alert.
For installations requiring automatic condensate removal, OceanAire offers the optional UPK-230 condensate pump kit.
This accessory can reduce the need for manual tank emptying during extended cooling operation.
The condensate pump is not standard equipment.
Optional Accessories for the OceanAire 2OAC2412
OceanAire offers several accessories specifically identified for the 2OAC2412.
OceanAire 12-Inch Ceiling Panel Kit — CK-12
The CK-12 ceiling panel kit supports condenser discharge through an appropriate suspended ceiling installation.
It includes a 12-inch flexible duct and a compatible 2-foot by 2-foot ceiling panel.
Manufacturer Part Number: CK-12
Contact Climate Control Solutions for pricing and availability.
OceanAire Dual 6-Inch Nozzle Kit — 2NK-2
The 2NK-2 nozzle kit includes two 6-inch directional outlets.
This accessory helps direct cooled air toward machinery, workstations, or other localized cooling locations.
Manufacturer Part Number: 2NK-2
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — 2DEP-12
The 2DEP-12 return-air plenum supports installations where return air must be ducted back to the unit.
It may be useful when the portable air conditioner is positioned away from the conditioned area.
Manufacturer Part Number: 2DEP-12
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-10
The 2DDA-10 discharge adapter supports extended ducting arrangements.
The correct duct size, attachment method, allowable length, and airflow restrictions should be confirmed before ordering.
Manufacturer Part Number: 2DDA-10
Contact Climate Control Solutions for pricing and availability.
OceanAire Universal Condensate Pump Kit — UPK-230
The UPK-230 optional condensate pump provides automatic removal of collected moisture.
This accessory is useful when regularly emptying the 5-gallon tank would be inconvenient.
Manufacturer Part Number: UPK-230
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — 2DCP-2
The 2DCP-2 condenser return-air plenum supports installations where air needs to be ducted to the condenser inlet.
Manufacturer Part Number: 2DCP-2
Contact Climate Control Solutions for pricing and availability.
Additional Portable HVAC Accessories
Climate Control Solutions supplies additional flexible ducting and installation accessories.
Browse Portable HVAC Accessories
Confirm compatibility with the 2OAC2412 before selecting hoses, adapters, or ducting.
Why Choose the OceanAire 2OAC2412?
The OceanAire 2OAC2412 combines 24,020 BTU/hr of cooling capacity with portable construction and commercial-grade refrigeration components.
Its 208–230V single-phase configuration makes it a practical option for commercial facilities that have compatible electrical service but do not require a three-phase model.
The 5-gallon condensate tank, electronic controls, washable filters, and optional ducting accessories provide flexibility for temporary and supplemental cooling.
For applications requiring automatic condensate removal, the optional UPK-230 kit is available.
Compare Other Portable Air Conditioners
Climate Control Solutions offers additional equipment for different cooling capacities and applications:
- OceanAire 2OAC3612 Series – 3-Ton Portable Spot Cooler — Higher-capacity air-cooled cooling with multiple electrical configurations.
- OceanAire 2OAC6012 Series – 5-Ton Portable Spot Cooler — Higher-capacity 5-ton cooling with a built-in condensate pump.
- OceanAire 2OACH2412 – 2-Ton Portable Heat Pump — Similar nominal cooling capacity with an added heating function.
- OceanAire OWC2412 – 2-Ton Water-Cooled Portable AC — Water-cooled alternative for installations where conventional hot-air exhaust ducting is impractical.
Browse Portable Air-Cooled Units
Frequently Asked Questions About the OceanAire 2OAC2412
How much cooling capacity does the OceanAire 2OAC2412 provide?
The OceanAire 2OAC2412 delivers 24,020 BTU/hr of cooling capacity, approximately 2 tons.
Does the 2OAC2412 provide heating?
No. The 2OAC2412 is a cooling-only portable air conditioner.
For both heating and cooling, OceanAire offers the separate 2OACH2412 portable heat pump.
What electrical power does the 2OAC2412 require?
The unit operates on 208–230V / 60Hz single-phase power and uses a NEMA 6-20P plug.
Can the 2OAC2412 plug into a standard household outlet?
No. It requires a compatible 208–230V electrical circuit and NEMA 6-20 receptacle.
Does the 2OAC2412 require exhaust ducting?
The unit requires appropriate condenser heat rejection. Depending on the installation, compatible exhaust ducting or a ceiling panel kit may be needed.
What ceiling kit is compatible with the 2OAC2412?
OceanAire identifies the CK-12 ceiling panel kit for this model.
Does the 2OAC2412 include a condensate pump?
No. The standard configuration features a 5-gallon condensate tank. The UPK-230 condensate pump kit is optional.
What size nozzle kit does the 2OAC2412 use?
OceanAire identifies the 2NK-2 dual 6-inch directional nozzle kit.
Can the 2OAC2412 cool a server room?
Yes. It can provide temporary or supplemental cooling for properly sized server rooms with suitable electrical service, condenser exhaust management, and condensate handling.
Is the 2OAC2412 approved for outdoor operation?
No. OceanAire specifies that the unit is not approved for outdoor use.
What refrigerant does the 2OAC2412 use?
The published specifications list R-410A with a 37-ounce charge. Confirm the refrigerant for the actual unit before servicing or ordering replacement parts.
What warranty comes with the 2OAC2412?
OceanAire provides a 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OAC2412 from Climate Control Solutions
Climate Control Solutions supplies OceanAire portable spot coolers, commercial air conditioners, and temporary cooling equipment nationwide.
Whether you need one 2OAC2412 for an office or equipment room or multiple units for a commercial facility, our team can assist with equipment selection, electrical requirements, compatible accessories, and freight arrangements.
Contact Climate Control Solutions for current pricing, availability, and bulk-order quotes.
Phone: (800) 633-8711
Email: [email protected]
Trusted by Clients for Exceptional Service
Looking For Multiple Units?
Contact us using the button below and we can help you get accurate pricing for your bulk orders.
Related products
Top-Quality Brands for Superior Climate Control
At Climate Control Solutions, we prioritize quality when it comes to spot coolers, portable heat pumps, and evaporative coolers. That’s why we collaborate with some of the industry’s most respected brands to offer you the finest products. Our selection features renowned names like Airrex USA, Big Ass Fans, Cajun Kool, Cool Boss, Flagro, and Master—brands celebrated for their excellence, innovation, and durability.
