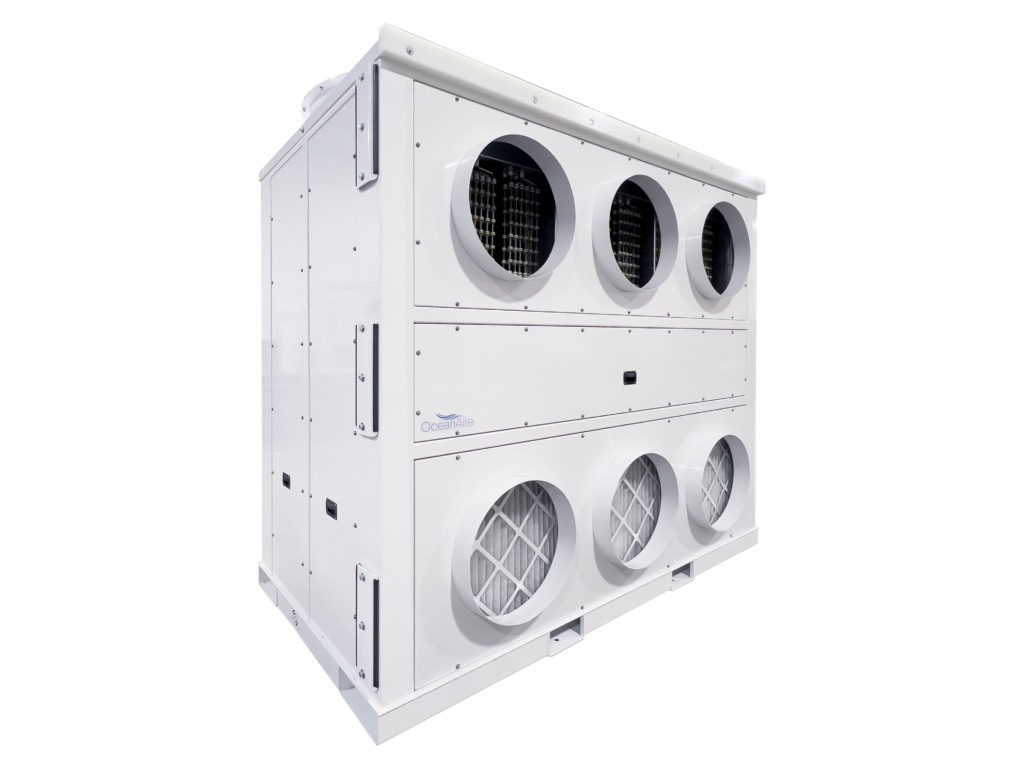

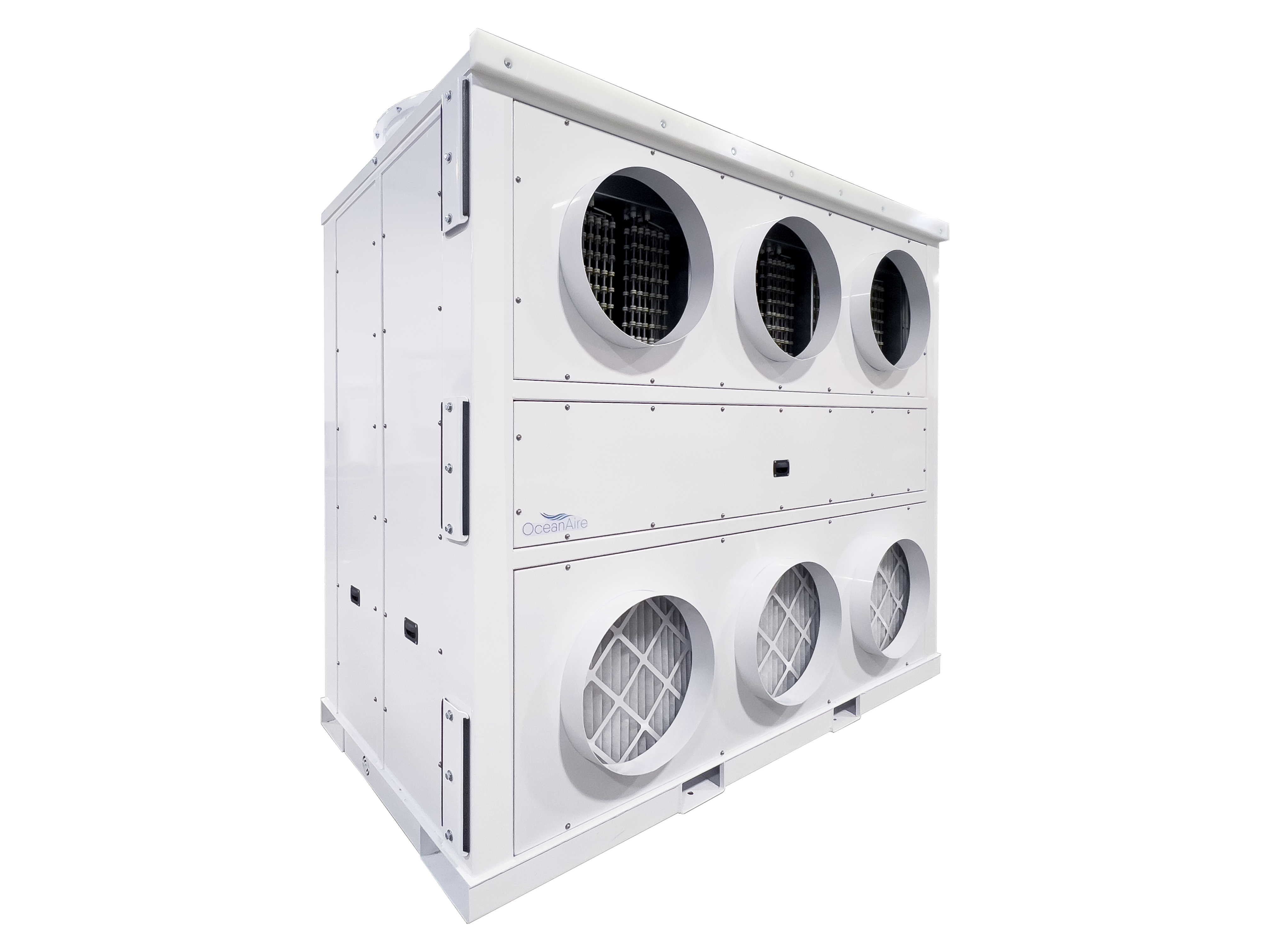

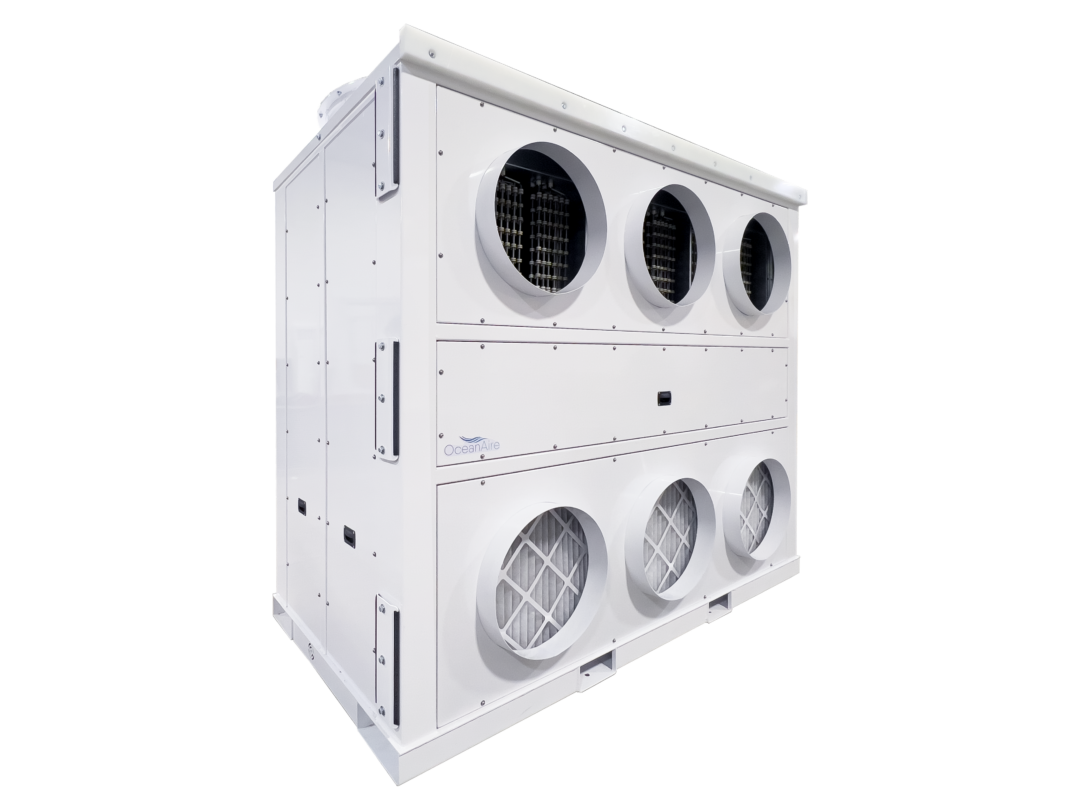

Oceanaire OVAC36034AH – 30-Ton Vertical Portable Air Conditioner with Electric Heat (460V, 3 Phase)
$79,999.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire OVAC36034AH 30-Ton Vertical Portable Air Conditioner delivers 386,746 BTU/hr of cooling and 72 kW of electric heat for warehouses, manufacturing facilities, large events, and temporary industrial HVAC applications. Its outdoor-rated, air-cooled design features twin scroll compressors and rugged steel construction.
Key Specifications:
- Cooling Capacity: 386,746 BTU/hr (30-Ton Class)
- Electric Heat: 72 kW (245,664 BTU/hr)
- Electrical: 460V / Three Phase
- Airflow: 9,500 CFM
- Power Connection: CAM-LOK
- Installation: Outdoor-Rated
- Weight: 3,507 lbs
Optional Accessories: Duct adapter kits and compatible industrial ducting.
Browse Industrial HVAC Equipment
Nationwide shipping available. Contact us for pricing and availability.
The OceanAire OVAC36034AH 30-Ton Vertical Portable Air Conditioner with Electric Heat delivers 386,746 BTU/hr of cooling and 72 kW (245,664 BTU/hr) of electric heating for large commercial, industrial, and temporary climate control applications. Designed as an outdoor-rated, self-contained HVAC system, the OVAC36034AH is ideal for warehouses, manufacturing facilities, temporary structures, aircraft hangars, construction projects, festivals, and emergency cooling deployments.
Operating on 460V / 60Hz three-phase power, the OVAC36034AH combines twin 15-ton scroll compressors, 9,500 CFM of supply airflow, a high-capacity belt-drive blower, and two-stage electric heat in a rugged vertical cabinet.
The unit includes a heavy-duty welded steel frame with forklift pockets, CAM-LOK power connections, electronic controls, and optional duct adapter kits for temporary HVAC installations.
For facilities requiring high-capacity cooling and electric heat in one transportable system, the OceanAire OVAC36034AH provides an industrial climate control solution.
Key Features of the OceanAire OVAC36034AH
- 30-Ton Cooling Class: Delivers 386,746 BTU/hr of rated cooling capacity for demanding commercial and industrial applications.
- 72 kW Electric Heat: Provides 245,664 BTU/hr of electric heating capacity through a two-stage heating system.
- 460V Three-Phase Operation: Designed for facilities and temporary installations with compatible high-voltage electrical service.
- Outdoor-Rated Construction: Suitable for properly installed outdoor temporary HVAC applications.
- Twin Scroll Compressors: Features two nominal 15-ton scroll compressors for high-capacity refrigeration.
- 9,500 CFM Supply Airflow: Belt-drive evaporator blower delivers substantial conditioned airflow.
- Vertical Equipment Configuration: Upright cabinet design provides high cooling capacity without the layout of a conventional horizontal packaged unit.
- CAM-LOK Power Connections: Industrial electrical connections with a busbar arrangement that supports compatible daisy-chain power configurations.
- Heavy-Duty Steel Frame: Welded construction with two-way forklift pockets for transportation and positioning.
- Digital HVAC Controls: DataNab 24VAC control system with equipment operating monitoring.
- Refrigeration Controls: Thermostatic expansion valve refrigerant control with hot-gas bypass.
- Phase Monitoring: Built-in phase monitor protection for three-phase electrical operation.
- Adjustable Supply Air: Aircraft-grade bidirectional louvers direct conditioned airflow.
- Pleated Air Filters: Includes three 28″ × 30″ × 2″ filters.
- Garden-Hose Condensate Drain: Simplifies condensate routing to an appropriate drainage location.
- Optional Duct Adapters: Supports compatible temporary ducting installations.
- Event Installation Features: Tent-wall clamps with rain guards support suitable temporary-structure applications.
Industrial and Commercial Applications
Warehouses and Manufacturing Facilities
Large warehouses, production facilities, and industrial buildings often require substantial cooling capacity during summer operations.
The OceanAire OVAC36034AH provides high-capacity cooling for temporary or supplemental HVAC installations where permanent equipment cannot meet operational requirements.
Its 30-ton cooling class and 9,500 CFM of supply airflow make it an option for demanding applications such as:
- Manufacturing and assembly facilities
- Industrial equipment areas
- Distribution centers and warehouses
- Production-line cooling
- Temporary cooling during HVAC replacement
- Emergency cooling during equipment failures
The unit’s optional duct adapters allow conditioned air to be delivered to suitable indoor areas while the equipment is positioned outdoors.
Temporary Structures, Tents, and Events
The OVAC36034AH is especially useful for temporary climate control applications requiring large amounts of cooling or heating.
Its outdoor-rated design, high airflow, and electric heating system make it suitable for properly planned installations serving:
- Commercial event tents
- Festivals and concerts
- Temporary hospitality facilities
- Exhibition spaces
- Large temporary enclosures
- Seasonal events
Integrated tent-wall mounting features and optional duct accessories help support these installations.
Construction and Renovation Projects
Construction projects may require temporary heating or cooling before a building’s permanent HVAC system becomes operational.
The OVAC36034AH can provide conditioned air during commercial renovations, new construction, major equipment replacement, and temporary occupancy.
Its welded steel frame and forklift pockets allow the unit to be transported and positioned using suitable material-handling equipment.
Aircraft Hangars and Large Commercial Buildings
Aircraft hangars, maintenance areas, and large commercial spaces can require substantial climate control capacity.
The OVAC36034AH offers supplemental or temporary heating and cooling where the application load, airflow distribution, and electrical requirements are appropriate.
The correct number of units should be determined through a cooling-load and heating-load assessment rather than floor area alone.
Emergency HVAC and Disaster Recovery
When large commercial HVAC equipment fails, maintaining appropriate indoor conditions can become a major operational concern.
The OVAC36034AH can serve temporary HVAC installations during planned outages, equipment replacement, and emergency recovery.
Explore Commercial Climate Control Solutions
OceanAire OVAC36034AH Technical Specifications
| Specification | OceanAire OVAC36034AH |
|---|---|
| Nominal Cooling Class | 30 Tons |
| Rated Cooling Capacity | 386,746 BTU/hr |
| Electric Heating Capacity | 72 kW |
| Heating Capacity | 245,664 BTU/hr |
| Equipment Type | Outdoor Vertical Air-Cooled AC with Electric Heat |
| Electrical Supply | 460V / 60Hz / Three Phase |
| Cooling Full-Load Current | 56 Amps |
| Heating Full-Load Current | 96 Amps |
| Energy Efficiency Ratio | 11.5 EER |
| Compressor Type | Scroll |
| Number of Compressors | 2 |
| Nominal Compressor Capacity | 15 Tons Each |
| Compressor RLA | 26.9 Amps |
| Compressor LRA | 180 Amps |
| Refrigerant | R-410A |
| Refrigerant Charge | 240 oz per Circuit |
| Refrigerant Control | TXV with Hot-Gas Bypass |
| Evaporator Airflow | 9,500 CFM |
| Evaporator Blower | Belt Drive |
| Maximum Static Discharge Pressure | 1.18 High / 0.79 Low |
| Electric Heating | Two Stages |
| Heating Temperature Rise | 41°F High / 59°F Low |
| Controls | DataNab 24VAC Controller |
| Power Connection | CAM-LOK with Busbar |
| Phase Protection | Phase Monitor |
| Air Filters | Three 28″ × 30″ × 2″ Pleated Filters |
| Supply-Air Outlets | Bidirectional Louvers |
| Condensate Drain | Garden-Hose Connection |
| Frame | Welded Steel |
| Equipment Handling | Two-Way Forklift Pockets |
| Dimensions (W × D × H) | 95″ × 47″ × 86″ |
| Net Weight | 3,507 lbs |
| Installation | Outdoor-Rated |
| Optional Accessories | Duct Adapter Kits |
Specifications reflect OceanAire’s published OVAC36034AH documentation and are subject to change. Verify the equipment nameplate, electrical requirements, operating conditions, and installation details before ordering.
Cooling Performance and Airflow
The OceanAire OVAC36034AH delivers 386,746 BTU/hr of rated cooling capacity using two scroll compressors.
The refrigeration system incorporates thermostatic expansion valve controls and hot-gas bypass technology.
A belt-drive evaporator blower supplies approximately 9,500 CFM of conditioned air.
Air Distribution
The unit features aircraft-grade bidirectional supply-air louvers to help distribute conditioned air into the desired area.
Optional duct adapters are available for temporary installations where conditioned air must be routed through ductwork.
Duct dimensions, permissible lengths, static pressure, and airflow requirements should be confirmed before selecting accessories.
Air Filtration
The OVAC36034AH includes three pleated air filters measuring:
28″ × 30″ × 2″ each
Filters should be inspected and replaced as required by operating conditions and the manufacturer’s maintenance instructions.
72 kW Electric Heating System
Unlike portable heat pumps that obtain heating energy through a refrigeration cycle, the OVAC36034AH includes integrated electric resistance heating.
The system provides:
- 72 kW electric heating capacity
- 245,664 BTU/hr heating output
- Two-stage electric heating
- 96-amp published heating full-load current
This allows the unit to provide supplemental heating for suitable industrial facilities, event structures, and temporary commercial installations.
Electrical service must be sized for the equipment’s heating requirements, which differ from its cooling requirements.
Electrical and Power Connection Requirements
The OVAC36034AH operates on 460V / 60Hz three-phase electrical power.
Unlike smaller commercial portable air conditioners that use standard NEMA plugs, this industrial unit features CAM-LOK connections and a busbar system.
The manufacturer identifies:
- Cooling FLA: 56 amps
- Heating FLA: 96 amps
- Power connection: CAM-LOK
- Electrical protection: Phase monitor
The busbar configuration supports compatible daisy-chain power arrangements.
However, multiple units must never be connected without verifying the manufacturer’s power distribution requirements, conductor sizing, available service, and applicable electrical codes.
Electrical installation should be performed by qualified personnel using the equipment’s current nameplate and installation documentation.
Outdoor Installation and Equipment Handling
The OceanAire OVAC36034AH is designed for outdoor HVAC deployment.
Its heavy-duty welded steel frame includes two-way forklift pockets for loading, unloading, and positioning.
With a net weight of approximately 3,507 pounds, the unit requires suitable handling equipment and a properly prepared installation location.
The equipment should be placed on a stable, level surface with appropriate airflow clearances.
Although the unit is outdoor-rated, the electrical connections, ducting, drainage, and installation must still follow the manufacturer’s requirements.
Condensate Drainage
The OVAC36034AH includes a garden-hose condensate drain connection.
Condensate must be routed to an appropriate drainage location.
Any additional condensate pumping equipment should be selected based on the installation’s elevation, distance, and drainage requirements.
Optional Accessories for the OceanAire OVAC36034AH
Duct Adapter Kits
OceanAire offers optional duct adapter kits for the OVAC series.
These accessories support installations requiring supply-air ducting between the outdoor unit and the conditioned space.
The correct adapter arrangement depends on the project layout, duct dimensions, required airflow, and static pressure.
Contact Climate Control Solutions to confirm compatible adapter options.
Temporary HVAC Ducting
Large-capacity temporary air conditioning installations may require appropriately sized industrial ductwork.
Ducting selection should account for:
- The unit’s 9,500 CFM supply airflow
- Supply-air connection dimensions
- Allowable external static pressure
- Duct run length and fittings
- Air leakage and insulation
- Installation location and operating conditions
Power Distribution and CAM-LOK Cables
The OVAC36034AH uses industrial CAM-LOK connections rather than a standard receptacle plug.
Compatible power distribution equipment and cables must be selected for the available electrical service and equipment requirements.
Contact Climate Control Solutions to discuss the installation’s power connection needs.
Why Choose the OceanAire OVAC36034AH?
The OceanAire OVAC36034AH combines 30-ton-class cooling, 72 kW electric resistance heating, and outdoor-rated industrial construction in one vertical HVAC system.
Its twin scroll compressors, 9,500 CFM blower, electric heating stages, and optional duct adapters provide flexibility for large temporary climate control projects.
The heavy-duty steel frame, forklift pockets, and CAM-LOK electrical connections make it particularly relevant for industrial facilities, construction projects, and professional temporary HVAC installations.
Compare Other Industrial Portable Air Conditioners
Climate Control Solutions supplies additional industrial portable air conditioning equipment for different capacities and project requirements.
- OceanAire OVAC24034AH – 20-Ton Vertical AC with Electric Heat — Smaller-capacity outdoor-rated vertical air conditioner.
- Industrial HVAC Equipment — Explore additional large-capacity cooling and heating solutions.
- Portable Air-Cooled Units — Browse other air-cooled commercial equipment.
Frequently Asked Questions About the OVAC36034AH
How much cooling capacity does the OceanAire OVAC36034AH provide?
The OVAC36034AH is a nominal 30-ton vertical air conditioner with a manufacturer-rated cooling capacity of 386,746 BTU/hr.
Does the OVAC36034AH include heating?
Yes. It includes 72 kW of two-stage electric resistance heating, equivalent to 245,664 BTU/hr.
Is the OVAC36034AH a heat pump?
No. The OVAC36034AH uses a refrigeration system for cooling and an integrated electric resistance heating system for heating.
What voltage does the OVAC36034AH require?
The unit operates on 460V / 60Hz three-phase electrical service.
Does the OVAC36034AH use a standard electrical plug?
No. It uses CAM-LOK power connections with a busbar arrangement. Electrical installation must follow the manufacturer documentation.
Can the OVAC36034AH operate outdoors?
Yes. OceanAire identifies the OVAC36034AH as an outdoor vertical air conditioner designed for appropriate temporary HVAC installations.
What is the airflow of the OVAC36034AH?
The published evaporator airflow is approximately 9,500 CFM.
What compressors does the OVAC36034AH use?
The unit features two scroll compressors, each rated at a nominal 15 tons.
Can the OVAC36034AH serve a large event tent?
Yes. The manufacturer identifies temporary event structures, festivals, and similar applications as suitable uses when the installation is properly engineered.
Does this unit require water connections?
No condenser water connection is required because the OVAC36034AH is air-cooled. A condensate drain connection is still required.
Are duct adapters available?
Yes. OceanAire identifies optional duct adapter kits for the OVAC series. Contact Climate Control Solutions to confirm the correct configuration.
What refrigerant does the OVAC36034AH use?
The manufacturer’s published specifications list R-410A refrigerant, with a charge of 240 ounces per refrigeration circuit.
Order the OceanAire OVAC36034AH from Climate Control Solutions
Climate Control Solutions supplies OceanAire high-capacity portable air conditioners, industrial HVAC equipment, and temporary climate control systems nationwide.
Whether your project requires one OVAC36034AH or multiple large-capacity units, our team can assist with equipment selection, electrical considerations, ducting accessories, and freight arrangements.
Contact Climate Control Solutions for current pricing, availability, and project-specific quotes.
