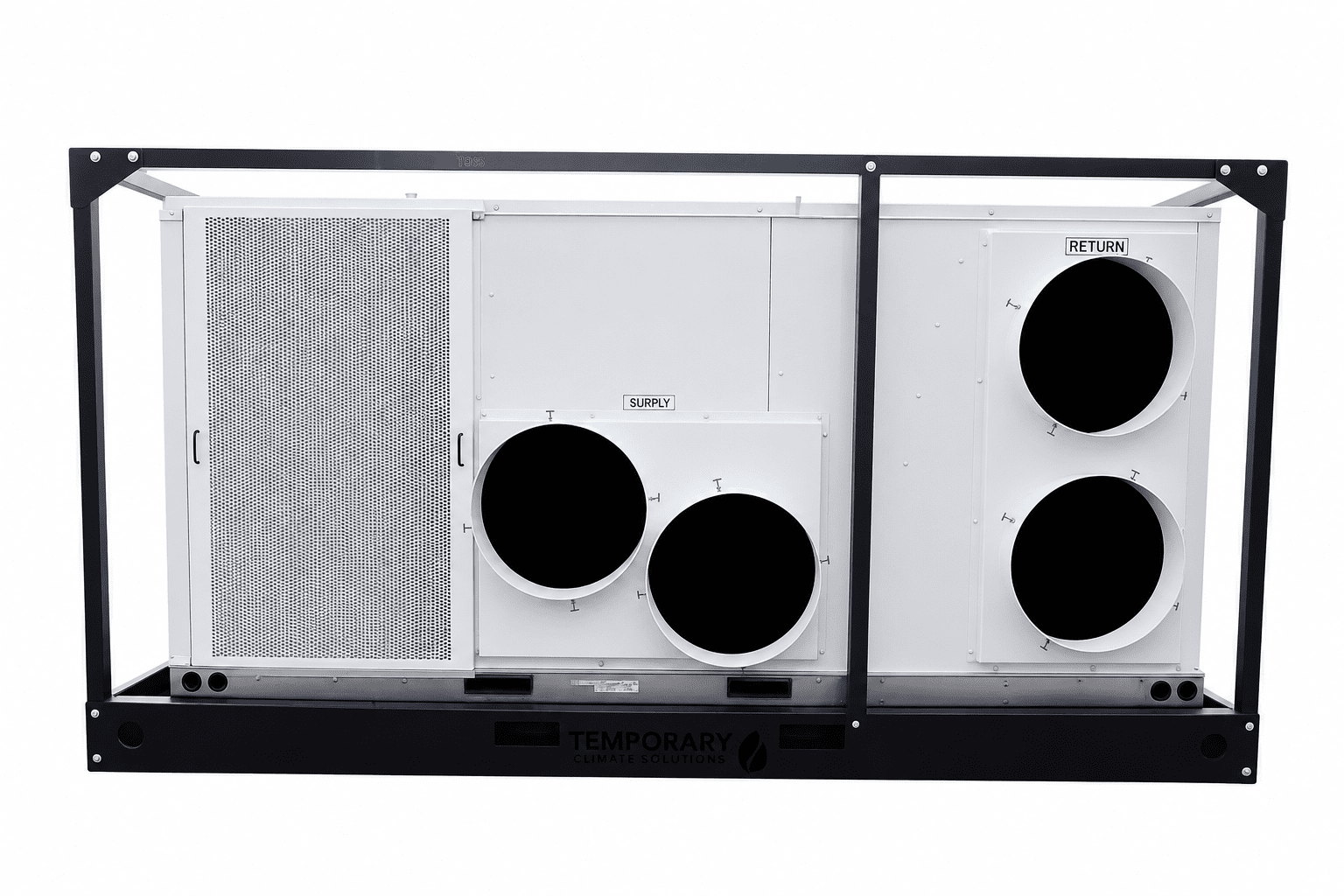

The TCS-25T is a 25-ton portable air conditioner designed for large temporary cooling applications. With 10,000 CFM of airflow, 460V three-phase power, cam lock connectors, and large 20″ supply and return air connections, this unit is built for commercial, industrial, event, and construction cooling projects.
The TCS-25T is a strong option when you need high-capacity temporary cooling for a warehouse, facility, job site, tent, or other large space.
For pricing, availability, and freight options, contact Climate Control Solutions at (800) 633-8711.
Large-Capacity Temporary Cooling
The TCS-25T is built to provide serious cooling power in demanding environments. Its 25-ton capacity and 10,000 CFM airflow make it a good fit for large open areas, temporary HVAC replacement, emergency cooling, and commercial job sites that need fast climate control.
This unit is designed for 460V / 3-phase power and includes cam lock connectors for temporary power hookup.
Designed for Jobsite and Facility Use
The TCS-25T is made for temporary climate control applications where durability, accessibility, and fast setup matter. The line drawing shows easy-access service panels for the blower, electrical section, and filter area, helping simplify maintenance and field service.
The unit also includes a thermostat jack, main circuit breakers, condenser fans, and a condensate drain connection.
Key Features
- 25-ton portable air conditioner
- 10,000 CFM airflow
- 460V / 3-phase operating voltage
- Cam lock connectors
- Thermostat jack
- Main circuit breakers
- Service access for blower, electrical, and filter sections
- 2 x 20″ supply air connections
- 2 x 20″ return air connections
- ¾” NPT condensate drain connection
- 3,200 lb unit weight
- Built for temporary cooling applications
Common Applications
The TCS-25T is commonly used for:
- Construction cooling
- Warehouse cooling
- Manufacturing facilities
- Temporary HVAC replacement
- Emergency cooling
- Event tents
- Industrial cooling
- Commercial building cooling
- Large open-area spot cooling
- Backup cooling during HVAC repairs
Airflow and Duct Connections
The TCS-25T is designed with large duct connections for moving high volumes of air into and out of the space.
| Connection Type | Specification |
|---|---|
| Supply Air | 2 x 20″ |
| Return Air | 2 x 20″ |
| Airflow | 10,000 CFM |
| Drain Connection | ¾” NPT |
Electrical Specifications
| Electrical Specification | Detail |
|---|---|
| Operating Voltage | 460V / 3PH |
| Cool Only MOP | 70 amps |
| Heat Only MOP | 120 amps |
| Connection Type | Cam lock connectors |
Dimensions and Weight
| Specification | Detail |
|---|---|
| Length | 133″ |
| Width | 95″ |
| Height | 72.5″ |
| Weight | 3,200 lbs. |
Sound Level
The TCS-25T has a listed sound level of 92 dB, making it best suited for commercial, industrial, outdoor, or jobsite applications where high-capacity cooling is the priority.
Easy Service Access
The TCS-25T layout includes dedicated service access points for key areas of the unit:
- Blower access panel
- Electrical access panel
- Filter access panel
- Condensate drain connection
- Main circuit breakers
- Thermostat jack
- Cam lock connectors
These access points help support faster setup, inspection, and service in the field.
Request a Quote
Climate Control Solutions can help you determine whether the TCS-25T 25-ton portable air conditioner is the right fit for your cooling project. We can also help with freight, temporary power requirements, ducting needs, and accessory options.
Call (800) 633-8711 or contact Climate Control Solutions today for pricing and availability.
