AES 25-Ton Portable Air Conditioner with Heat & Dehumidification
Quick Quote Request
Buy Direct & Save
"*" indicates required fields

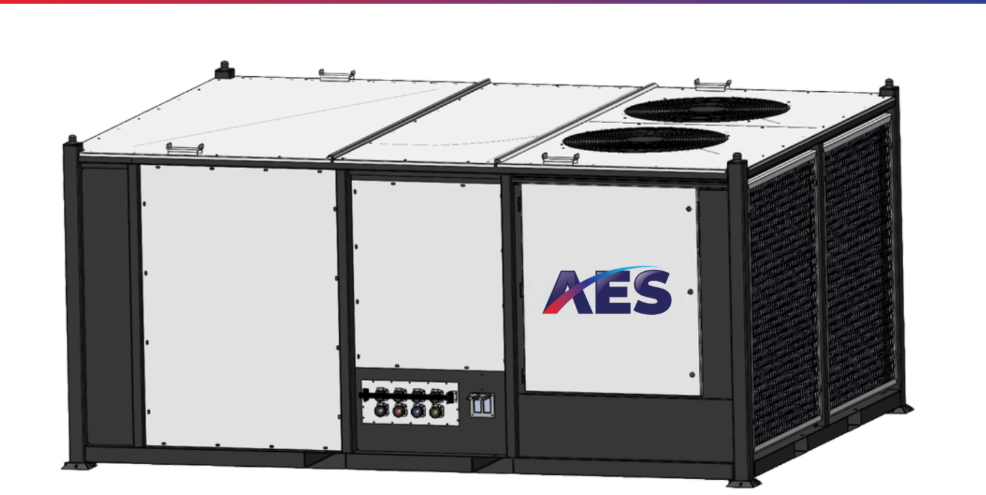

The AES 25-Ton V2 Portable AC Unit with DH Option is a heavy-duty temporary climate control unit built for large commercial, industrial, event, and construction applications. Designed by American Event Services, this unit provides high-capacity cooling, electric heat, and optional dehumidification in one rugged package.
With 300,000 BTU of cooling capacity, integrated 20″ supply and return plenums, cam lock electrical connections, and a welded structural steel frame, this 25-ton portable HVAC unit is built for demanding job sites where reliable temperature control matters.
For pricing, availability, or help sizing your application, contact Climate Control Solutions at (800) 633-8711.
Built for Large-Scale Temporary Cooling
This 25-ton portable air conditioner is designed for applications that require serious cooling capacity and flexible deployment. It uses two 12.5-ton scroll compressors and delivers 10,000 SCFM of evaporator airflow, making it a strong fit for temporary cooling in warehouses, large tents, manufacturing facilities, construction sites, emergency response projects, and commercial spaces.
The unit is powered by 460V / 3-phase / 60Hz and uses single-point cam lock connections, helping simplify electrical setup on commercial and industrial job sites.
Cooling, Heating, and Dehumidification Capability
The AES25TDH46AEL is more than just a cooling unit. It includes a heat kit and dehumidification functionality, allowing it to support a wider range of temporary climate control needs.
The unit includes two 36 kW open coil heat kits, providing approximately 245,736 BTU of heat. It also includes both standard and dehumidification operating modes, with a custom thermostat controller for auto, heat, cool, and optional dehumidification operation.
This makes the unit useful for projects that require temperature control, moisture control, or both.
Rugged Construction for Jobsite Use
The AES 25-ton unit is built with rough-duty service in mind. It includes a heavy-duty welded structural steel inner frame, powder-coated construction, gasketed panels, stainless steel hardware, and vibration isolation on the refrigeration side.
For transportation and placement, the unit includes 3″ x 8″ fork pockets on all four sides along with strap guides for tie-downs and shipping protection. These details make it easier to move, position, and secure the unit on active job sites.
Key Features
- 25-ton design cooling capacity
- 300,000 BTU evaporator load
- 245,736 BTU electric heat capacity
- Optional dehumidification mode
- R-454B refrigerant with TXV metering device
- Two 12.5-ton scroll compressors
- 10,000 SCFM evaporator airflow
- 12,000 CFM condenser airflow
- High-static blower with 10 HP variable speed drive
- VFD-controlled condenser fans for quieter operation
- Integrated 20″ supply and return plenums
- Single-point cam lock electrical connections
- Custom thermostat controller
- Voltage and phase protection with safety shutoff
- Compressor crankcase heaters for low ambient operation
- Replaceable 20″ x 20″ x 2″ return air filters
- Fork pockets on all four sides
- Heavy-duty powder-coated steel frame
Common Applications
The AES 25-ton portable AC unit is a strong option for:
- Construction cooling
- Large event tents
- Warehouses
- Manufacturing facilities
- Emergency cooling
- Industrial process support
- Temporary HVAC replacement
- Commercial building cooling
- Moisture control and dehumidification projects
- Large open-area climate control
Duct and Airflow Connections
The unit is designed with large duct and hose connections for high-volume airflow. It includes:
- (3) 20″ supply connections
- (4) 20″ return connections
The integrated supply and return plenums help simplify ducting for temporary installations where conditioned air needs to be delivered into a space and return air needs to be pulled back to the unit.
Electrical Requirements
This unit is designed for large commercial and industrial electrical service.
| Electrical Specification | Detail |
|---|---|
| Certification | UL Listed 60335-2-40 |
| Power | 460V / 3PH / 60Hz |
| Connection Type | Single-point cam lock connections |
| Cooling Amps | 55 A |
| Heating Amps | 92 A |
| Full DH Amps | 157 A |
| MCA | 202.25 A |
| MOP | 209 A |
Unit Dimensions
| Specification | Detail |
|---|---|
| Length | 130″ |
| Width | 94″ |
| Height | 61.2″ |
| Weight | 3,800 lbs. |
Performance Specifications
| Performance Detail | Specification |
|---|---|
| Design Capacity | 25 Tons |
| Evaporator Load | 300,000 BTU |
| Evaporator Airflow | 10,000 SCFM |
| Evaporator Fan HP | 10 HP |
| Unit External Static Pressure | 2″ Hâ‚‚O |
| Condenser Load | 377,000 BTU |
| Condenser Airflow | 12,000 CFM |
| Outdoor Ambient Design Temp | 95°F DB / 75°F WB |
| Evaporator Inlet | 80°F DB / 67°F WB |
| Evaporator Discharge | 60°F DB / 57.5°F WB |
Service-Friendly Design
The AES 25-ton unit is designed for easier service and maintenance in the field. It includes easy-access filter doors, removable condenser fan safety shrouds, removable aluminum condenser coil guards, exterior refrigerant quick access ports, and an easy-access copper piping panel for sight glass viewing.
The unit also includes onboard troubleshooting test terminals and voltage/phase protection with an out-of-range indicator and safety shutoff.
Request a Quote
Climate Control Solutions can help you determine whether this 25-ton portable air conditioner with heat and dehumidification is the right fit for your job site, facility, or temporary cooling project.
Call (800) 633-8711 or contact Climate Control Solutions today for pricing, availability, freight, and accessory options.
