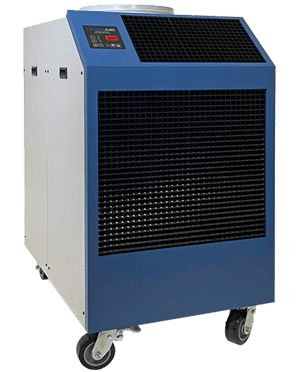

OceanAire 20ACH6012: 5-Ton Portable Heat Pump & Spot Cooler
$15,500.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OACH6012 5-Ton Portable Heat Pump delivers 60,100 BTU/hr of cooling and 53,500 BTU/hr of heating for warehouses, manufacturing facilities, server rooms, and commercial applications. Its 208–230V single-phase design provides high-capacity heating and cooling without requiring three-phase power.
Key Specifications:
- Cooling Capacity: 60,100 BTU/hr (5 Tons)
- Heating Capacity: 53,500 BTU/hr
- Electrical: 208–230V / Single Phase
- Plug: NEMA 6-50P
- Airflow: 1,950 CFM
- Condensate Pump: Built-In
Optional Accessories:
16″ Ceiling Kit (CK-16) | Dual 8″ Nozzle Kit (2NK-3)
Nationwide shipping available. Contact us for pricing and availability.

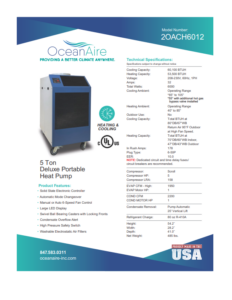

Resources and Downloads
The OceanAire 2OACH6012 5-Ton Portable Heat Pump delivers 60,100 BTU/hr of cooling and 53,500 BTU/hr of heating for demanding commercial and industrial applications. Designed for temporary and supplemental climate control, this deluxe portable heat pump is ideal for warehouses, manufacturing facilities, server rooms, equipment rooms, and commercial buildings.
Operating on 208–230V / 60Hz single-phase power with a NEMA 6-50P plug, the 2OACH6012 provides high-capacity heating and cooling without requiring three-phase electrical service. The unit features a 5 HP scroll compressor, 1,950 CFM of conditioned airflow, electronic temperature controls, washable air filters, and a built-in automatic condensate pump.
Whether you need emergency cooling during HVAC maintenance, supplemental heating for an industrial workspace, or temporary climate control for a commercial project, the OceanAire 2OACH6012 offers year-round heating and cooling flexibility.
Key Features of the OceanAire 2OACH6012
- 60,100 BTU/hr Cooling Capacity: Provides approximately 5 tons of cooling for commercial and industrial applications.
- 53,500 BTU/hr Heating Capacity: Delivers supplemental heating for workspaces, manufacturing facilities, and temporary HVAC installations.
- 208–230V Single-Phase Operation: Designed for facilities with compatible 208–230V / 60Hz single-phase electrical service.
- NEMA 6-50P Plug: Uses a heavy-duty 250V electrical connection requiring a compatible receptacle and properly rated circuit.
- 5 HP Scroll Compressor: Commercial compressor for high-capacity heating and cooling.
- High-Capacity Airflow: Provides 1,950 CFM of conditioned airflow and 2,200 CFM of condenser airflow.
- Automatic Heating and Cooling Changeover: Electronic temperature controls support automatic switching between heating and cooling modes.
- Built-In Condensate Pump: Automatically removes collected condensation with up to 20 feet of vertical lift.
- Six-Speed Fan Control: Automatic or manual fan-speed adjustment.
- Electronic Temperature Controls: Solid-state controller with a large LED display.
- Portable Construction: Heavy-duty swivel casters with front locking wheels.
- Washable Electrostatic Filters: Removable filters simplify routine maintenance.
- Safety Features: Includes high-pressure protection and a condensate overflow alert.
- Optional Accessories: Compatible with OceanAire ceiling panel kits, directional nozzle kits, return-air plenums, and duct adapters.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The OceanAire 2OACH6012 is not approved for outdoor operation.
Common Applications for the OceanAire 2OACH6012
Warehouses and Manufacturing Facilities
Warehouses and manufacturing environments often need supplemental cooling during warmer conditions and additional heating during colder months.
The OceanAire 2OACH6012 provides both functions in one portable system, making it useful for production areas, assembly operations, packaging stations, equipment rooms, and maintenance facilities.
With approximately 5 tons of cooling capacity and 53,500 BTU/hr of heating, this unit can serve applications requiring greater output than smaller commercial spot coolers.
Its mobile construction allows equipment to be repositioned as facility requirements change.
Server Rooms and Data Center Cooling
Server rooms, networking equipment, and telecommunications spaces generate significant heat during continuous operation.
The OceanAire 2OACH6012 can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 60,100 BTU/hr cooling capacity and optional duct accessories make it an option for larger equipment rooms when appropriately sized and installed.
Because the 2OACH6012 is air-cooled, condenser heat must be directed away from the conditioned area. Proper electrical service, airflow distribution, exhaust management, and condensate drainage are essential.
For more information, read our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Commercial Buildings and Institutional Facilities
The OceanAire 2OACH6012 can provide temporary heating and cooling for commercial offices, institutional facilities, equipment areas, and other suitable indoor workspaces.
Its single-phase electrical configuration may be useful in facilities that have compatible 208–230V service but lack three-phase power.
Emergency and Temporary HVAC Applications
Unexpected heating or cooling failures can interrupt business operations and expose equipment to undesirable temperatures.
The 2OACH6012 can provide temporary climate control during:
- HVAC system repairs and replacement
- Commercial renovations and maintenance
- Emergency cooling situations
- Seasonal supplemental heating
- Temporary industrial operations
Explore additional applications through our Temporary Climate Control Solutions page.
OceanAire 2OACH6012 Technical Specifications
| Specification | OceanAire 2OACH6012 |
|---|---|
| Cooling Capacity | 60,100 BTU/hr (5 Tons) |
| Heating Capacity | 53,500 BTU/hr |
| Equipment Type | Air-Cooled Portable Heat Pump |
| Power Supply | 208–230V / 60Hz / Single Phase |
| Rated Current | 32 Amps |
| Inrush Current | 178 Amps |
| Power Consumption | 6,000 Watts |
| Plug Type | NEMA 6-50P |
| Energy Efficiency Ratio | 10.0 EER |
| Compressor Type | Scroll |
| Compressor Horsepower | 5 HP |
| Compressor LRA | 158 Amps |
| Evaporator Airflow (High) | 1,950 CFM |
| Condenser Airflow | 2,200 CFM |
| Evaporator Fan Motor | 1 HP |
| Condenser Fan Motor | 1 HP |
| Refrigerant | R-410A (Referenced Configuration) |
| Refrigerant Charge | 80 oz |
| Condensate Pump | Built-In Automatic |
| Condensate Pump Lift | Up to 20 Feet Vertical |
| Cooling Ambient Range | 65°F–105°F |
| Heating Ambient Range | 40°F–85°F |
| Dimensions (W × D × H) | 28.2″ × 41″ × 54.2″ |
| Net Weight | 485 lbs |
| Air Filters | Washable Electrostatic |
| Fan Controls | Automatic / Manual, 6 Speeds |
| Temperature Controls | Automatic Heating/Cooling Changeover |
| Mobility | Swivel Casters with Front Locks |
| Outdoor Use | Not Approved |
| Warranty | 1-Year Product / 5-Year Total Compressor Coverage |
Specifications reflect the published R-410A model documentation and may change. Confirm refrigerant, electrical requirements, and equipment configuration against the unit nameplate and current manufacturer literature before installation.
Installation and Electrical Requirements
The OceanAire 2OACH6012 operates on 208–230V / 60Hz single-phase electrical power.
Unlike the 2OACH6032 and 2OACH6034, which require three-phase power, the 2OACH6012 is specifically designed for single-phase applications.
The published electrical specifications include:
- Rated Current: 32 Amps
- Inrush Current: 178 Amps
- Power Consumption: 6,000 Watts
- Plug Type: NEMA 6-50P
The NEMA 6-50P plug requires a compatible receptacle and properly rated electrical circuit.
OceanAire recommends a dedicated circuit with appropriate time-delay fuses or circuit breakers.
Electrical requirements should be confirmed against the current equipment nameplate before installation.
Heating and Cooling Operation
The 2OACH6012 provides both heating and cooling through its refrigeration-based heat pump system.
The electronic controller supports automatic changeover between operating modes.
Published operating ranges include:
- Cooling: 65°F–105°F
- Heating: 40°F–85°F
The unit is intended for indoor operation only.
Condenser Exhaust and Ventilation
The OceanAire 2OACH6012 uses an air-cooled condenser.
During cooling, heat removed from the conditioned space is discharged through a separate condenser-air stream.
For effective cooling, this heat must be directed away from the conditioned area.
Optional ceiling panel kits, discharge adapters, and return-air plenums can support appropriate ducting arrangements.
Condenser airflow requirements may differ depending on whether the unit is operating in heating or cooling mode.
Built-In Condensate Pump
The OceanAire 2OACH6012 includes an automatic condensate pump with up to 20 feet of vertical lift.
The built-in pump reduces the need for manual condensate management during extended cooling operation.
Collected condensation should be directed to an appropriate drainage location.
An additional external condensate pump is generally unnecessary for standard installations.
Optional Accessories for the OceanAire 2OACH6012
OceanAire offers several manufacturer-specified accessories for the 2OACH6012. These can improve air distribution, condenser exhaust routing, and installation flexibility.
OceanAire 16-Inch Ceiling Panel Kit — CK-16
The CK-16 ceiling panel kit is designed for discharging condenser air through an appropriate suspended ceiling installation.
The kit includes a 16-inch diameter, 8-foot flexible duct and a compatible ceiling panel.
It can be useful for commercial buildings, server rooms, and equipment areas where an appropriate overhead exhaust path is available.
The receiving ceiling space must be suitable for condenser heat and airflow.
Manufacturer Part Number: CK-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Dual 8-Inch Nozzle Kit — 2NK-3
The optional 2NK-3 nozzle kit provides two 8-inch directional air outlets.
This accessory helps direct cooled or heated air toward individual workstations, industrial equipment, or other designated areas.
Manufacturer Part Number: 2NK-3
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — DEP-16
The DEP-16 return-air plenum supports applications requiring ducted return air to the evaporator.
This accessory can provide installation flexibility when the heat pump is positioned away from the conditioned area.
Manufacturer Part Number: DEP-16
Contact Climate Control Solutions for pricing and availability.
OceanAire 16-Inch Discharge Duct Adapter — 2DDA-16
The 2DDA-16 discharge duct adapter supports applications requiring additional condenser discharge ducting.
It provides a connection for compatible 16-inch flexible ducting.
The correct duct length, airflow arrangement, and manufacturer installation requirements should be confirmed before ordering.
Manufacturer Part Number: 2DDA-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — DCP-5
The DCP-5 condenser return-air plenum is designed for installations requiring controlled airflow to the condenser inlet.
This accessory is useful for specialized temporary HVAC arrangements where condenser return air must be ducted.
Manufacturer Part Number: DCP-5
Contact Climate Control Solutions for pricing and availability.
VentFlex 16-Inch × 25-Foot Flexible Ducting
Climate Control Solutions offers 16-inch diameter flexible ducting for compatible commercial HVAC applications.
The ducting can be paired with an appropriately selected adapter where permitted by OceanAire’s installation requirements.
Confirm the connection, allowable length, temperature rating, and airflow restrictions before ordering.
Browse Additional HVAC Accessories
Why Choose the OceanAire 2OACH6012?
The OceanAire 2OACH6012 combines high-capacity heating and cooling in a commercial-grade portable HVAC system.
Its 208–230V single-phase operation makes it especially useful for facilities requiring approximately 5 tons of cooling but without access to three-phase electrical service.
The built-in condensate pump, automatic heating/cooling changeover, washable filters, heavy-duty casters, and available ducting accessories provide additional versatility for temporary climate control.
Compare Other OceanAire Portable Heat Pumps
Climate Control Solutions supplies additional OceanAire heat pumps for different electrical requirements:
- OceanAire 2OACH6032 – 5-Ton Portable Heat Pump — 208–230V three-phase version.
- OceanAire 2OACH6034 – 5-Ton Portable Heat Pump — 460V three-phase version.
- Browse Portable Heat Pumps — Compare additional commercial portable heating and cooling equipment.
You can also explore OceanAire products for other available models.
Frequently Asked Questions About the OceanAire 2OACH6012
How many BTUs does the OceanAire 2OACH6012 provide?
The 2OACH6012 delivers 60,100 BTU/hr of cooling capacity and 53,500 BTU/hr of heating capacity.
Can the 2OACH6012 both heat and cool?
Yes. The 2OACH6012 is a portable heat pump that provides both heating and cooling through its refrigeration system.
What electrical power does the 2OACH6012 require?
The unit operates on 208–230V / 60Hz single-phase electrical power and uses a NEMA 6-50P plug.
Does the 2OACH6012 require three-phase power?
No. The 2OACH6012 is specifically designed for single-phase operation. OceanAire offers separate three-phase models, including the 2OACH6032 and 2OACH6034.
Does the 2OACH6012 use a standard household outlet?
No. The unit requires a compatible 208–230V circuit and NEMA 6-50 receptacle. It cannot connect to a standard 115V household outlet.
Does the 2OACH6012 require condenser exhaust ducting?
The unit uses an air-cooled condenser and requires proper condenser heat rejection. Depending on the installation, compatible exhaust ducting or a ceiling panel kit may be required.
What size ceiling kit does the 2OACH6012 use?
OceanAire identifies the CK-16 ceiling panel kit as compatible with the 2OACH6012.
What other accessories are available?
Manufacturer-listed options include the 2NK-3 nozzle kit, DEP-16 evaporator return-air plenum, 2DDA-16 discharge duct adapter, and DCP-5 condenser return-air plenum.
Does the 2OACH6012 include a condensate pump?
Yes. The unit includes a built-in automatic condensate pump with up to 20 feet of vertical lift.
Can the 2OACH6012 cool a server room?
Yes. It can provide temporary or supplemental cooling for suitable server rooms when properly sized and installed with appropriate electrical service, condenser exhaust management, and condensate drainage.
Is the 2OACH6012 approved for outdoor operation?
No. OceanAire specifies that the 2OACH6012 is not approved for outdoor use.
What refrigerant does the 2OACH6012 use?
The referenced model-specific specification sheet lists R-410A refrigerant. Customers should confirm the refrigerant in their particular production unit because newer OceanAire R-454B documentation is also available.
What is the warranty on the OceanAire 2OACH6012?
OceanAire provides a 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OACH6012 from Climate Control Solutions
Climate Control Solutions supplies OceanAire portable heat pumps, industrial spot coolers, and commercial climate control equipment nationwide.
Whether you need one 2OACH6012 for a manufacturing facility or multiple units for a temporary HVAC project, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, and bulk-order quotes.
