OceanAire 2OACH3632: 3-Ton Portable Heat Pump & Spot Cooler
$7,500.00
Quick Quote Request
Buy Direct & Save
"*" indicates required fields
The OceanAire 2OACH3632 3-Ton Portable Heat Pump delivers 36,050 BTU/hr of cooling and 32,500 BTU/hr of heating for manufacturing facilities, warehouses, server rooms, and commercial applications. Its 208–230V three-phase configuration provides year-round heating and cooling in one portable unit.
Key Specifications:
- Cooling Capacity: 36,050 BTU/hr (3 Tons)
- Heating Capacity: 32,500 BTU/hr
- Electrical: 208–230V / Three Phase
- Plug: NEMA L15-30P
- Airflow: 1,200 CFM
- Condensate: 5-Gallon Tank (Pump Optional)
Optional Accessories:
16″ Ceiling Kit (CK-16) | Dual 8″ Nozzle Kit (2NK-3) | Condensate Pump (UPK-230)
Nationwide shipping available. Contact us for pricing and availability.

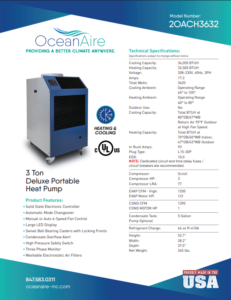

Resources and Downloads
The OceanAire 2OACH3632 3-Ton Portable Heat Pump delivers 36,050 BTU/hr of cooling and 32,500 BTU/hr of heating for commercial and industrial environments requiring temporary or supplemental climate control. Designed for dependable spot heating and cooling, this portable heat pump is ideal for manufacturing facilities, warehouses, server rooms, equipment rooms, and commercial buildings.
Operating on 208–230V / 60Hz three-phase power with a NEMA L15-30P locking plug, the 2OACH3632 combines commercial-grade heating and cooling in one mobile unit. It features a 3 HP scroll compressor, 1,200 CFM of conditioned airflow, electronic temperature controls, washable filters, and a 5-gallon internal condensate tank.
Whether you need emergency cooling during HVAC maintenance, supplemental heating for an industrial workspace, or temporary temperature control for a commercial project, the OceanAire 2OACH3632 provides year-round flexibility.
Key Features of the OceanAire 2OACH3632
- 36,050 BTU/hr Cooling Capacity: Delivers approximately 3 tons of cooling for commercial and industrial applications.
- 32,500 BTU/hr Heating Capacity: Provides supplemental heating for warehouses, workstations, equipment rooms, and commercial spaces.
- 208–230V Three-Phase Operation: Designed for facilities equipped with compatible three-phase electrical service.
- NEMA L15-30P Plug: Uses a locking three-phase electrical connection.
- 3 HP Scroll Compressor: Commercial-grade compressor for heating and cooling applications.
- High-Capacity Airflow: Provides 1,200 CFM of conditioned airflow and 1,390 CFM of condenser airflow.
- Automatic Heating and Cooling Changeover: Electronic controls support automatic switching between operating modes.
- 5-Gallon Condensate Tank: Collects moisture produced during operation.
- Optional Condensate Pump: Compatible with OceanAire’s UPK-230 pump kit for automatic condensate removal.
- Six-Speed Fan Control: Automatic fan adjustment with manual override.
- Electronic Temperature Controls: Solid-state controller with a large LED display.
- Portable Industrial Design: Heavy-duty swivel casters with front locking wheels.
- Washable Electrostatic Filters: Removable filters simplify cleaning and maintenance.
- Safety Features: Includes a high-pressure safety switch, condensate tank alert, and three-phase monitoring.
- Manufacturer Warranty: 1-year limited product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Indoor use only. The OceanAire 2OACH3632 is not approved for outdoor operation.
Common Applications for the OceanAire 2OACH3632
Warehouses and Manufacturing Facilities
Warehouses and manufacturing facilities often require additional cooling during warmer conditions and supplemental heating during colder months.
The OceanAire 2OACH3632 provides both functions in one portable unit, making it useful for production workstations, assembly areas, maintenance facilities, equipment rooms, and packaging operations.
Its 3-ton cooling capacity and optional directional airflow accessories allow conditioned air to be delivered toward selected areas without necessarily conditioning an entire building.
Server Rooms and Data Center Cooling
Server rooms, telecommunications equipment, and networking facilities generate significant heat during operation.
The OceanAire 2OACH3632 can provide temporary or supplemental cooling during HVAC maintenance, equipment upgrades, or unexpected cooling failures.
Its 36,050 BTU/hr cooling capacity makes it an option for equipment rooms requiring more cooling than smaller portable spot coolers can provide.
Because the unit is air-cooled, condenser heat must be managed and directed away from the conditioned area. Cooling-load calculations, electrical compatibility, airflow distribution, and condensate management should be reviewed before installation.
Learn more in our Best Portable Spot Coolers for Server Rooms in 2026 guide.
Commercial Buildings and Institutional Facilities
The 2OACH3632 can provide temporary heating or cooling for commercial offices, institutional buildings, maintenance departments, and other suitable indoor workspaces.
Its mobile construction is useful during planned HVAC maintenance, building renovations, and temporary facility operations.
Emergency and Temporary HVAC Applications
Unexpected heating or cooling failures can interrupt operations and expose equipment to undesirable temperatures.
The OceanAire 2OACH3632 can support temporary climate control during HVAC repairs, equipment replacement, commercial renovations, and seasonal heating or cooling projects.
Explore additional applications through our Temporary Climate Control Solutions page.
OceanAire 2OACH3632 Technical Specifications
| Specification | OceanAire 2OACH3632 |
|---|---|
| Cooling Capacity | 36,050 BTU/hr (Approximately 3 Tons) |
| Heating Capacity | 32,500 BTU/hr |
| Equipment Type | Air-Cooled Portable Heat Pump |
| Power Supply | 208–230V / 60Hz / Three Phase |
| Rated Current | 17.2 Amps |
| Inrush Current | 93 Amps |
| Power Consumption | 3,620 Watts |
| Plug Type | NEMA L15-30P |
| Energy Efficiency Ratio | 10.0 EER |
| Compressor Type | Scroll |
| Compressor Horsepower | 3 HP |
| Compressor LRA | 77 Amps |
| Evaporator Airflow (High) | 1,200 CFM |
| Condenser Airflow | 1,390 CFM |
| Evaporator Fan Motor | 1/3 HP |
| Condenser Fan Motor | 1 HP |
| Refrigerant | R-410A |
| Refrigerant Charge | 66 oz |
| Condensate Tank | 5 Gallons |
| Condensate Pump | Optional — UPK-230 |
| Cooling Ambient Range | 65°F–105°F |
| Heating Ambient Range | 40°F–85°F |
| Dimensions (W × D × H) | 28.2″ × 37″ × 52.7″ |
| Net Weight | 365 lbs |
| Air Filters | Washable Electrostatic |
| Fan Controls | Automatic / Manual, 6 Speeds |
| Temperature Controls | Automatic Heating/Cooling Changeover |
| Mobility | Swivel Casters with Front Locks |
| Outdoor Use | Not Approved |
| Warranty | 1-Year Product / 5-Year Total Compressor Coverage |
Specifications reflect OceanAire’s published R-410A model. Rated cooling and heating performance depends on the manufacturer’s test conditions. Verify current equipment specifications before installation.
Installation and Electrical Requirements
The OceanAire 2OACH3632 operates on 208–230V / 60Hz three-phase electrical power.
The unit uses a NEMA L15-30P locking plug, requiring a compatible receptacle and appropriately rated electrical circuit.
Published electrical specifications include:
- Rated Current: 17.2 Amps
- Inrush Current: 93 Amps
- Power Consumption: 3,620 Watts
- Plug Type: NEMA L15-30P
OceanAire recommends a dedicated electrical circuit with appropriate time-delay fuses or circuit breakers.
Customers should verify electrical service and follow the current equipment nameplate and installation instructions.
Heating and Cooling Operation
The 2OACH3632 provides heating and cooling through its heat pump refrigeration system.
Its electronic controller supports automatic changeover between operating modes.
Published operating ranges include:
- Cooling: 65°F–105°F
- Heating: 40°F–85°F
The unit is designed for indoor use and is not approved for outdoor operation.
Condenser Exhaust and Ventilation
The OceanAire 2OACH3632 uses an air-cooled condenser.
During cooling, heat removed from the conditioned space is discharged through a separate condenser-air stream.
For effective cooling, this heat must be directed away from the conditioned area rather than allowed to recirculate.
Optional ceiling panel kits, discharge duct adapters, and return-air plenums provide installation flexibility.
The correct condenser airflow arrangement should follow the manufacturer’s instructions for the selected heating or cooling mode.
Condensate Management
The 2OACH3632 includes a 5-gallon internal condensate tank.
Collected moisture accumulates in the tank, and a condensate alert indicates when attention is required.
For applications requiring automatic condensate removal, OceanAire offers the optional UPK-230 condensate pump kit.
This accessory is useful when frequent manual emptying would be inconvenient.
Optional Accessories for the OceanAire 2OACH3632
OceanAire offers several manufacturer-specified accessories for the 2OACH3632. These support directional airflow, ducted return air, condenser exhaust, and condensate removal.
OceanAire 16-Inch Ceiling Panel Kit — CK-16
The CK-16 ceiling panel kit helps route condenser discharge air through a suitable suspended ceiling installation.
This accessory can be useful for server rooms, commercial buildings, and equipment areas where an appropriate overhead exhaust path is available.
The receiving ceiling space must be suitable for the discharged heat and airflow.
Manufacturer Part Number: CK-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Dual 8-Inch Nozzle Kit — 2NK-3
The 2NK-3 nozzle kit provides two 8-inch directional outlets.
This accessory allows conditioned air to be directed toward industrial equipment, workstations, or localized areas requiring additional heating or cooling.
Manufacturer Part Number: 2NK-3
Contact Climate Control Solutions for pricing and availability.
OceanAire Evaporator Return-Air Plenum — DEP-16
The DEP-16 return-air plenum supports installations where return air must be ducted back to the evaporator.
This can be useful when the heat pump is positioned away from the conditioned space.
Manufacturer Part Number: DEP-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Discharge Duct Adapter — 2DDA-16
The 2DDA-16 discharge adapter supports compatible extended duct arrangements.
It provides an option for routing discharge air through appropriate flexible ducting.
Duct size, length, airflow restrictions, and compatibility should be confirmed for the installation.
Manufacturer Part Number: 2DDA-16
Contact Climate Control Solutions for pricing and availability.
OceanAire Universal Condensate Pump Kit — UPK-230
The optional UPK-230 condensate pump provides automatic removal of collected condensation.
This accessory can reduce manual tank emptying during extended cooling applications.
Manufacturer Part Number: UPK-230
Contact Climate Control Solutions for pricing and availability.
OceanAire Condenser Return-Air Plenum — DCP-5
The DCP-5 condenser return-air plenum supports installations requiring ducted airflow to the condenser inlet.
This accessory may be useful for specialized temporary HVAC setups.
Manufacturer Part Number: DCP-5
Contact Climate Control Solutions for pricing and availability.
16-Inch × 25-Foot Flexible Ducting
Climate Control Solutions offers 16-inch flexible ducting for compatible commercial HVAC applications.
This duct can be paired with the appropriately selected OceanAire adapter where the manufacturer’s installation requirements permit.
Confirm the connection, temperature rating, allowable duct length, and airflow restrictions before ordering.
Browse Additional HVAC Accessories
Why Choose the OceanAire 2OACH3632?
The OceanAire 2OACH3632 combines 36,050 BTU/hr of cooling and 32,500 BTU/hr of heating in one commercial-grade portable heat pump.
Its 208–230V three-phase power configuration makes it suitable for industrial and commercial facilities with compatible electrical service.
With a 5-gallon condensate tank, automatic heating and cooling controls, washable filters, and optional ducting accessories, the 2OACH3632 provides flexibility for temporary and supplemental climate control.
Compare Other OceanAire Portable Heat Pumps
Climate Control Solutions offers additional heat pumps with different electrical requirements and cooling capacities:
- OceanAire 2OACH3612 – 3-Ton Portable Heat Pump — 208–230V single-phase version.
- OceanAire 2OACH3634 – 3-Ton Portable Heat Pump — 460V three-phase version.
- OceanAire 2OACH6032 – 5-Ton Portable Heat Pump — Higher-capacity heating and cooling with 208–230V three-phase operation.
Browse All Portable Heat Pumps
Frequently Asked Questions About the OceanAire 2OACH3632
How many BTUs does the OceanAire 2OACH3632 provide?
The 2OACH3632 delivers 36,050 BTU/hr of cooling and 32,500 BTU/hr of heating capacity.
Does the 2OACH3632 both heat and cool?
Yes. The 2OACH3632 is a portable heat pump that provides heating and cooling through its refrigeration system.
What electrical power does the 2OACH3632 require?
The unit operates on 208–230V / 60Hz three-phase power and uses a NEMA L15-30P locking plug.
Can the 2OACH3632 operate on single-phase power?
No. The 2OACH3632 requires three-phase power. The separate 2OACH3612 model is available for compatible single-phase applications.
Is a 460V version available?
Yes. OceanAire also offers the 2OACH3634 for facilities with 460V three-phase electrical service.
Does the 2OACH3632 require condenser exhaust ducting?
The unit uses an air-cooled condenser and requires appropriate condenser heat rejection. Depending on the installation, compatible exhaust ducting or a ceiling panel kit may be needed.
What size ceiling kit does the 2OACH3632 use?
OceanAire lists the CK-16 ceiling panel kit as compatible with this model.
Does the 2OACH3632 include a condensate pump?
No. The standard model includes a 5-gallon condensate tank. The UPK-230 pump kit is available separately.
Can the 2OACH3632 cool a server room?
Yes. It can provide temporary or supplemental server-room cooling when the cooling load, electrical service, condenser exhaust, airflow, and condensate requirements are appropriate.
Is the 2OACH3632 approved for outdoor use?
No. OceanAire specifies that it is not approved for outdoor operation.
What refrigerant does the 2OACH3632 use?
The referenced manufacturer specifications list R-410A. Confirm the refrigerant on the current equipment nameplate before servicing or ordering refrigerant-related components.
What warranty does the OceanAire 2OACH3632 include?
OceanAire provides a 1-year limited full-product warranty plus 4 additional years of compressor coverage, subject to manufacturer terms.
Buy the OceanAire 2OACH3632 from Climate Control Solutions
Climate Control Solutions supplies OceanAire portable heat pumps, commercial spot coolers, and industrial heating and cooling equipment nationwide.
Whether you need one 2OACH3632 for a manufacturing facility or multiple units for a temporary HVAC project, our team can assist with equipment selection, electrical requirements, compatible accessories, and shipping arrangements.
Contact Climate Control Solutions for current pricing, availability, and bulk-order quotes.
